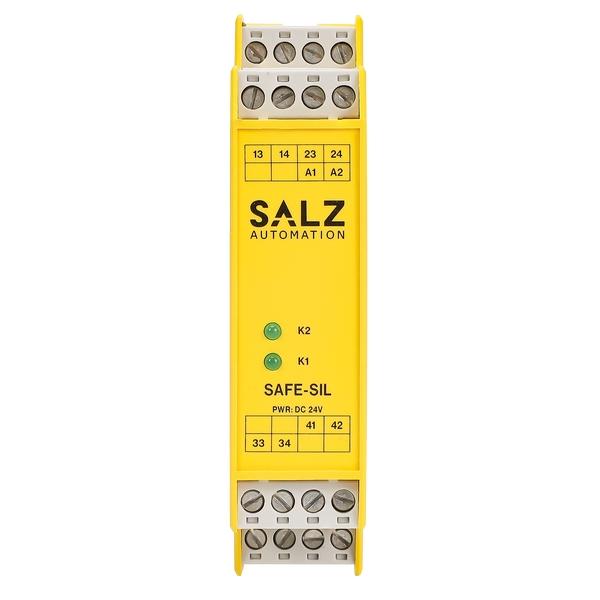

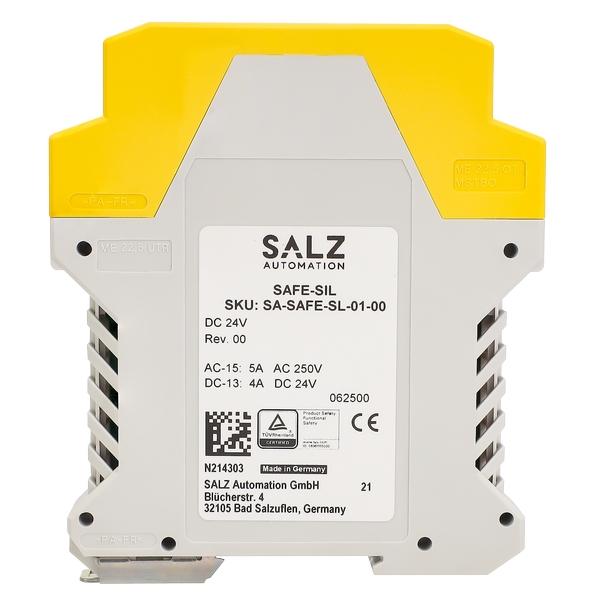

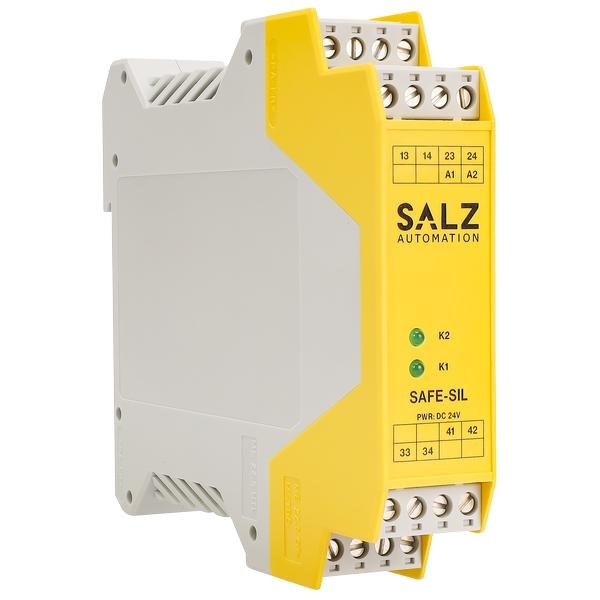

SAFE-SIL Coupling relay and contact expansion
Key attributes
| Brand | Switchgear parts |
| Model NO. | SAFE-SIL Coupling relay and contact expansion |
| Rated frequency | 50/60Hz |
| Series | SAFE-SIL |
Product descriptions from the supplier
SAFE-SIL is a universal safety coupling device with three safety relay contacts for safety switches, certified by T Ü V Rheinland. SAFE-SIL can couple the safety signal output by pulse PIC to the field for current isolation and power adjustment, or it can be used as a contact extension for basic equipment. No feedback circuit is required. Its design complies with EN ISO 13849-1, EN 62061, and EN 61508.
Safety relay for coupling safe DCS outputs and contact expansion module
Function
3 safe relay contacts, 1 safe feedback contact, automatic start, up to SIL 3, 24 V DC, width: 22.5 mm
Features
3 N/O Safety Contacts
1 N/C Safe Contact
Safe Extension Module
Coupling Safe Signals
| Parameter | Specification |
|---|---|
| In compliance with | EN 60204-1; DIN EN ISO 13849-1; EN 62061; EN 50156-1; EN 746-2; IEC 61508 Parts 1-2 and 4-7; IEC 61511-1 |
| Operating voltage | DC 24 V +/- 10 % |
| Power consumption | Typ. 2 W |
| Safety contacts | 3 N/O |
| Auxiliary contacts | 1 N/C |
| Max. switching voltage | AC 250 V |
| Contact rating of safety contacts (13-14, 23-24, 33-34)
|
AC: 250 V, 2000 VA, 8 A for resistive load
|
| Max. total current through all 3 contacts | 15 A (13-14, 23-24, 33-34) |
| Contact rating of auxiliary contact | AC: 250 V, 500 VA, 2 A for resistive load
|
| Minimum contact load | 5 V, 10 mA |
| External fuses | 10 A gG (NO) |
| Contact rating of auxiliary contact | AC: 250 V, 500 VA, 2 A for resistive load
|
| Minimum contact load | 5 V, 10 mA |
| External fuses | 10 A gG (NO); 6 A gG (NC)
|
| Max. switch-on delay | < 30 ms |
| Max. switch-off delay | < 60 ms |
| Recovery time | < 500 ms |
| Max. line resistance at nominal voltage | 50 Ω |
| Wire width | 0.14 - 2.5 mm² |
| Tightening moment (Min./Max.) | 0.5 Nm/0.6 Nm |
| Contact material | AgSnO₂ |
| Service Life | mech. approx. 1×10⁷ |
| Rated impulse withstand voltage | 2.5 kV (control voltage/contacts) |
| Dielectric strength (EN 60664-1) | 6 kV between relays safety loops, control lines and internal logic |
| Rated insulation voltage | 250 V |
| Degree of pollution/Overvoltage category | 2/3 (EN 60664-1) |
| Protection | IP20 |
| Temperature range Ambient | -15 °C to +55 °C |
| Temperature range Storage | -15 °C to +85 °C |
| Max. altitude | ≤ 2000 m (above sea level) |
| Weight approx. | 150 g |
| Mounting DIN rail according to EN 60715 | TH35 |
