Digital Timer Switch THC 20-1C Weekly Programmable
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch THC 20-1C Weekly Programmable |
| Rated voltage | AC220V |
| Rated normal current | 25A |
| Rated frequency | 50/60Hz |
| Series | THC-20 |
Product descriptions from the supplier

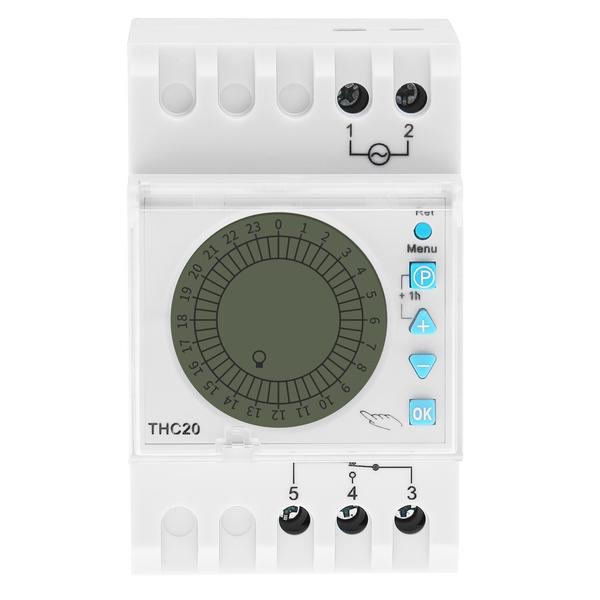

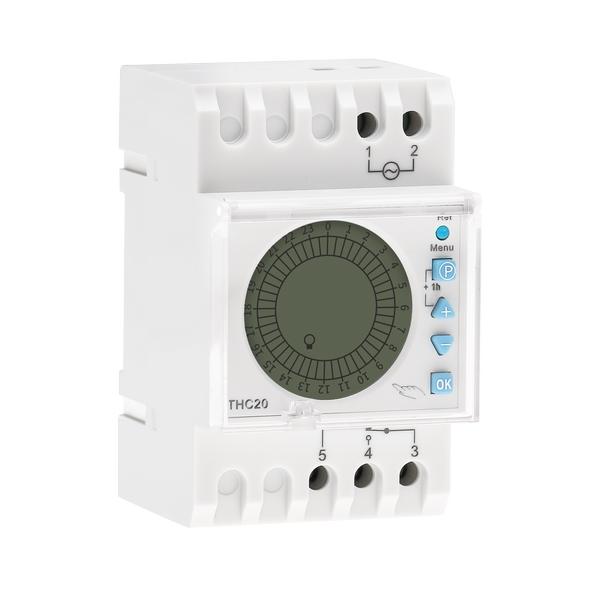

The THC-20 series timer is an electronic digital programmable timer that replaces mechanical ones. It has a small set time of 15 minutes and is very easy to operate. At the same time, the display screen of the THC-20 programmable timer adopts LED backlight, and the built-in battery allows it to display 24 hours a day. It can be lit up when operated by the keyboard and runs normally after a power outage, making it a cost-effective digital timer.
THC-20 Programmable Timer Product Features:
1. 24-hour time controller with DIN standard size and DIN35mm standard rail installation.
2. Replace mechanical methods with electronic ones.
3. 15 minutes is a small set time, and the operation is very easy.
4. 24-hour continuous display, LED backlight, illuminated during keyboard operation.
5. Equipped with a built-in battery, it will continue to operate as usual after a power outage.
Features
| ItemNo | THC20-1C 16A,THC20-1C 20A, THC20-1C 25A,THC20-1A 30A |
| Switching frequency | ≤1s/d(25℃) |
| Contact Capacity | THC20-1C 16A Resistive: 16A/250VAC(cosφ =1) THC20-1C 20A Resistive: 20A/250VAC(cosφ =1) THC20-1C 25A Resistive: 25A/250VAC(cosφ =1) THC20-1A 30A Resistive: 30A/250VAC(cosφ =1) |
| Electrical life | LCD |
| Mounting | DIN rail mounting |
| Voltage range | AC 220-240V 50Hz/60Hz(Other special voltages can be customized) |
| Timing error | AC 180-250V |
| Display | 4VA (max) |
| Power cornsumption | 48ON/48OFF |
| MEAS | 460×320×290mm |
| Relative humidity | 35-85%RH |
| Contact | 1NO+1NC/ 1NC |
| N.W | 17KG |
| G.W | 17.5KG |
| Control current | 16A,20A,25A,30A |
| Min.switching time | 15 min |
| Mechanical life | 10⁵tims (Rated load) |
| Temperature | 10~40℃ |
| QTY | 100PCS |
