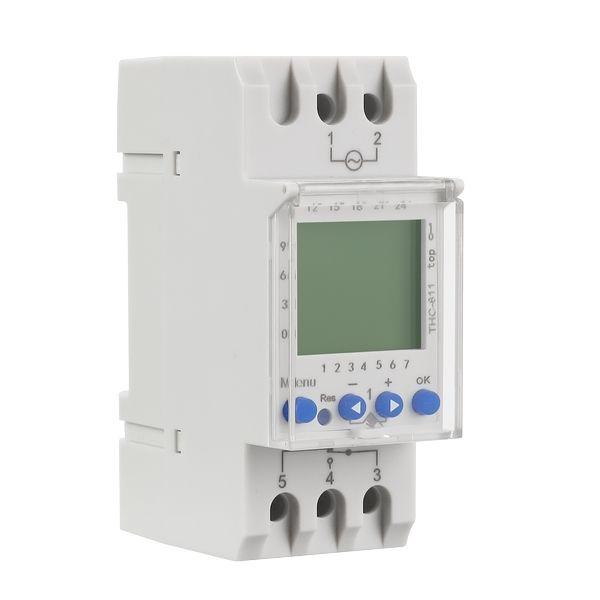

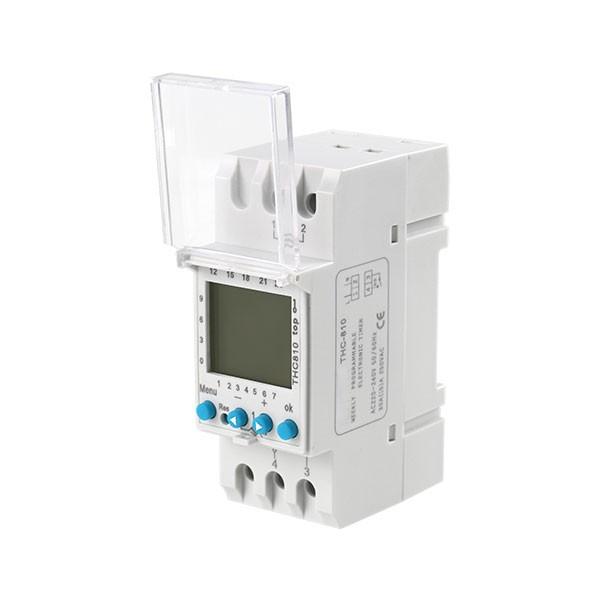

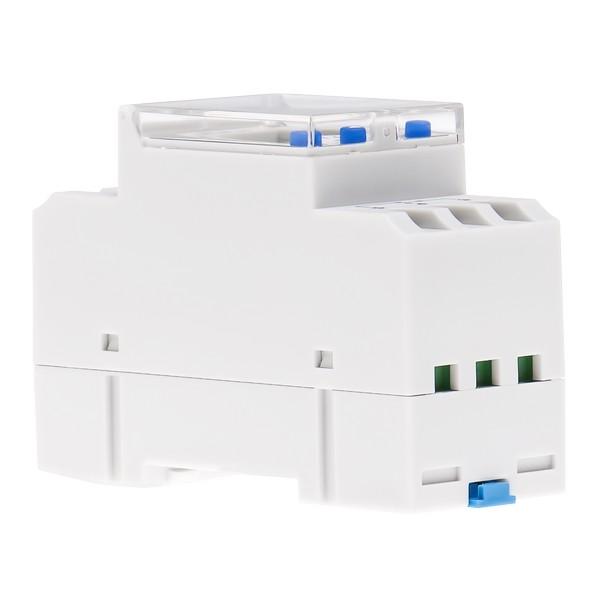

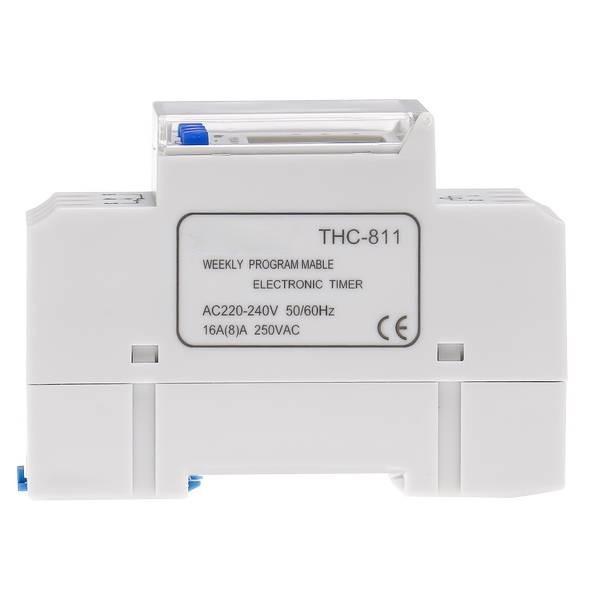

Digital Timer Switch THC 811 Weekly Programmable
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch THC 811 Weekly Programmable |
| Rated voltage | AC220V |
| Rated normal current | 16A |
| Rated frequency | 50/60Hz |
| Series | THC-811 |
Product descriptions from the supplier
The THC 811 programmable cycle timer is directly wired and has the characteristics of small size, low power consumption, wide operating temperature range, and strong anti-interference ability. It also has multiple time functions such as daylight saving time, sleep mode, automatic time adjustment, and countdown, as well as six languages that can meet the needs of different regions and ethnic groups, including English, French, German, Italian, Portuguese, and Spanish. Based on standard time, the timing accuracy in seconds makes the use of the THC 811 programmable cycle timer more convenient, and its built-in lithium battery can work continuously for about four years
Product Features
Can be directly wired, with small size and low power consumption.
Having multiple languages: including English, French, German, Italian, Portuguese, and Spanish.
Accurate positioning, with a time difference of no more than 1 second per day at room temperature (20 ℃ C).
The built-in lithium battery can provide power for about 4 years.
Environmental temperature: -10 ℃~+50 ℃
Using high-quality quartz impact timing, precise timing can be achieved
Features
| Item No | THC811 16A/20A/25A/30A | |
| Dimensions(mm) | 86x36x66 | |
| Full Timing Range | 24h 7days | |
| Rated Voltage | AC 220-240V 50Hz/60Hz (Other special voltages can be customized) | |
| Contact Capacity | 16A、20A、25A、30A、250V AC | |
| Contact Form | 1 changeover switch | |
| Accuracy | ≤1s/d (25℃) | |
| Display Munting Form |
LCD DIN RAIL |
|
| life | Electrical | ≥105 times |
| Mechanical | ≥107 times | |
| Ambient Temperature Min. switching time |
-10℃~+50℃ 1 min |
|
| Programmable | 44ON/44OFF | |
| Storage Battery | 3 YEARS | |
| Consumed power | 4VA | |
| QTY | 100PCs | |
| G.W | 18kg | |
| N.W | 17kg | |
| MEAS | 390×220×375mm | |
