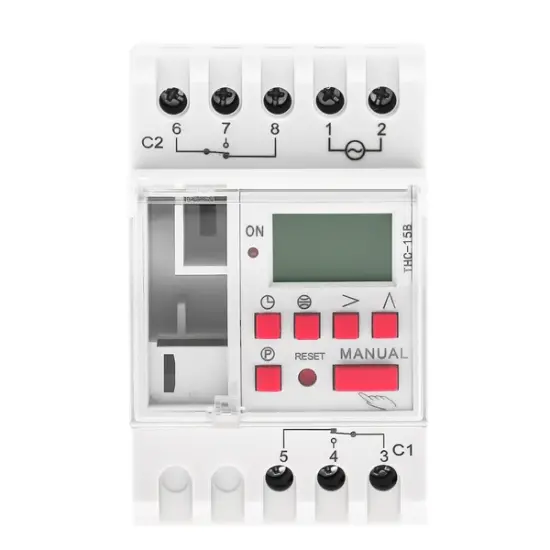

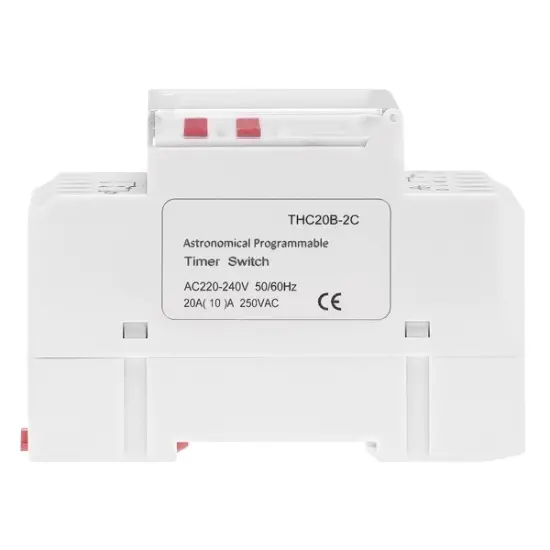

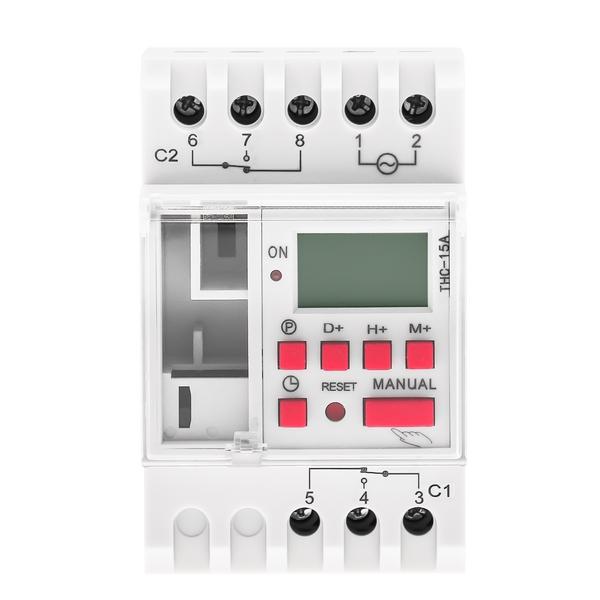

| Brand | Xinyouxiang |
| Model NO. | Digital Timer Switch THC 15A-2C Astronomical Timer |
| Rated voltage | AC220V |
| Rated normal current | 20A |
| Rated frequency | 50/60Hz |
| Series | THC-15A-2C |
The THC-15A/20A/30A series timer is equipped with 16 sets of time settings, which have functions such as error correction, power-off memory, and precision sensitivity. It can ensure stable product operation, precise timing control, and achieve intelligent cycling effect. Meanwhile, the THC-15A/20A/30A series editable timer is commonly used in places such as street lamps, light boxes, neon lights, production equipment, agricultural breeding, warehouse ventilation and dehumidification, automatic preheating, broadcasting and television equipment, etc. It has a wide range of applications and strong practicality, making it a cost-effective timer.
THC15A/20A/30A series editable timer product features:
1. With precision and sensitivity, the product can operate stably.
2. Equipped with power-off memory function.
3. It has error correction function.
4. There are 16 sets of adjustable times.
5. The product has a built-in battery that can run continuously after a power outage.

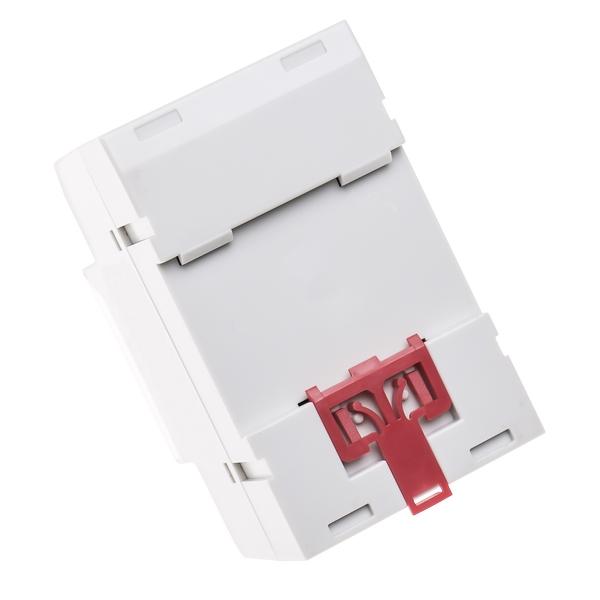

6. Installation of 35mm standard card rail.
ItemNo |
THC15A-2C 16A, 20A,25A,30A， THC15B-2C 16A, 20A,25A,30A |
Voltage range |
AC 220-240V 50Hz/60Hz(Other special voltages can be customized) |
Timing error |
AC 180-250V |
Switching frequency |
≤1s/d (25℃) |
Power consumption |
8ON+8OFF |
Display |
4VA (max) |
Electrical life |
LCD |
Mechanical life |
10⁵times (Rated load) |
Min. switching time |
1min |
Contact |
2NO+2NC/ 2NC |
Control current |
16A,20A,25A,30A |
Mounting |
DIN rail mounting |
Contact Capacity |
THC15A-2C 16A Resistive: 16A/250V AC(cosφ=1） THC15B-2C 16A Resistive: 16A/250V AC(cosφ=1） |
QTY |
100PCS |
G.W |
19KG |
N.W |
18.5KG |
MEAS |
460x320x290mm |
Temperature |
-10~40℃ |
Relative humidity |
35~85%RH |
The THC 15A-2C is a latitude-longitude driven dual-channel astronomical timer switch, compatible with AC 220-240V/50-60Hz voltage, with rated currents covering 16A/20A/25A/30A (resistive load). Its core function is to automatically calculate daily sunrise and sunset times by inputting the latitude and longitude of the installation location, realizing automatic circuit on/off with natural light. It also supports 80 groups of custom on/off programs, power failure memory (built-in lithium battery life ≥3 years), industrial-grade anti-interference, and DIN rail mounting. Its size fits distribution cabinets, widely used in municipal street lights, landscape lighting, agricultural aquaculture, etc.
The core functions and advantages focus on three dimensions: astronomical adaptation, dual-channel control, high reliability:
· Precise astronomical timing: Automatically matches sunrise and sunset times after entering latitude and longitude, intelligently adjusts with seasonal sunlight changes, no manual modification required;
· Dual-channel synchronous/independent control: 2 groups of contacts support synchronous (control the same load) or independent (control two loads) operation, adapting to multi-device scenarios;
Highly flexible programming: 80 custom programs can be superimposed with astronomical mode (e.g., "turn on lights 10 minutes before sunset"), minimum switching time 1 minute;
· Stable and durable: Built-in lithium battery ensures power failure memory; industrial-grade chip resists electromagnetic interference; operating temperature -10~40℃, adapting to complex environments.
