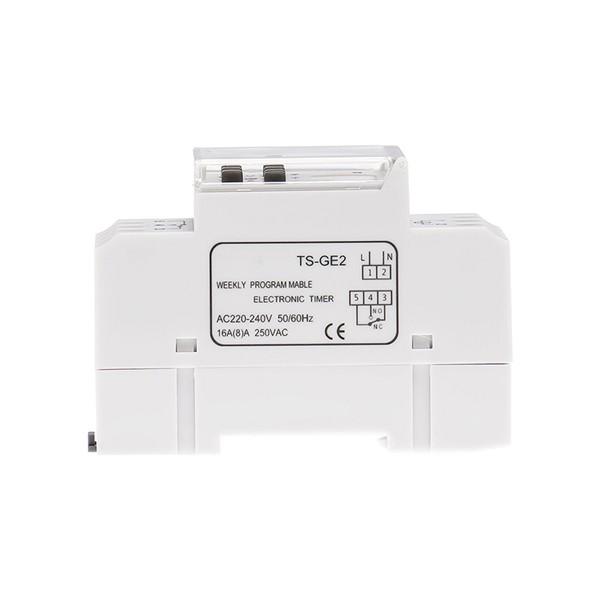

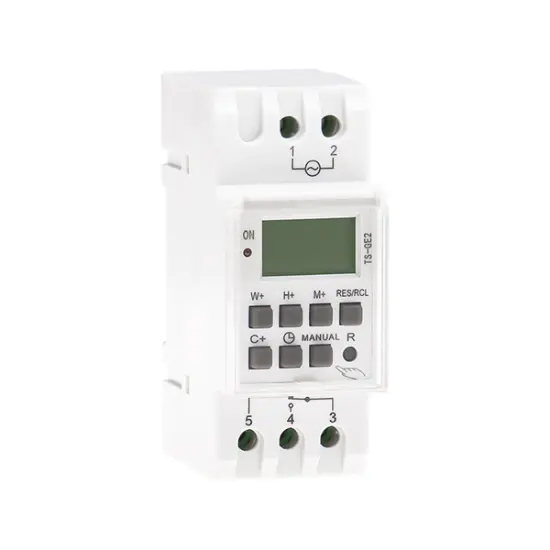

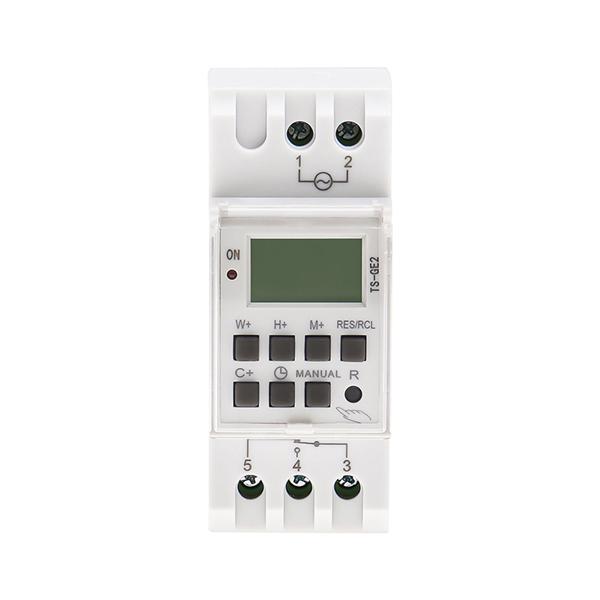

Digital Timer Switch TS-GE2 Programmable Periodic Timer
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch TS-GE2 Programmable Periodic Timer |
| Rated voltage | AC220V |
| Rated normal current | 16A |
| Rated frequency | 50/60Hz |
| Series | TS-GE2 |
Product descriptions from the supplier
The TS-GE2 programmable cycle timer can automatically turn on and off various electrical devices according to the user's set time, with high precision, strong anti-interference and other functions. It is often used in various occasions such as street lamps, light boxes, neon lights, production equipment, agricultural breeding, warehouse exhaust dehumidification, automatic preheating, broadcasting and television equipment, etc. It is a programmable cycle timer with high cost-effectiveness.
TS-GE2 Programmable Cycle Timer Product Features:
1. It has summer time and winter time functions.
2. It can automatically turn on and off the power of various electrical devices according to the time set by the user.
3. Built in lithium battery, it will continue to operate and display after power failure.
4. High precision can make product control more precise.
5. Industrial grade chip design can make product operation more stable.
6. Has strong anti-interference function.
Item No |
TS-GE2 16A/20A/25A/30A |
Operating Voltage |
AC 220-240V 50Hz/60Hz (Other special voltages can be customized) |
Power Consumption |
4.5VA |
Operating Temperature |
-10~+50℃ |
Accuracy |
≤1s/d (25℃) |
Power consumption |
8ON+8OFF |
Minimum Setting Range |
1Minuters |
Time Setting Range |
1 minute to 168 hours |
Contact Capacity |
TS-GE2 16A Resistive: 16A/250VAC(cosφ =1) |
Storage Battery |
3 YEARS |
Dimension |
81x36x66mm |
Weight |
125g |
QTY |
100PCS |
G.W |
18kg |
N.W |
17kg |
MEAS |
390x220x375mm |
Mounting |
DIN rail mounting |
The core functions and advantages focus on four dimensions: precise timing, flexible programming, stable reliability, and convenient adaptation:
·High-precision periodic timing: The timing range covers 1 minute ~ 168 hours with an accuracy of ±1 second/day, supporting daily and weekly cycles to meet short-term and long-term automatic control needs.
·Flexible programming and function expansion: Supports 8 groups of independent program settings for multi-period start-stop; built-in daylight saving/winter time switching function to automatically adapt to seasonal time changes.
·Power failure memory and high reliability: Equipped with a built-in lithium battery, retaining programs and time for ≥7 days after power off, and automatically executing preset programs after power recovery; industrial-grade anti-interference design adapts to complex electrical environments.

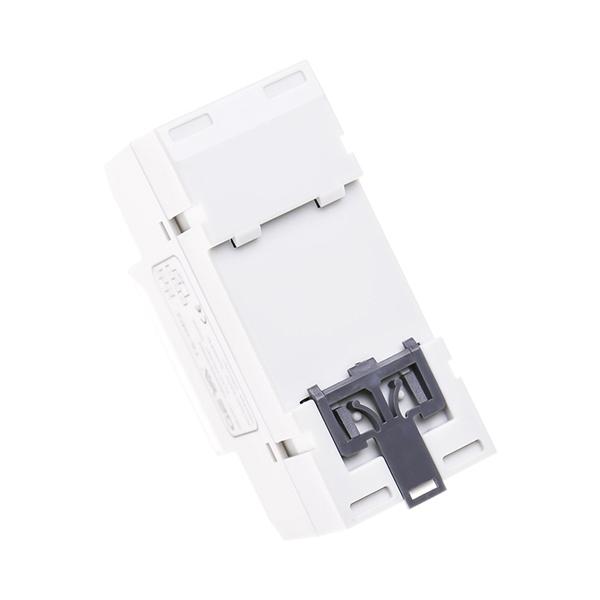

·Convenient installation and operation: 35mm DIN rail plug-and-play, compact size (81×36×66mm) to save power distribution space; the digital display is clear and intuitive, with simple key operation, allowing programming without professional technology.
The TS-GE2 is a DIN rail-mounted programmable periodic timer specially designed for automatic control scenarios, with core functions of automatically controlling circuit on/off according to preset programs. Compatible with AC 220V/240V voltage and 50/60Hz frequency, it supports a timing range of 1 minute ~ 168 hours (full week). Adopting 35mm standard DIN rail installation, it features 8 groups of programmable programs, daylight saving/winter time switching, 12/24-hour format conversion, and a built-in lithium battery for power failure memory (program retention ≥7 days after power off) with an accuracy of ±1 second/day. Equipped with a digital display and key operation, it is widely used in street lights, commercial lighting, agricultural aquaculture, production equipment and other scenarios to achieve unattended automatic control.
