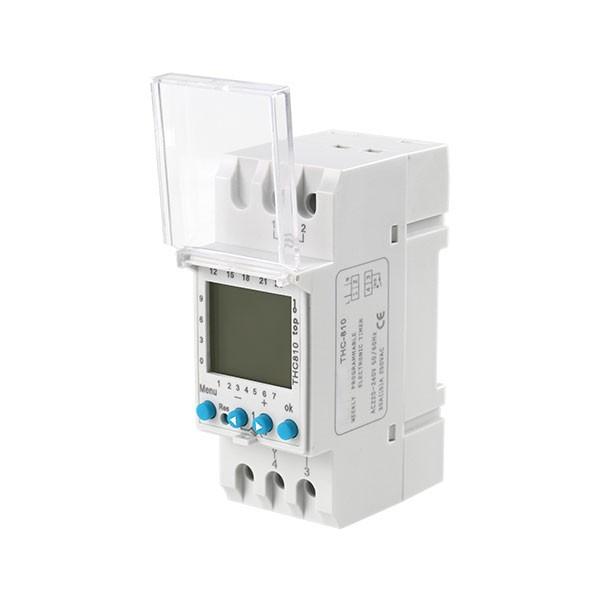

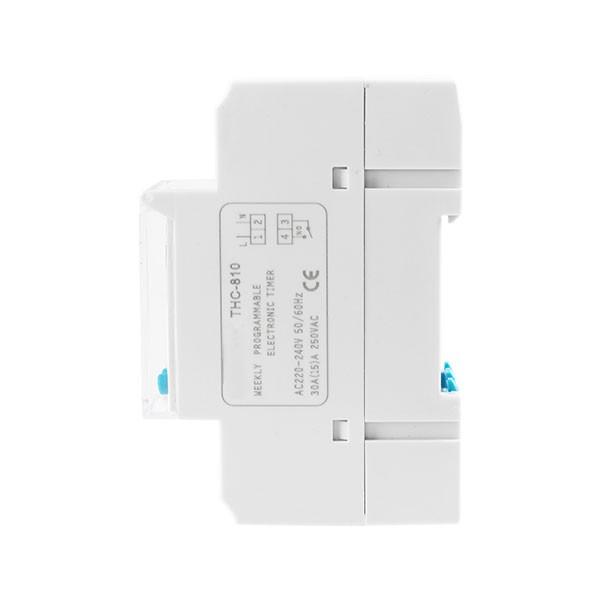

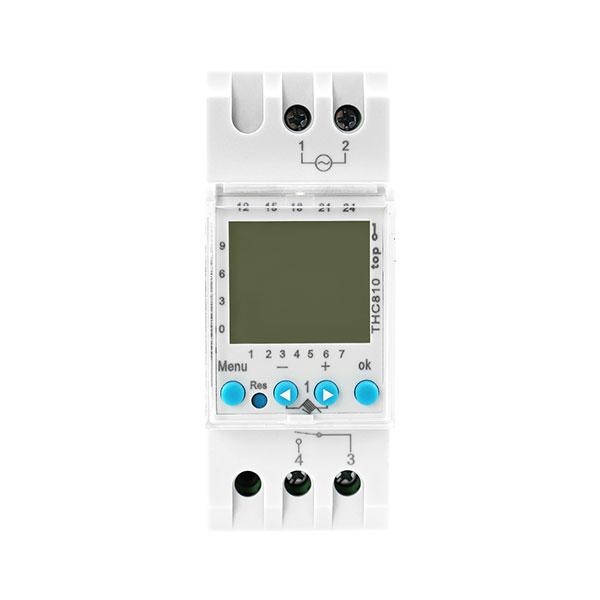

Digital Timer Switch THC 810 Weekly Programmable
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch THC 810 Weekly Programmable |
| Rated voltage | AC220V |
| Rated normal current | 16A |
| Rated frequency | 50/60Hz |
| Series | THC-810 |
Product descriptions from the supplier
THC810 is an editable timer that can be directly wired. It has the characteristics of small size, low power consumption, wide operating temperature range, and strong anti-interference ability. At the same time, the THC810 editable timer also has multiple functions such as daylight saving time, sleep mode, automatic time adjustment, and countdown.
THC-810 series editable timer product features:
1. The product can be directly wired.
2. The product has a small volume and low power.
3. The product has a wide working temperature range.
4. The product has strong anti-interference ability.
5. It has daylight saving time and sleep function.
6. It has automatic adjustment function and countdown function.
7. Has six languages, including English, French, German, Italian, Portuguese, and Spanish.
Features
| Item No | THC810 16A/20A/25A/30A | |
| Dimensions(mm) | 86× 36×66 | |
| Full Timing Range | 24h 7days | |
| Rated Voltage | AC220-240V 50Hz/60Hz(Other special voltages can be customized) | |
| Contact Capacity | 16A、20A、25A、30A、250VAC | |
| Contact Form | 1 changeover switch | |
| Accuracy | ≤1s/d(25℃) | |
| Display Mounting Form |
LCD DIN PAIL |
|
| Life | Electrical | ≥ 10⁵times |
| Mechanical | ≥ 107times | |
| Ambient Temperature Min. switching time |
-10℃~+50℃ 1 min |
|
| Programmable | 44ON/44OFF | |
| Storage Battery | 3YEARS | |
| Consumed power | 4VA | |
| QTY | 100PCS | |
| G.W | 18kg | |
| N.W | 17kg | |
| MEAS | 390×220×375mm | |
