GRT6-2T AC/DC 24-240V Double Time Delay Relay
Key attributes
| Brand | Wone Store |
| Model NO. | GRT6-2T AC/DC 24-240V Double Time Delay Relay |
| Rated frequency | 50/60Hz |
| Series | GRT6 |
Product descriptions from the supplier
Description
The GEYA GRT6-2T Double Time Delay Relay (AC/DC 24-240V) is a versatile timing control device designed to operate with both AC and DC power supplies ranging from 24V to 240V. Its dual delay functionality and wide time adjustment range (from 0.1 seconds to 10 days) make it ideal for managing complex timing sequences in industrial and commercial settings. With easy-to-use knob adjustments and clear LED indicators, this relay ensures precise control while preventing current surges, enhancing equipment safety and efficiency.
Product Highlight
Dual Delay Function: Integrates two independent delay-on relays for sequential control.
Wide Voltage Compatibility: Supports AC/DC 24-240V, adaptable to various power systems.
Extensive Time Range: Adjustable from 0.1 seconds to 10 days to suit diverse timing needs.
Simple Adjustment: Two knobs for selecting time units and fine-tuning percentages.
Status Indicators: LED lights for real-time monitoring of relay status.
Compact and Efficient: 18mm width, designed for DIN rail mounting, saves space in control panels.
Technical Parameters
Supply Voltage: AC/DC 24-240V
Time Range: 0.1 seconds to 10 days
Time Setting: Dual knobs (time unit + percentage adjustment)
Output: 2 SPDT relays
Mounting Type: DIN rail (35mm)
Dimensions: 90mm x 18mm x 65mm
Certifications: CE, RoHS
| Model | GRT6-2T |
| Function | 2x Delay ON |
| Supply terminals | A1-A2 |
| Voltage range | AC/DC 24-240V(50-60Hz) |
| Burden | AC 0.7-3VA/DC 0.5-1.7W |
| Voltage range | AC 230V(50-60Hz) |
| Power input | AC max.6VA/1.9W |
| Supply voltage tolerance | -15%;+10% |
| Supply indication | green LED |
| Time ranges | 0.1s-10days,ON,OFF |
| Time setting | potentionmeter |
| Time deviation | 10%-mechanical setting |
| Repeat accuracy | 0.2%-set value stability |
| Temperature coecient | 0.05% /℃,at=20℃(0.05%℉，at=68℉) |
| Output | 2×SPDT |
| Current rating | 10A/AC1 |
| Switching voltage | 250VAC/24VDC |
| Min.breaking capacity DC | 500mW |
| Output indication | red LED |
| Mechanical life | 1*107 |
| Electrical life(AC1) | 1*105 |
| Reset time | max.200ms |
| Operating temperature | -20℃ to +55℃（-4℉ to 131℉） |
| Storage temperature | -35℃ to +75℃（-22℉ to 158℉） |
| Mounting/DIN rail | Din rail EN/IEC 60715 |
| Protection degree | IP40 for front panel/IP20 terminals |
| Operating position | any |
| Overvoltage cathegory | III. |
| Pollution degree | 2 |
| Max.cable size（mm²） | solid wire max.1*2.5 or 2*1.5/with sleeve max 1*2.5（AWG 12） |
| Tightening torque | 0.4Nm |
| Dimensions | 90×18×64mm |
| Weight | S240-67g,A230-70g |
| Standards | EN 61812-1,IEC60947-5-1 |

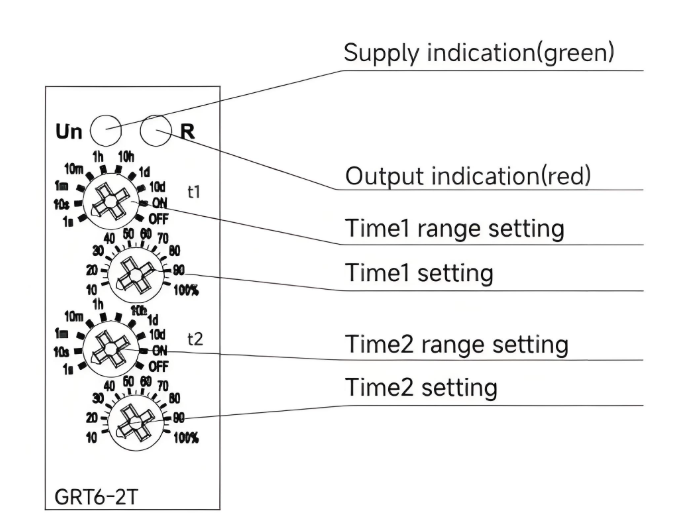

Panel Diagram

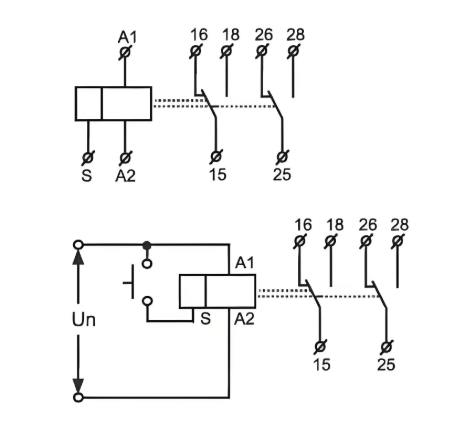

Wiring Diagram

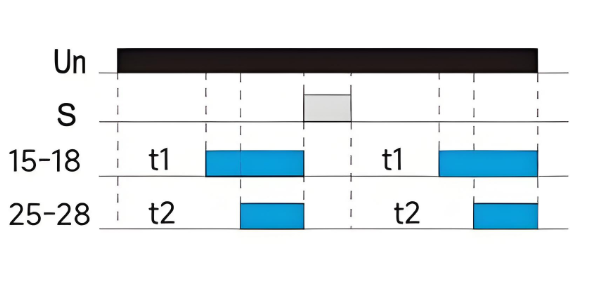

Function Diagram
