3 Phase Voltage Relay GRV8-03X to 08X

Application of GRV8-03X to 08X series three-phase voltage monitoring voltage relay products:
The GRV8-03X to 08X series is widely used in the following key areas due to its reliable monitoring performance and flexible adaptability:
1. Mobile devices and special vehicle power management:
To provide stable three-phase power monitoring for on-site engineering equipment, agricultural machinery (such as harvesters, tractors), refrigerated transport vehicles and other mobile equipment, ensuring safe and reliable operation in complex and changing power supply environments (such as generator power supply or temporary power access), and preventing equipment shutdown or damage caused by abnormal voltage.
2. Equipment rotation direction protection:
Accurately monitor the phase sequence of the three-phase power supply and quickly detect phase sequence errors (which may cause the motor to rotate in reverse)
Send control signals to effectively prevent mechanical damage, production accidents, or safety incidents caused by reverse operation of mechanical equipment.
3. Automatic Switching System (ATS) for Primary and Backup Power Supply:
In places that require high reliability power supply, such as data centers, hospitals, and critical production lines in factories, it is used to monitor the status of normal (primary) power supply and emergency (backup) power supply (such as generators). When the main power supply fails (such as voltage loss, undervoltage, overvoltage, phase loss), it can reliably trigger the signal to drive the switching device, seamlessly or briefly interrupt the load to switch to the backup power supply, ensuring power supply continuity.
4. Motor and power load protection:
Real time monitoring of the three-phase power supply for electric motors and other important power loads. In the event of a phase failure, it can immediately detect and output an alarm or cut off control signal, effectively preventing the motor from overheating and burning out due to single-phase operation, and protecting valuable equipment assets.
5. Industrial production lines and mechanical equipment protection:
Widely used in various industrial automation production lines, pumps, fans, compressors and other equipment, as a front-end voltage protection unit, to prevent equipment shutdown, production interruption or component damage caused by unstable grid voltage (overvoltage, undervoltage) or phase loss.

GRV8-03X to 08X series three-phase voltage monitoring type voltage relay product features:
1. High precision true effective value measurement:
By using true effective value measurement technology, accurate voltage measurement results (accuracy ≤ 1%) can be provided even under non sinusoidal voltage conditions containing harmonics, truly reflecting the state of the power grid.
2. Wide voltage adaptability and wiring flexibility:

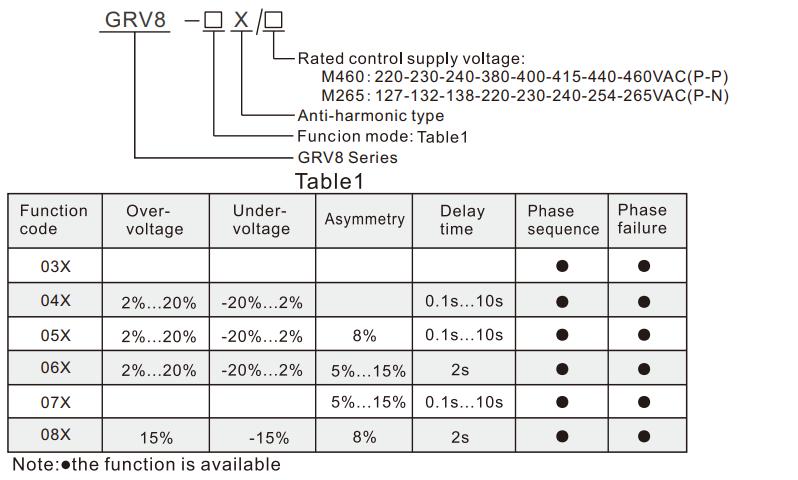

Provide 8 adjustable rated voltage levels that can adapt to standard grid voltages in different countries and regions around the world. Simultaneously supporting both 3-phase 3-wire and 3-phase 4-wire (3L/3N) wiring methods to meet diverse on-site requirements.
3. Excellent anti-interference performance:
The internal circuit has undergone professional anti harmonic design optimization, and has been strengthened for high interference industrial environments (such as near frequency converters and high-power rectification equipment), effectively suppressing harmonic interference and ensuring the stability and reliability of monitoring.

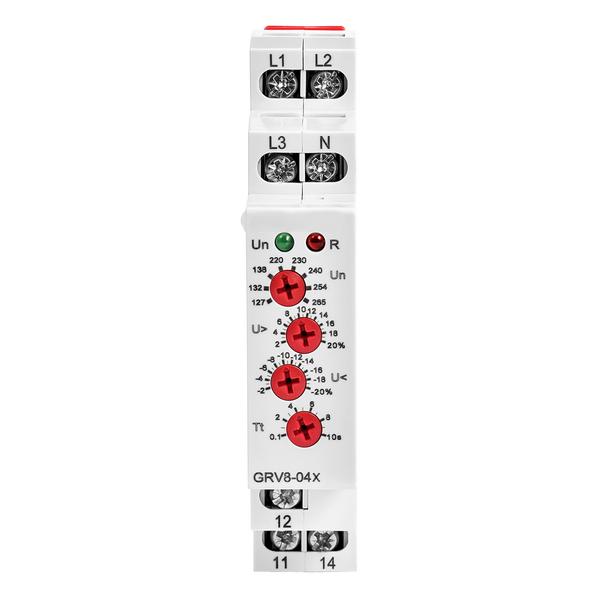

4. Intuitive status indication:
Equipped with high brightness LED indicator lights, it clearly displays the current working status of the relay (such as power supply, faults, alarms, etc.), making it easy for on-site personnel to quickly identify the system's operating status.

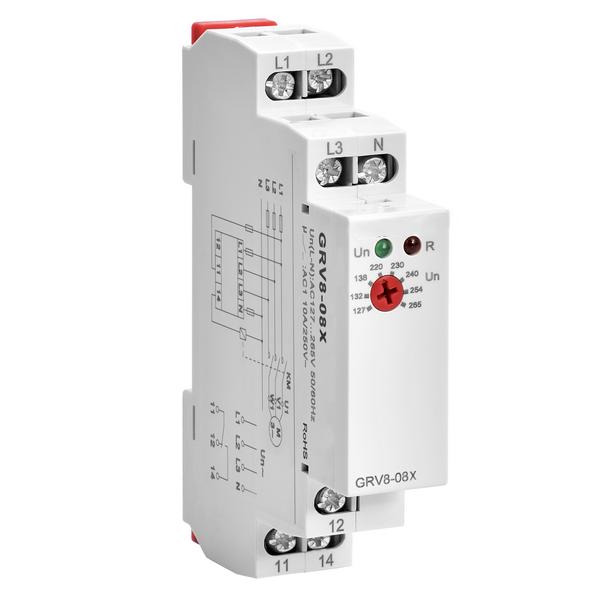

5. Ultra compact design:
Adopting an ultra-thin design with a width of only 18mm, it greatly saves installation space inside the control cabinet. Supports standard 35mm DIN rail installation, with easy and quick installation and disassembly, suitable for high-density wiring applications.
