Transformer Automatic core stacking machine
Key attributes
| Brand | Switchgear parts |
| Model NO. | Transformer Automatic core stacking machine |
| size | 820*820*250mm |
| Thickness | 0.18- 0.35mm |
| Tolerance at the same length level | ≤0.5mm |
| Tolerance at the same width level | ≤0.5mm |
| Side limb length | 320 ~ 800mm |
| Yoke Length | 420 ~ 800mm |
| Series | RN |
Product descriptions from the supplier
Application

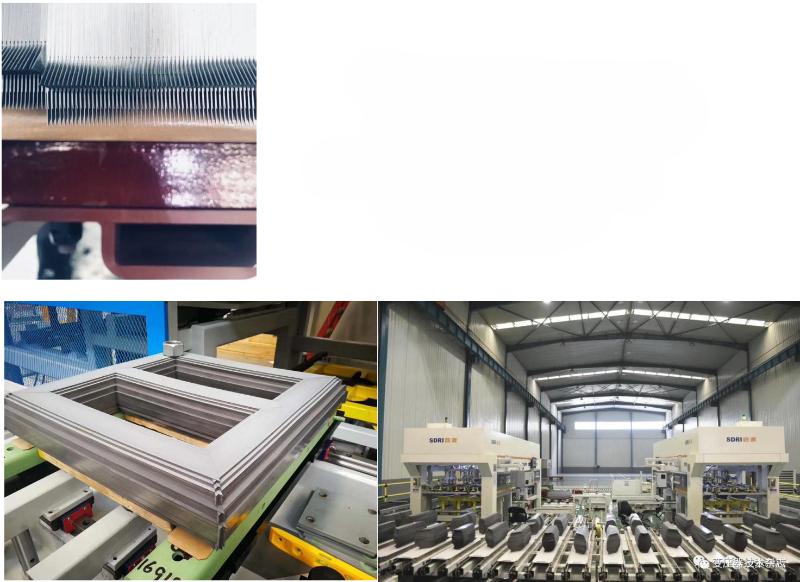

It's used for transformer core stackingsheets with or without hole is available. Suitable for step-lap lamination.
Machine Features
Omron motion control technology and SMC vacuum grab technology.
High efficiency, low noise.
Vision sensor system, automatic alarming and emergency stopWith auto width adjusting system for different sheet width.Rapid sheet positioning and grabbing.Stacking efficiency is improved by simultaneous stacking of yoke, center, limbRemote control system
The core adaptation object of the transformer core automatic laminating machine is the laminated core structure transformer, and it is also compatible with the segmented stacking process of partially wound core and amorphous alloy core transformers. The specific applicable transformer types are as follows: low-voltage distribution transformers (10kV, 6kV, 3kV, etc.), medium voltage power transformers (35kV, 66kV, etc.), high-voltage power transformers (110kV, 220kV, etc.), ultra-high voltage power transformers (330kV, 500kV, etc.), oil immersed distribution transformers, oil immersed power transformers, epoxy resin cast dry-type transformers
Technical description

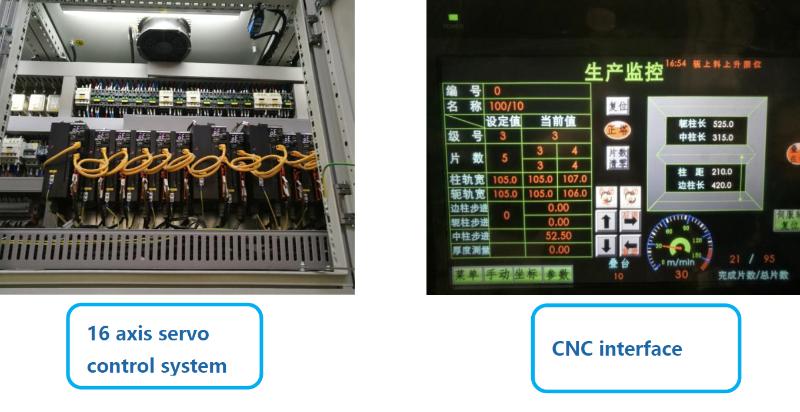

16 axis servo control system + SDRI lamination control software

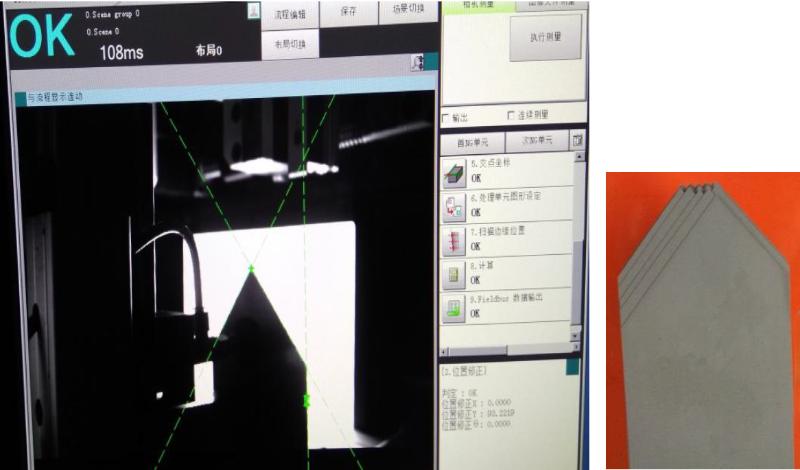

Vision sensor system,automatic alarming andemergency stop.
Visual system, automatic lubrication
Online detection, video monitoring
Laser positioning, auto grabbing
Safety protection
Technical parameter
No. |
Items |
Parameter |
1 |
Tolerance at the same length level |
≤0.5mm |
2 |
Tolerance at the same width level |
≤0.5mm |
3 |
Thickness |
0.18- 0.35mm |
4 |
Side limb length |
320 ~ 800mm |
5 |
Yoke Length |
420 ~ 800mm |
6 |
Max. Core dimension |
820x820x250mm |
The safety functions include three core mechanisms: automatic alarm, emergency stop, and safety protection, which are combined with online detection and video monitoring to reduce operational risks; In terms of operational convenience, it supports remote control systems, equipped with CNC interfaces and production monitoring functions (which can view real-time parameters such as the number of completed pieces and execution time), and also has auxiliary functions such as automatic lubrication, manual coordinate parameter adjustment, and 100/10 reset, adapting to the flexible operation needs of industrial scenes.
In terms of precision assurance, it is equipped with a 16 axis servo control system+SDRI laminating control software, Omron motion control technology, visual sensor system, and laser positioning technology, which enables the same length/width tolerance to be ≤ 0.5mm. In terms of efficiency improvement, SMC vacuum grasping technology is used to achieve fast positioning and grasping, and the "yoke+middle+column synchronous laminating" design is combined with an automatic width adjustment system to adapt to different sheet widths, greatly improving work efficiency.
The core adaptation scenario is transformer core lamination operation, compatible with both perforated and non perforated silicon steel sheets, and specifically supports step lap lamination process, which can meet the lamination requirements of specific size ranges of cores (side column length 320-800mm, yoke length 420-800mm, maximum core size 820x820x250mm).
