For use in automatic conductor winding machines for transformers
Key attributes
| Brand | Switchgear parts |
| Model NO. | For use in automatic conductor winding machines for transformers |
| Winding speed | 0-375 rpm |
| Load | 1000kg |
| Flat wire size | 14mmx4mm |
| Conductor diameter | 1-4mm |
| Outer diameter of winding | 600mm |
| Clearance between chuck and tailstock | 1200mm |
| Series | WZR |
Product descriptions from the supplier
Application

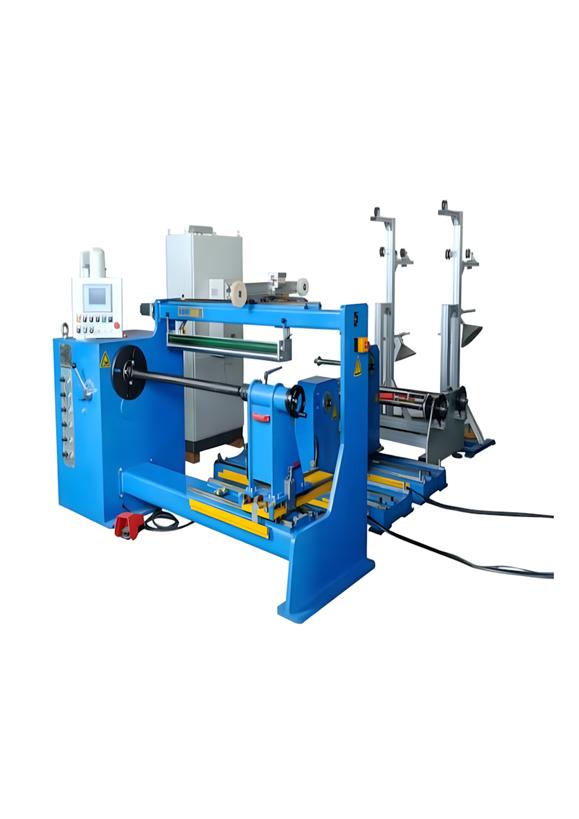

The automatic wire guiding winding machine isan advanced specialized machine for small andmiddle size distribution transformer coils. The mass production process of transformer coils includes dry-type transformers, oil immersed transformers, special transformers, and so on
Features
|
No. |
Items |
WZR-1/1200 |
WZR-2/1600 |
|
1 |
Max load |
1000 kg |
2000 kg |
|
2 |
Outer diameter of winding |
600 mm |
600 mm |
|
3 |
Wire ranking direction |
Double direction |
Double direction |
|
4 |
Clearance between chuck and tailstock |
1200 mm |
1600 mm |
|
5 |
Winding speed |
0-375 rpm |
0-375 rpm |
|
6 |
Round wire diameter |
1-4mm |
1-4mm |
|
7 |
Flat wire size |
Max.4×14mm |
Max.4×14mm |
The practical significance includes: ① The bidirectional wiring function can adapt to coil designs with different winding directions, without the need to adjust equipment layout, improving processing flexibility; ② Compatible with round wire (1-4mm) and flat wire (up to 4 × 14mm), covering the mainstream wire specifications of small and medium-sized distribution transformer coils, enterprises do not need to separately configure equipment for different wires, reducing equipment investment costs and reducing changeover adjustment time.
The core differences are concentrated in the maximum load and the distance between the chuck and the tailstock: WZR-1/1200 has a load of 1000kg and a distance of 1200mm; WZR-2/1600 has a load of 2000kg and a distance of 1600mm. Selection suggestions: ① Production of small distribution transformer coils (load ≤ 1000kg, coil length adapted to a distance of 1200mm), choose WZR-1/1200; ② Produce medium-sized distribution transformer coils (load ≤ 2000kg, coil length adapted to 1600mm spacing), choose WZR-2/1600.
The core application scenario is the processing of coils for small and medium-sized distribution transformers. The operational advantages include: ① easier coil loading and unloading process, reducing the labor intensity of manual handling and fixation; ② Easy clamping of insulation paper reduces auxiliary operation time; ③ The overall operation is more convenient, without the need for complex parameter debugging, and the threshold for getting started is lower.
