GR8 Intermediate Relay AC/DC 12V,24V,48V,110V,AC230V
Key attributes
| Brand | Switchgear parts |
| Model NO. | GR8 Intermediate Relay AC/DC 12V,24V,48V,110V,AC230V |
| Voltage range | 12V、24V |
| Series | GR8 |
Product descriptions from the supplier

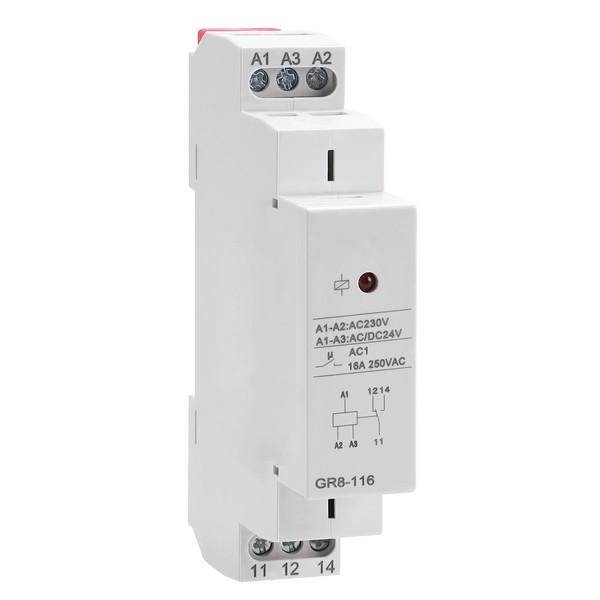

The GR8 series modular intermediate relay adopts an innovative compact design, suitable for industrial automation, power control, and equipment manufacturing fields. Its modular structure supports flexible combination, which can enhance the signal expansion and load switching capabilities of the control system, and meet diverse electrical connection requirements.
GR8 series modular intermediate relay product features:
1. Wide voltage adaptation
Compatible with AC/DC 12V, 24V, 48V, 110V, and AC 220V rated voltages to meet different electrical environment requirements.
2. Three phase control capability
The GR8-316 model is designed specifically for three-phase circuits and supports multi-phase load switch control.
3. Visualization of work status
Built in high brightness LED indicator light, real-time display of relay on/off status, convenient for equipment operation monitoring.
4. Compact structure
Only 18mm ultra-thin width, supporting 35mm standard card rail installation, effectively saving control cabinet space.
5. Flexible contact expansion
Modular design supports the free combination of multiple sets of contacts, enhancing the system's signal distribution capability.
GR8 series modular intermediate relay product features:
1. Load capacity expansion
Used to amplify control signal driving capability and reliably switch medium current loads.
2. Multi channel signal allocation
By increasing the number of contact groups, single channel control signals can be used to manage and control multiple execution devices.
3. Industrial automation system
PLC output signal expansion
Isolation and conversion of instrument and meter signals
Construction of equipment interlocking control circuit
4. Power control scenario
Signal transfer in distribution cabinet
Expansion of protection device interface
Three phase motor control (GR8-316 model)
5. Building electrical field
Multi channel signal management relay for building automation systems, lighting control circuits, and ventilation equipment

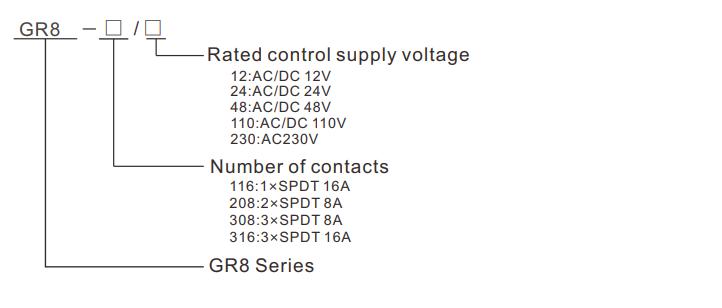

| Model | GR8-116 | GR8-208 | GR8-308 | GR8-316 |
| Supply terminals | A1-A2 | A1-A2 | ||
| Voltage range | AC/DC 12V、24V、48V、110V | AC/DC 12V、24V | ||
| Burden | AC.max 12VA/DC.max1.9W | |||
| Supply terminals | A1-A2-A3 | A1-A2 | ||
| Voltage range | AC230V(A1-A2),AC/DC24V(A1-A3) | AC230V | ||
| Burden | AC.max 12VA/DC.max1.9W | AC.max 6VA | ||
| Supply voltage tolerance | -15%;+10% | |||
| Max.chargeover time | 40ms | |||
| Output | ||||
| Number of contact | 1×SPDT | 2×SPDT | 3×SPDT | 3×SPDT |
| Current rating | 16A/AC1 | 8A/AC1 | 16A/AC1 | |
| Switching voltage | 250VAC/24VDC | |||
| Min.breaking capacity DC | 500mW | |||
| Output indication | Red LED | |||
| Mechanical life | 1*107 | |||
| Electrical life(AC1) | 1*105 | |||
| Reset time | max.200ms | |||
| Operating temperature | -20℃ to+55℃（-4℉to131℉） | |||
| Storage temperature | -35℃ to+75℃（-22℉to158℉） | |||
| Mounting/DIN rail | Din rail EN/IEC 60715 | |||
| Protection degree | IP40 for front panel/IP20 terminals | |||
| Operating position | any | |||
| Overvoltage cathegory | III. | |||
| Pollution degree | 2 | |||
| Max.cable size(mm²） | solid wire max.1×2.5or 2×1.5/withsleeve max.1×2.5(AWG12） | |||
| Dimension | 90×18×64mm | |||
| Weight | 44g/54g | 50g/60g | 72g/82g | 86g/96 |
