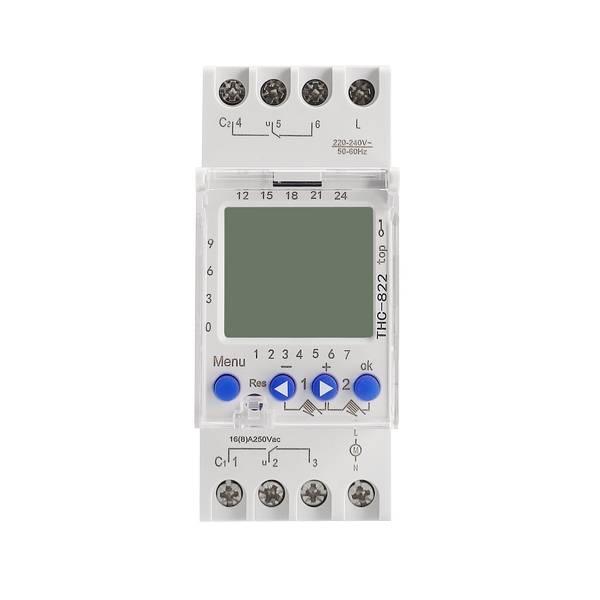

Digital Timer Switch THC 822 16A Weekly Programmable
Key attributes
| Brand | Switchgear parts |
| Model NO. | Digital Timer Switch THC 822 16A Weekly Programmable |
| Rated voltage | AC220V |
| Rated normal current | 16A |
| Rated frequency | 50/60Hz |
| Series | THC-822 |
Product descriptions from the supplier
The THC822 series periodic timer can be directly wired, with characteristics such as small size, low power consumption, wide operating temperature range, and strong anti-interference ability. At the same time, the THC822 series periodic timer also has multiple functions such as daylight saving time, sleep mode, automatic time adjustment, and countdown.
THC822 Periodic Timer Product Features:
1. The TOP control contacts are 2 channels and 2 groups (2C).
2. 44 programs can be set within 24 hours or a week, with a small set time interval of 1 minute.
3. 44 pulse programs can be set within 24 hours or a week, with a small set time interval of 1 second.
4. 18 loop programs can be set within 24 hours or a week.
5. Has strong anti-interference function.
6. Built in battery, it will continue to operate and display after power failure.
7. The language system of six countries includes English, French, German, Italian, Portuguese, and Spanish.
8. LCD display screen, directly displaying year/month/day/week/time.
9. 35mm standard rail installation.
Features
| Item No | THC822 | |
| Dimensions(mm) | 86x36x66 | |
| Full Timing Range | 24h/7days random switching, holiday program, pulse, and cycle program | |
| Rated Voltage | AC220V 50/60HZ 85%~110% | |
| Contact Capacity | 16(10)A、250VAC | |
| Contact Form | 2 changeover switch | |
| Accuracy | ≤1s/d (25℃) | |
| Display Munting Form |
LCD DIN RAIL |
|
| life | Electrical | ≥105 times |
| Mechanical | ≥107 times | |
| Ambient Temperature Min. switching time |
-10℃~+50℃ 1 min |
|
| Programmable | 44ON/44OFF | |
| Storage Battery | 3 YEARS | |
| Consumed power | 7.5VA | |
| QTY | 100PCs | |
| G.W | 18kg | |
| N.W | 17kg | |
| MEAS | 390×220×375mm | |
