Description

DC molded case circuit breakers are suitable for circuits with a rated operating voltage up to DC1500V, a rated insulation voltage of 1500V, a rated impulse withstand voltage of 12kV, and a rated current ranging from 10A to 630A. They can be installed either vertically or horizontally and are resistant to environments containing humid air, salt spray, oil mist, mold, and the like.

Product Features

• The GYM7DC series DC molded case circuit breaker (hereinafter referred to as "circuit breaker") has a rated operating voltage up to DC1500V, a rated insulation voltage of 1500V, a rated impulse withstand voltage of 12kV, and a rated current ranging from 10A to 630A.

• This circuit breaker can be installed vertically (i.e., vertical installation) or horizontally (i.e., horizontal installation).

• This circuit breaker complies with the following standards:

• IEC 60947-1 and GB/T 14048.1 (General Rules)

• IEC 60947-2 and GB/T 14048.2 (Low-Voltage Circuit Breakers)

Technical Parameter

Normal working conditions

• For altitudes of 2000m and below, the capacity reduction coefficient at high altitude is shown in the volume reduction coefficient table;

• Storage temperature -40°C ~+75°C;

• The relative humidity of the air at the installation site should not exceed 50% at the temperature of +40°C, and it can be at lower temperaturesHigher relative humidity, e.g. 90% at 20°C. Measures should be taken against occasional condensation due to temperature changes;

• TH (three-proof type) meets the requirements of GB/T2423.4 and GB/T2423.18 standards, and can withstand humid air, salt spray,the influence of oil mist and mold;

• The inclination is ±22.5°;

• In a medium without explosion hazard, and the medium is not enough to corrode the metal and destroy the insulation of gas and conductive dust Place;

•  In a place where there is no rain and snow.

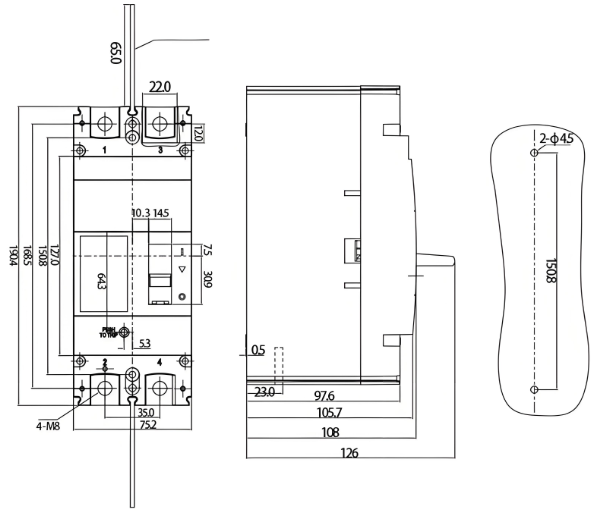

Product Dimensions
