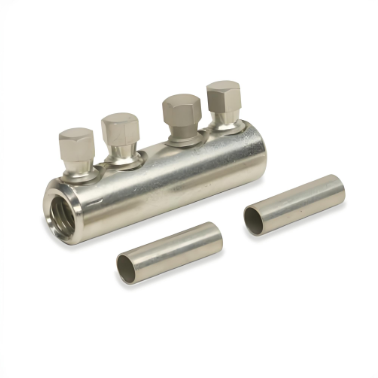

Cable connector mechanical

Product Introduction

The connectors are used for jointing conductors of up to 1 kV cables. Because of the shear head bolt construction no crimping tools are needed. The required torque is achieved by tightening the bolt until it breaks off. The connectors are longitudinally water tight and they are suitable both for aluminium and copper conductors, solid and stranded, sector shaped and circular. The core insulation may be as well plastic as paper.

Features

• Shear Head Technology for Tool-Free Installation：Adopts shear head design that eliminates the need for compression tools. Simply tighten until the shear head breaks off—ensures proper torque, reduces installation time, and lowers tool procurement/maintenance costs.

• Wide Conductor Compatibility：Versatile for multiple conductor types: solid, stranded, sector-shaped, and round. Adapts to diverse wiring scenarios (e.g., industrial cables, building wiring) without requiring different connectors for each conductor shape.

• Dual Material Support (Al & Cu Conductors)：Works seamlessly with both aluminum (Al) and copper (Cu) conductors. Avoids galvanic corrosion risks via compatible materials, ensuring reliable connections in mixed-conductor power systems (common in LV/MV distribution).

• Consistent Mechanical Stability：Mechanical fastening (via shear head torque control) delivers uniform clamping force, preventing loose connections from vibration or thermal expansion. Maintains low contact resistance for long-term current transmission efficiency.

Main Parameters
