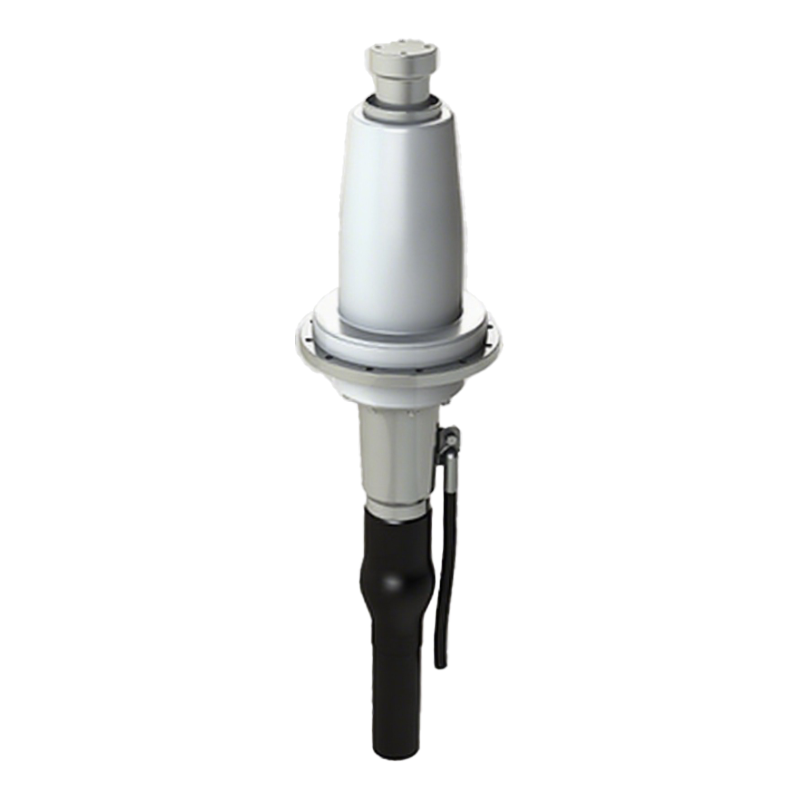

66-138 kV GIS cable terminal transformer terminal (470 structure)

Name: 66-138 kV GIS cable terminal transformer terminal (470 structure)
Brand: Zhejiang Xinyouxiang Electric Technology Co., Ltd.
SKU: 2183
Availability: InStock

Zhejiang Xinyouxiang Electric Technology Co., Ltd.

2yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	Xinyouxiang
Model NO.	66-138 kV GIS cable terminal transformer terminal (470 structure)
Rated voltage	138kV
Series	YJZGG

Description

470 structural design:
The length of the outgoing pole is 470mm, designed specifically for connecting GIS equipment and transformers, suitable for fully enclosed composite electrical appliances (GIS) or oil immersed transformers
Adopting a spring compression stress cone structure, pre compressed on the conical wall of the epoxy sleeve to avoid poor contact caused by aging of the stress cone
Electrical performance:
The rated voltage covers 66kV~138kV, suitable for cable cross-sections of 240~2500mm ² (66kV) or 240~2500mm ² (110kV)
Fully dry structure, no need for insulation casting agent, eliminates the risk of oil leakage, local discharge capacity ≤ 5pC

Technical Specifications

Voltage class (kV)	138	110	66
Maximum operating voltage (kV)	145	126	72.5
Terminal weight (kg)	≈75	≈70	≈68
