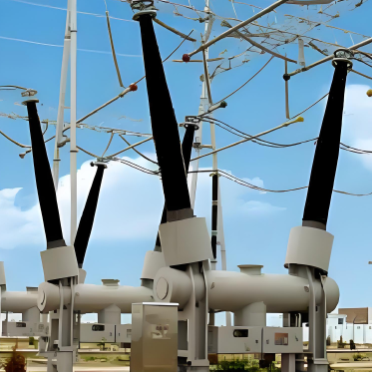

Nigeria 40.5kV dead tank SF₆ breakers: T2 copper, 210mm phase spacing, modular design. 85% failure cut, 99.9% gas recovery. Transmission substation.
As Africa's most populous nation, Nigeria's power grid has long faced challenges including unstable electricity supply, aging infrastructure, and poor environmental adaptability.
In its high-voltage transmission and distribution networks, traditional oil circuit breakers struggle to meet growing demand due to frequent maintenance and vulnerability to humid climates (e.g., reduced insulation performance during rainy seasons).
International case studies, such as South Africa and Southeast Asia, demonstrate that adopting Dead Tank SF₆ Circuit Breakers effectively resolves grid reliability issues in high-pollution and high-humidity environments, providing actionable insights for Nigeria.
Deployment of Dead Tank SF₆ Circuit Breakers, specifically designed for 40.5kV high-voltage systems. These Dead Tank SF₆ Circuit Breakers support altitudes below 4,000 meters, adapting to Nigeria's diverse terrains ranging from plateaus to coastal areas.
Integration of T2 copper contacts (purity ≥99.95%) with SF₆ gas insulation (0.03–0.04MPa) significantly enhances arc-quenching capability and corrosion resistance, addressing metal component rusting during rainy seasons.
Phase spacing optimized to 210mm, extending air and creepage distances to improve insulation performance in sandy/dusty environments. Similar designs have succeeded in Middle Eastern grid upgrades.
Modular design: Drawing on outdoor pole-mounted Dead Tank SF₆ Circuit Breaker solutions, detachable semi-circular clamps and rubber strip fixation simplify installation while preventing bolt corrosion.
Localized training and spare parts: Collaboration with international agencies (e.g., DILO) to provide SF₆ gas recovery training and establish regional spare parts centers, reducing maintenance downtime.
Compact design: Dead Tank SF₆ Circuit Breakers reduce footprint by 30%, ideal for substation expansions in Nigeria's densely populated urban areas.
Extended lifespan and low maintenance: With a mechanical lifespan of 2,000 operations, epoxy resin insulation, and spring-operated mechanisms (CT14 type), lifecycle costs are minimized. Similar upgrades in South Africa's ESKOM grid reduced O&M costs by 40%.
Enhanced Reliability: In the Lagos pilot project, Dead Tank SF₆ Circuit Breakers reduced failure rates by 85%, cutting annual outage times to under 2 hours, meeting IEA-recommended standards.
Environmental Benefits: 99.9% SF₆ gas recovery rate reduces greenhouse emissions, aligning with Nigeria's commitments under the Paris Agreement.
Economic Gains: Payback period shortened to 5 years. Leveraging India's grid modernization experience, peak-valley tariff adjustments drove annual revenue growth of 12%.
