| Brand | Xinyouxiang |

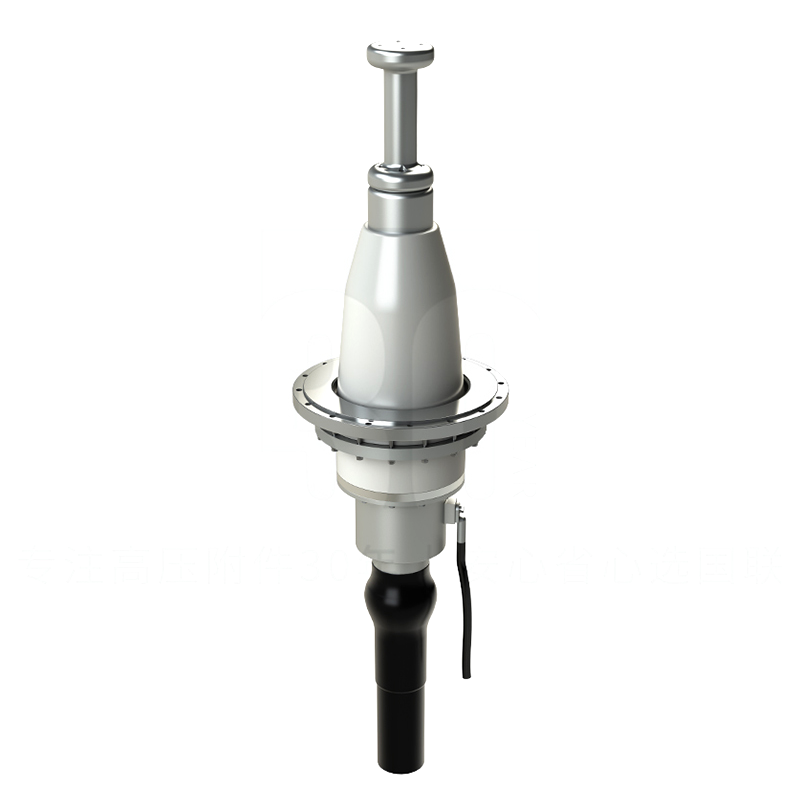

| Model NO. | 220 kV GIS cable terminal/transformer terminal (960 structure) |
| Rated voltage | 220kV |
| Series | YJZGG |
Product Features
·Adopting a plug-in fully sealed structure, silver plated contacts are used to connect the conductor and fittings
·The main body of the terminal stress cone is made of imported liquid silicone rubber, which has excellent electrical and mechanical properties
·The terminal is a dry structure without any filling fluid, which eliminates problems such as oil leakage and seepage
·Adopting a stress cone compression structure, the stress cone is tightly supported on the inner wall of the epoxy sleeve by a spring-loaded compression device, ensuring that the interface pressure does not change and guaranteeing the product's service life
·Reasonable product structure design, small size, and light weight
·Thoroughly solve the problem of top closure, and install quickly and conveniently
Used for wiring terminals of gas insulated metal enclosed switchgear (GIS) and transformers, where "960 structure" represents that the terminal is a long specification, with a key interface length or overall length dimension of 960mm. It is a core high-voltage accessory in power systems that enables reliable connection between cables, GIS, and transformers
Technical Specifications
| Voltage Level (kV) | Maximum Operating Voltage (kV) | Terminal Weight (kg) | |
|---|---|---|---|
| Short Type 620 | Long Type 960 | ||
| 220 | 252 | ≈180 | ≈200 |
