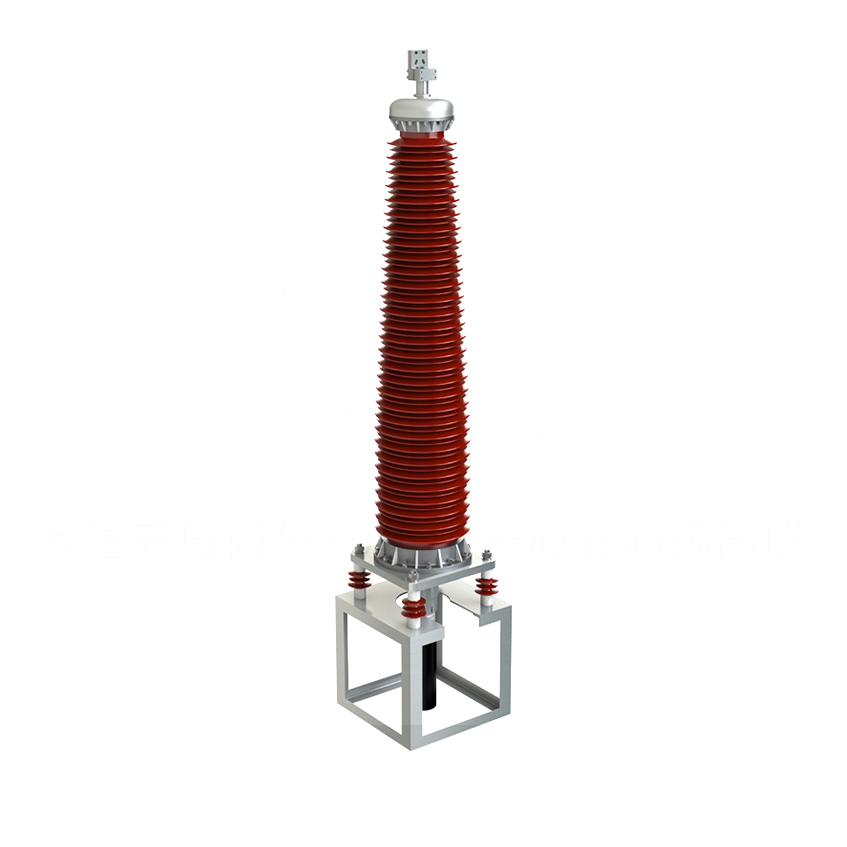

220kV porcelain sleeve outdoor cable terminal
Key attributes
| Brand | Switchgear parts |
| Model NO. | 220kV porcelain sleeve outdoor cable terminal |
| Rated voltage | 220kV |
| Series | YJZWY |
Product descriptions from the supplier
Product Definition and Core Features
Structural design:
Using ceramic sleeve body (alumina ceramic material) as the main insulation, it has high mechanical strength (bending strength ≥ 200MPa) and excellent pollution flashover resistance (IV anti fouling level)
Built in metal sheath and waterproof tape form a sealed structure to prevent moisture and dampness from entering (patented technology CN22299585U)
Electrical performance:
Rated voltage of 220kV, suitable for cable cross-section of 400~2500mm ², local discharge capacity ≤ 5pC (IEC 60840 standard). The stress cone adopts high-purity semiconducting material to optimize the electric field distribution and reduce the risk of interface breakdown
Technical Specifications
| Voltage Class (kV) | Maximum Operating Voltage (kV) | Surface Leakage Distance (mm) | Pollution Resistance Class | Terminal Weight (kg) |
|---|---|---|---|---|
| 220 | 252 | > 7900 | IV | ≈580 |
