BaseRobot
Key attributes
| Brand | Wone Store |
| Model NO. | BaseRobot |
| Series code | 400 |
| Product edition code | Plus edition |
| Series | AMB-300/400 |
Product descriptions from the supplier
UniversalAMR Chassis,Flexible Expansion
Flagship Universal Platform, FlexibleExtension Capabilities
The flagship series AMR chassis boasts leading positioningand navigation technology, as well as motion controlperformance, Equipped with mainstream interfaces such asRS485 and l/0, satisfying the development of uppermechanisms like lifting assembly, roller assembly,manipulator, traction, and pan-tilt unit, offering unlimitedpotential.
Dual Lasers+3D camera, Higher SafetyFactor
The dual-laser configuration at the front and rear enables360° protection of the entire vehicle. it supports the optiona!3D camera for detecting pits and obstacles to ensure safemovement. Contact bumper strips are equipped at the frontand rear forimmediate halt upon impact.
Hybrid Navigation, Positioning Accuracyup to ±5 mm
The positioning accuracy can reach up to ±2 mm~+5 mm,supporting SLAM,QR code, and reflector navigation, andthecorresponding navigation solutions can be matchedaccording to the scenario needs.
Multiple Load Capacity Levels and HighCost-effectiveness, Premier Choice forAMR-building
The chassis series covers the load capacity range of 150 kg to400 kg, features a universal AMR-building platform withultra-high cost performance and is the perfect partner forcustomers to buildvarious mobile robots.

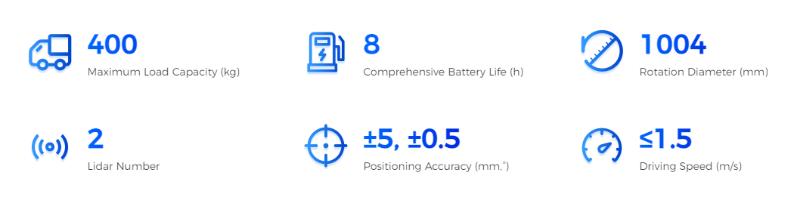

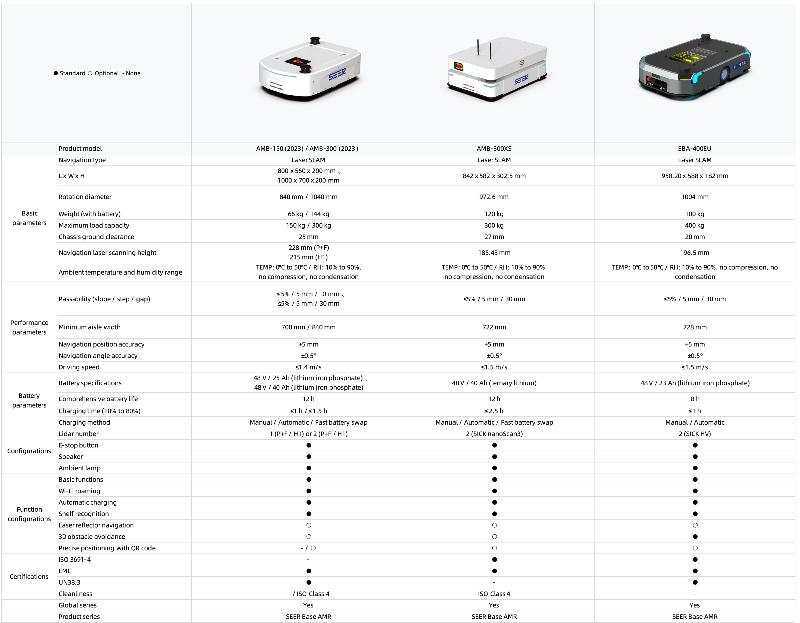

Product Parameters
