Superb Load Capacity Lifting Robot
Key attributes
| Brand | Wone Store |
| Model NO. | Superb Load Capacity Lifting Robot |
| Product edition code | Plus edition |
| Series | AMB-500JS/1000JS |
Product descriptions from the supplier
Safe Lifting, Superb Load Capacity
CE Certified, Safety Guaranteed
Has passed the CE safety certification (ISO 3691-4:2020) and other related certifications.
1-hour Charging, 7-hour Full-load Endurance
The charging station can be optionally a 40 A fast charging one. With 1-hour of charging, it can achieve a 7-hour endurance under full load.
Laser SLAM Navigation, Accuracy up to ±5 mm
Laser SLAM navigation offers a remarkable accuracy of ±5 mm and eliminates the need for reflectors during deployment.
Single-side distance ≤ 7 cm, Wide-area Rack Recognition
Even with a single-side distance of ≤ 7 cm, it supports wide-area rack recognition. After automatic correction, it precisely drills into the rack, boosting the success rate of loading goods.
Optional Load Capacity: 500 / 1000 kg
Optional robots with a load capacity of 500 kg and 1000 kg are available to meet the loading demands in multiple scenarios.

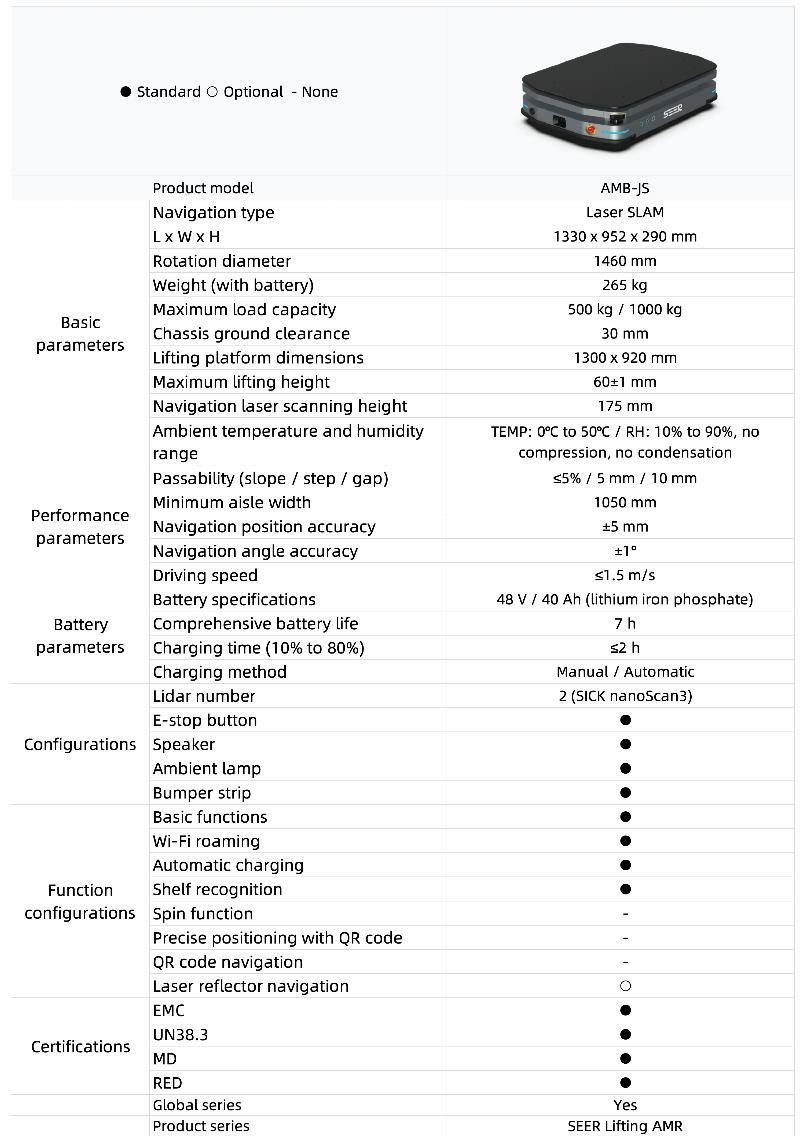

Product Parameters
