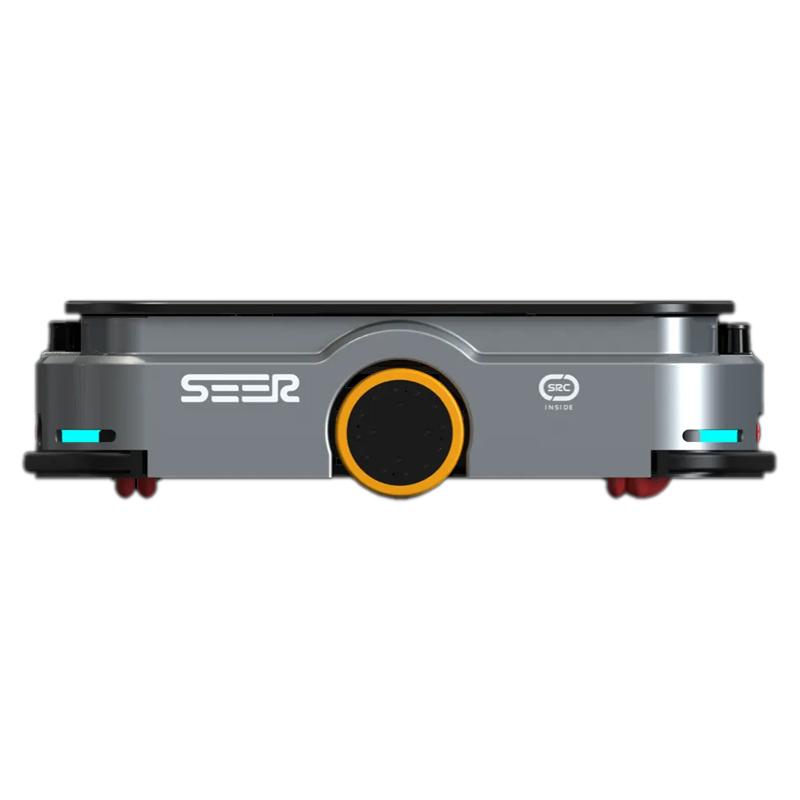

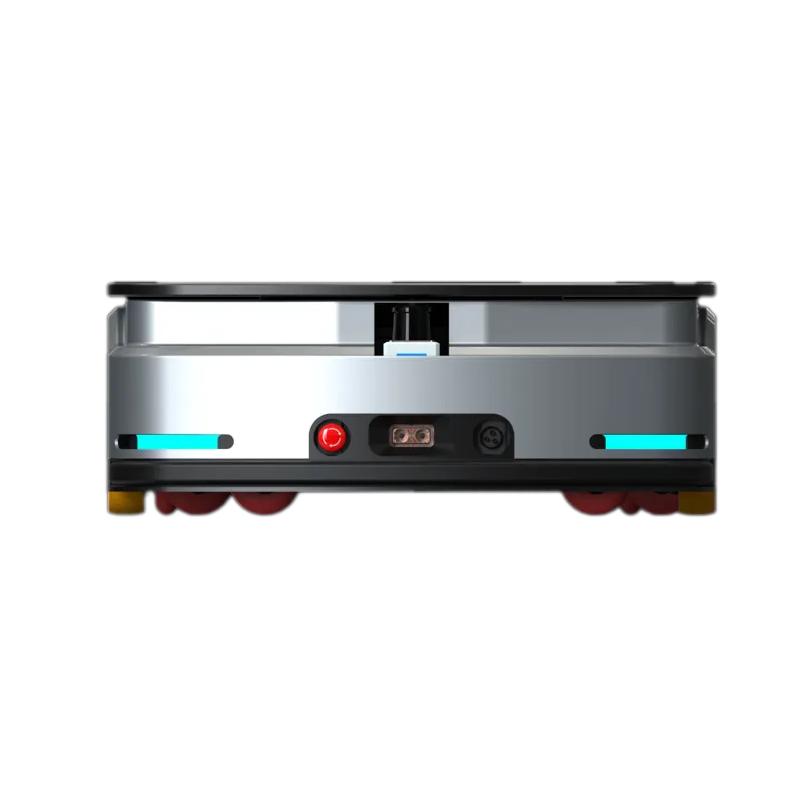

Lifting Robot
Key attributes
| Brand | Wone Store |
| Model NO. | Lifting Robot |
| Product edition code | Plus edition |
| Series | SJV-SW |
Product descriptions from the supplier
Powerful Performance, Unmatched Value for Money
Dual Laser: Double the Reliability and Safety
Equipped with advanced navigation laser at the front and obstacle avoidance laser at the rear, our robot ensures a safety operation experience like never before.
Spin Function: Flexibility for Pick-up, Drop-off and Handling
The Robots body and lifting plate can rotate separately, it effortlessly navigates in tight spaces, such as narrow aisles and densely packed shelves.

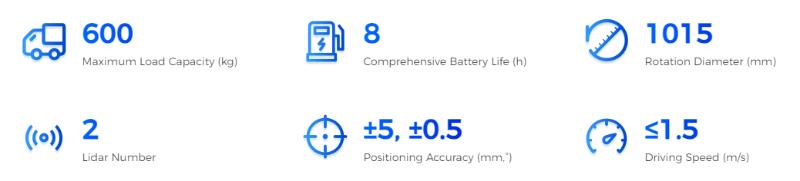

3 Types of Navigation, High Precision Up to ±5 mm
Positioning accuracy can reach ±5 mm. Supports multiple navigation method, such as SLAM, QR code and laser reflector. It adapts to various scenarios with the perfect navigation solution.
Effortlessly Handle 600 kg: Conquer Heavy Lifting with Ease
With a remarkable load capacity of 600 kg, our compact-sized robot effortlessly tackles various transportation needs of different scenarios, from e-commerce sorting to material handling and even call feeding.
Unmatched Speed and Efficiency at 2 m/s
Maximum running speed of 1.5 m/s when fully loaded, and 2 m/s when unloaded.

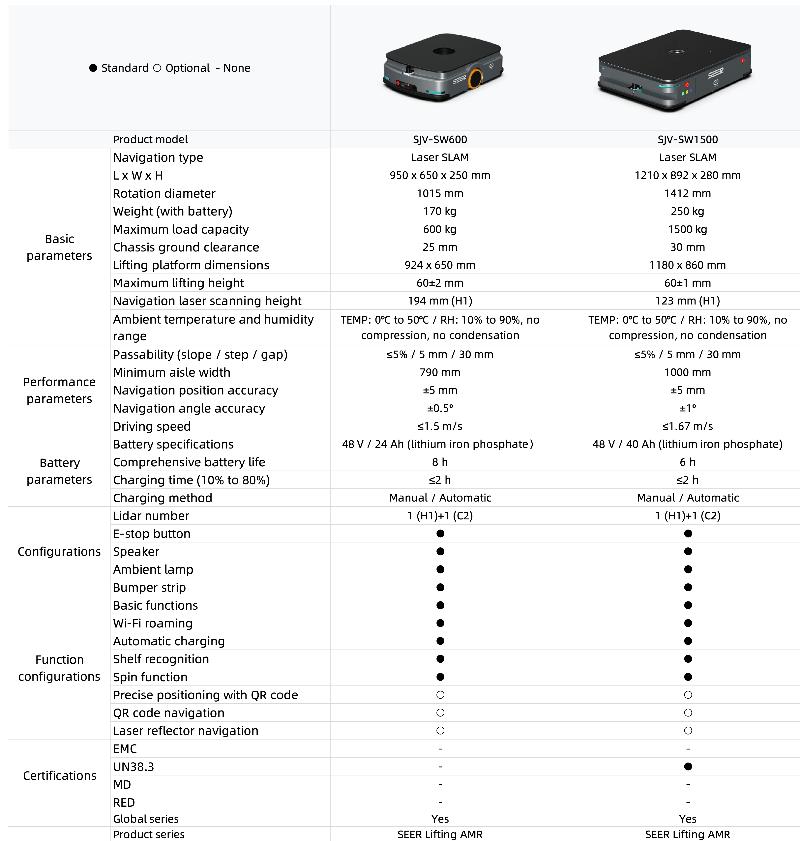

Product Parameters
