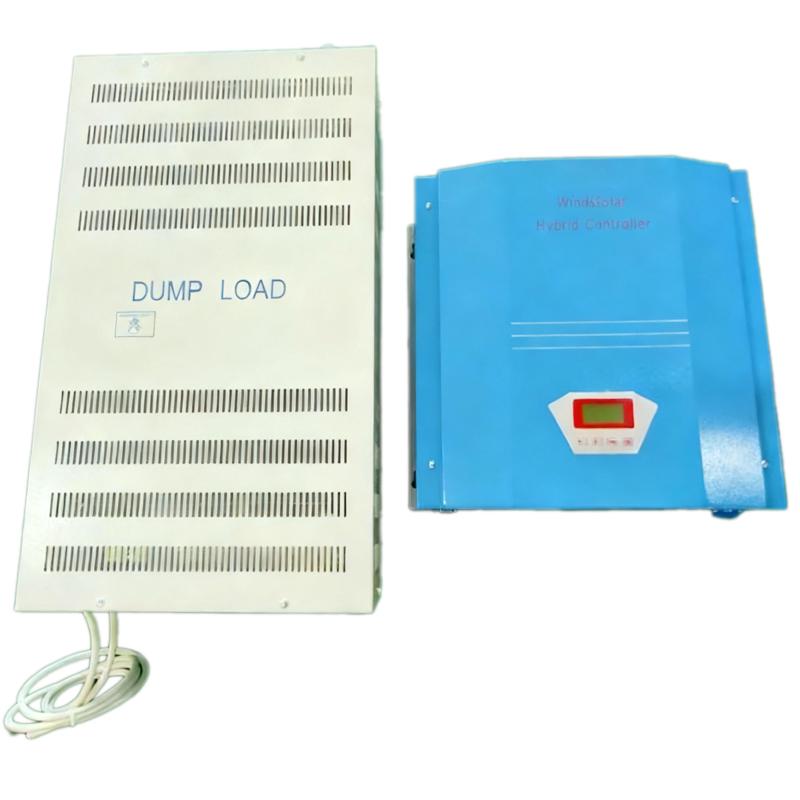

5KW Wind&PV Hybrid Controller

  • 5KW Wind&PV Hybrid Controller
  • 5KW Wind&PV Hybrid Controller

Key attributes

Brand Wone Store
Model NO. 5KW Wind&PV Hybrid Controller
Input Voltage DC240V
Power 5KW
Series WWS-50

Product descriptions from the supplier

Description

The wind/solar hybrid controller is control device which can control wind turbine and solar panel at the same time and transform wind and solar energy into electricity then store to the battery bank. Wind/solar hybrid controller is the most important part in off-grid system, whose performance has much effect on life expectancy and operation of the whole system, especially the battery expectancy. Life span of battery will be shortened by over charge or over discharge in any case.

Features

  •  Can be applied to wind&solar hybrid off-grid system

  •  Several functions are optional, such as wind speed measure function, rotational speed control function and temperature compensation function.

  •  RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/WIFI/Bluetooth connection)

Applications

  •   Independent wind power plant

  •   Independent household wind power generation system

  •   Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.

  •   Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.

 Technical Parameters

Model

WWS50-48

WWS50-120

WWS50-240

 Wind Turbine Input

Rated input power

5kW

Rated input voltage

48VDC

120VDC

240VDC

Input voltage range

0~64VDC

0~160VDC

0~320VDC

Rated input current

105A

42A

21A

Brake by hand

Press button "Enter"   "Esc" at the same time to unload completely. Then recover by hand.

Brake by over current

105A  (factory   default, 0~105A settable) unload completely when reached the set current, and   recover automatically after working 10mins.

42A  (factory   default, 0~42A settable) unload completely when reached the set current, and   recover automatically after working 10mins.

21A  (factory   default, 0~21A settable) unload completely when reached the set current, and  recover automatically after working 10mins.

Brake by overvoltage

Refer to "output overvoltage" control

Brake by over wind speed (optional)

14m/s  (0-30m/s   settable), unload completely when reached the set wind speed, and recover   automatically after working 10mins.

Brake by over rotational Speed (optional)

500r/min (factory default,0~1000r/min settable)Unload  completely when reached the set rotational speed, and recover automatically after working 10mins.

PV Input  (optional)

Rated input power

1500W

Max. Open circuit voltage

96VDC

240VDC

480VDC

Rated input current

32A

13A

7A

Reversed connection protection

YES

Charge Parameters   (optional)

Rated battery voltage

48VDC

120VDC

240VDC

Temperature compensation function (optional)

-3mV/℃/2V

Output Parameters

Rated output voltage

48Vdc

120VDC

240VDC

Output overvoltage point

58VDC

145Vdc

290VDC

Output overvoltage recovery point

Less than output overvoltage

General Parameters

Rectifier mode

Uncontrolled rectifier

Display mode

LCD

Display information

DC output voltage, wind turbine   voltage/current/power/battery voltage and PV power/voltage/current

Monitoring mode (optional)

RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee

Monitoring Contents

Real-time display:DC output voltage, wind turbine   voltage/current/power/battery voltage and PV power/voltage/current
Parameter setting: Output overvoltage point, wind turbine over current point,   and wind turbine brake settings.

Lightning protection

YES

Conversion efficiency

<95%

Static loss

<5W

<5W

<5W

Ambient temperature

-20℃~+40℃

Humidity

5%~95%, No condensing

Noise

≤65dB

Cooling mode

Natural cooling

Installation mode

Wall-mounted

Cover protection class

IP42

Product dimension (W*H*D)

440x425x170 mm

440x305x170 mm

Product net weight

12kG

7.5kG

Dump load dimension(W*H*D)

730x390x190mm

Dump load weight

19kG

Note:  the listed specs are just for your   reference
