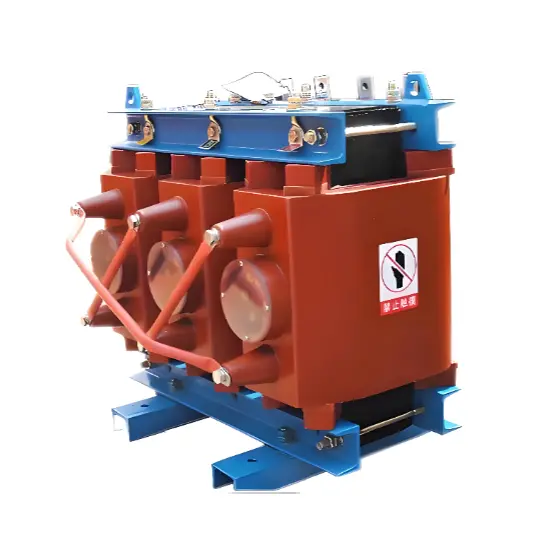

Three-Phase Dry-Type Excitation Generator Transformer 6.3kV 7.2kV 10.5kV

Wenzhou Rockwill Electric Co., Ltd.
17yrs 700++ staff 108000m²+m² US$150000000+ China
  • Three-Phase Dry-Type Excitation Generator Transformer 6.3kV 7.2kV 10.5kV
  • Three-Phase Dry-Type Excitation Generator Transformer 6.3kV 7.2kV 10.5kV

Key attributes

Brand ROCKWILL
Model NO. Three-Phase Dry-Type Excitation Generator Transformer 6.3kV 7.2kV 10.5kV
Rated voltage 6.3kV
Rated normal current 630A
Rated frequency 50/60Hz
Series ZLC

Product descriptions from the supplier

Description

 Product Introduction

The excitation transformer is a device specially designed to provide three-phase AC excitation power for the generator excitation system. The excitation system converts three-phase power into DC power for the generator rotor via silicon-controlled rectifiers (SCRs), forming the generator excitation magnetic field. By adjusting the firing angle of the SCRs in the excitation system, the generator terminal voltage and reactive power can be regulated.
It is usually connected to the generator outlet. Since the voltage at the generator outlet is relatively high while the rated voltage of the excitation system is low, an excitation transformer is required to step down the voltage.

Product Features

  • The load of the excitation transformer is an inductive load after rectification, and the secondary current contains a large number of high-order harmonic components.Meanwhile, overvoltage impacts also exist. Therefore, the manufacturing requirements for generator excitation transformers are more stringent.
  • By reducing magnetic flux density and current density, strengthening inter-turn insulation, adopting advanced casting transformer partial discharge control technology and internal stress control process, the internal insulation of the excitation transformer is optimized, thus ensuring the key performance of the transformer.
  • A shielding grounding screen installed between the high-voltage and low-voltage windings effectively shields the parasitic capacitance between windings and suppresses the influence of harmonics on the excitation system.
  • The product features strong overload capacity, low loss, low noise, maintenance-free operation and energy saving. It is moisture-proof, mildew-proof, salt-spray resistant, with excellent heat dissipation, and adapts to high-altitude, high-temperature and harsh environments.

 Product Performance Parameters

Operation Mode Continuous operation
Voltage Regulation Range ±2×2.5%
Phase Number 3-phase
Connection Group Y,d11
Polarity Subtractive polarity
Insulation Class Class H
Cooling Method AN/AF
Voltage Regulation Mode Off-circuit voltage regulation
Service Conditions
a. Altitude: Not exceeding 1000 m
b. Ambient temperature:
  • Ambient air temperature: -30 ℃ ～ +40 ℃
  • Daily average temperature: +30 ℃
  • Annual average temperature: +20 ℃

c. Atmospheric relative humidity:

  • Daily average: ≤ 95%
  • Monthly average: ≤ 90%

d. Equipped with a sound grounding grid

e. Power supply frequency: 50 /60Hz
