Overview

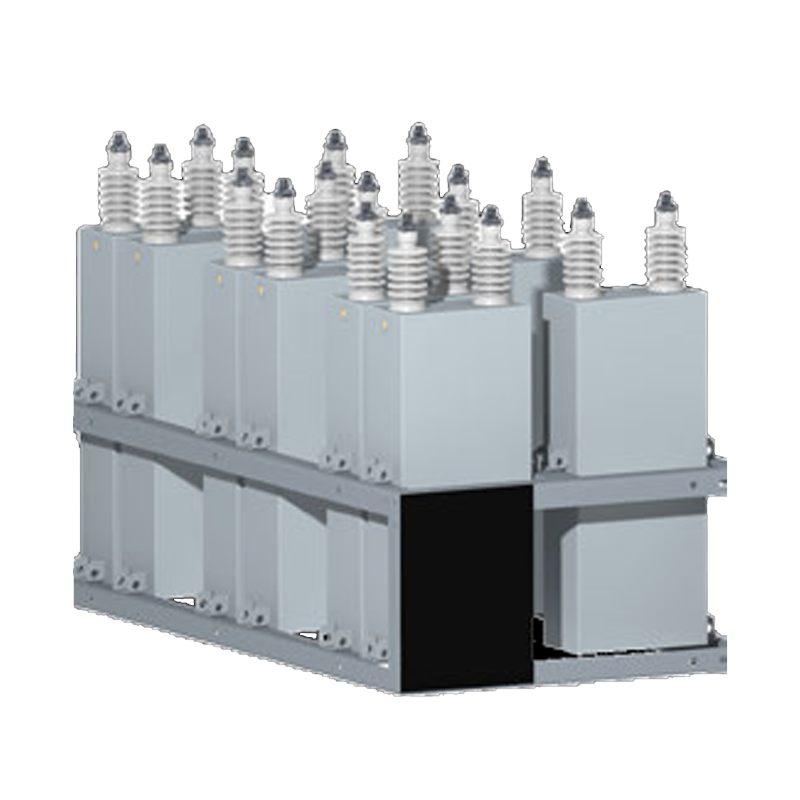

QBank is constructed with single phase capacitor units mounted on hot-dip galvanized steel racks. The capacitor units may be mounted vertically but are normally horizontally mounted to have full benefit of their compact design.

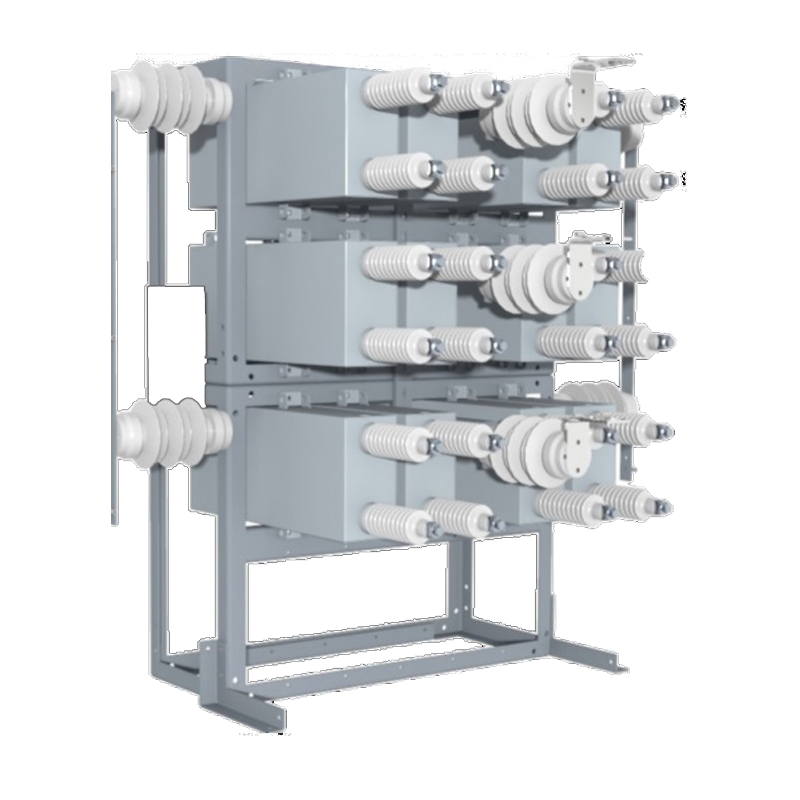

The units are connected in series and parallel to achieve the desired voltage and power rating. The banks are built either by placing the racks on top of each other, with any necessary insulators in between, or with the racks placed side-by-side, depending on the space available at the installation site.
An unbalance current transformer is normally supplied as standard when number of units in par. QBank is supplied with internally fused, externally fused or fuseless configurations depending on the bank’s voltage and power level.
QBank is certified according to EMC directive 89/336/EEC. As a safety feature, the bank can be equipped with insulated wires and bird caps.

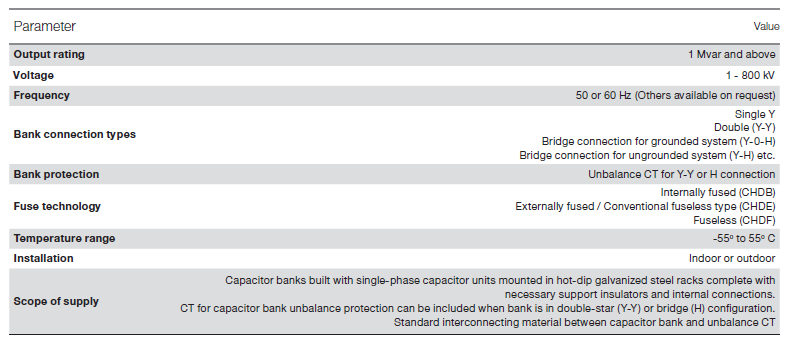

Technology parameters
