| Brand | ROCKWILL |
| Model NO. | PQactiF Series Active filter |
| Rated voltage | 400V |
| Rated normal current | 400A |
| Mounting type | rackmounting |
| Series | PQactiF Series |
Active filter PQF has been present globally in the market for more than 20 years. It makes installations compliant with prevailing power quality regulations by mitigating harmonic pollution, load unbalance and reactive power demand.
Individual harmonic selection capability and unique filtering efficiency due to three-level inverter and proven control system
PQactiF has an improved capability of filtering up to 25harmonics simultaneously, between the orders H2 to H50.
Stepless reactive power compensation for both inductive and capacitive loads, target settable
PQactiF can perform precise stepless reactive power compensation of both inductive and capacitive loads. The target power factor is programmable from 0.6 (inductive) to 0.6 (capacitive) which makes PQactiF a superior alternative to a conventional capacitor bank. This also allows compensation of loads fed by generators without the risk of overcompensation.
Balancing the load currents to address neutralto-earth voltages and negative impact of voltage unbalance
Load balancing feature is available in both 3-wire and 4-wire systems between phases and between phase and neutral.
This feature helps to improve voltage unbalance on the phases which increases the safety of the installation and allows sensitive loads to operate.
Wi-Fi enabled modules allow users to monitor and set parameters via smartphone or computer
Parameter settings and simple diagnostics can be performed by a web server on a mobile device. The optional user-friendly HMI (called PQoptiM) interface offers direct access to filter control, programming and monitoring with its 7-inch touchscreen.
PQactiF is offered in two differentmodule ratings of 20 A and 40 A.Depending on the application, PQactiF is available in either as a module, a wall-mounted solution or a standalone cabinet.
PQactiF - M - Module
● Modular design: Suitable for OEMs, LV switchgear and drive manufacturers
● Very compact: Can be integrated into a small cubicle, either vertically or horizontally
● Low losses: Reduced losses and built-in forced air cooling

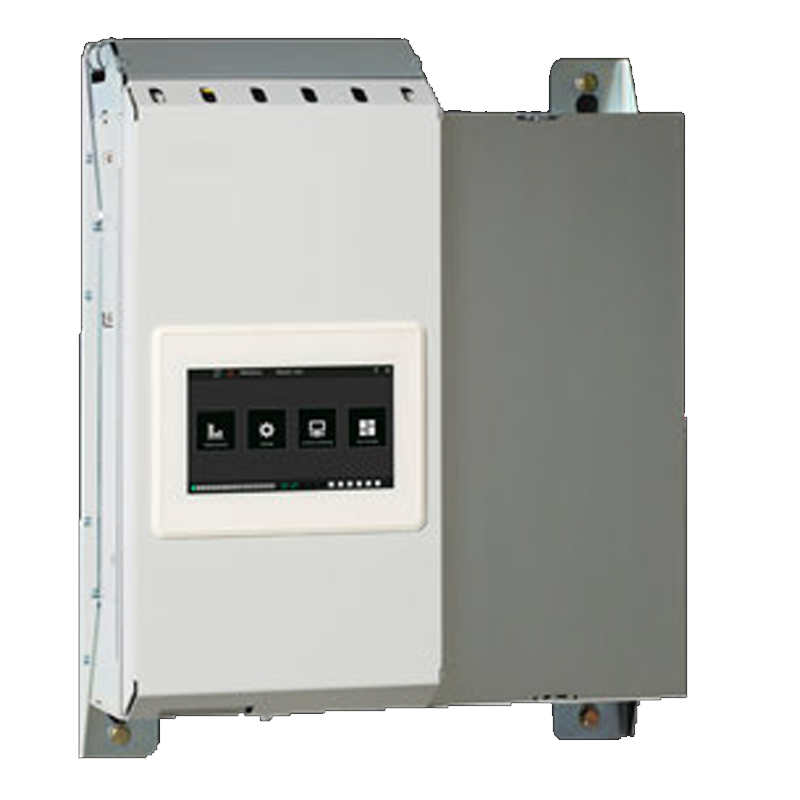

PQactiF - WM - Wall-mounted
● Distributed filtering: For building applications where space restrictions exist
● Easy to install thanks to wall-mounting kit
● Silent solution: <65dBA, perfect solution for installing on office floors

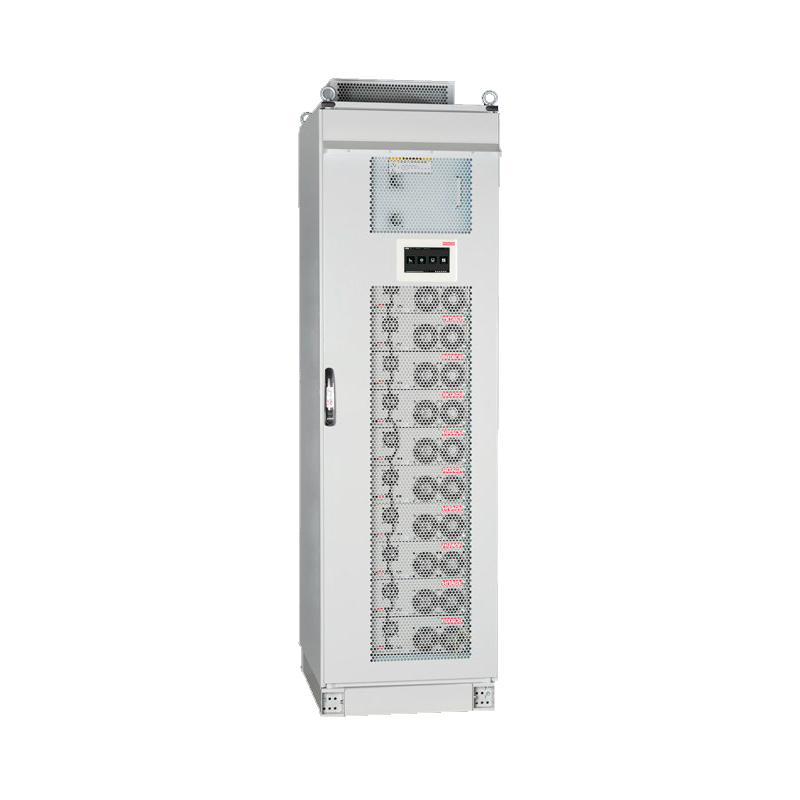

PQactiF - C - Standalone cabinet
● Complete solution: Factory made fully functional tested panel
● Flexibility: Rating can be extended in modular way from 20 A to 400 A in single cabinet

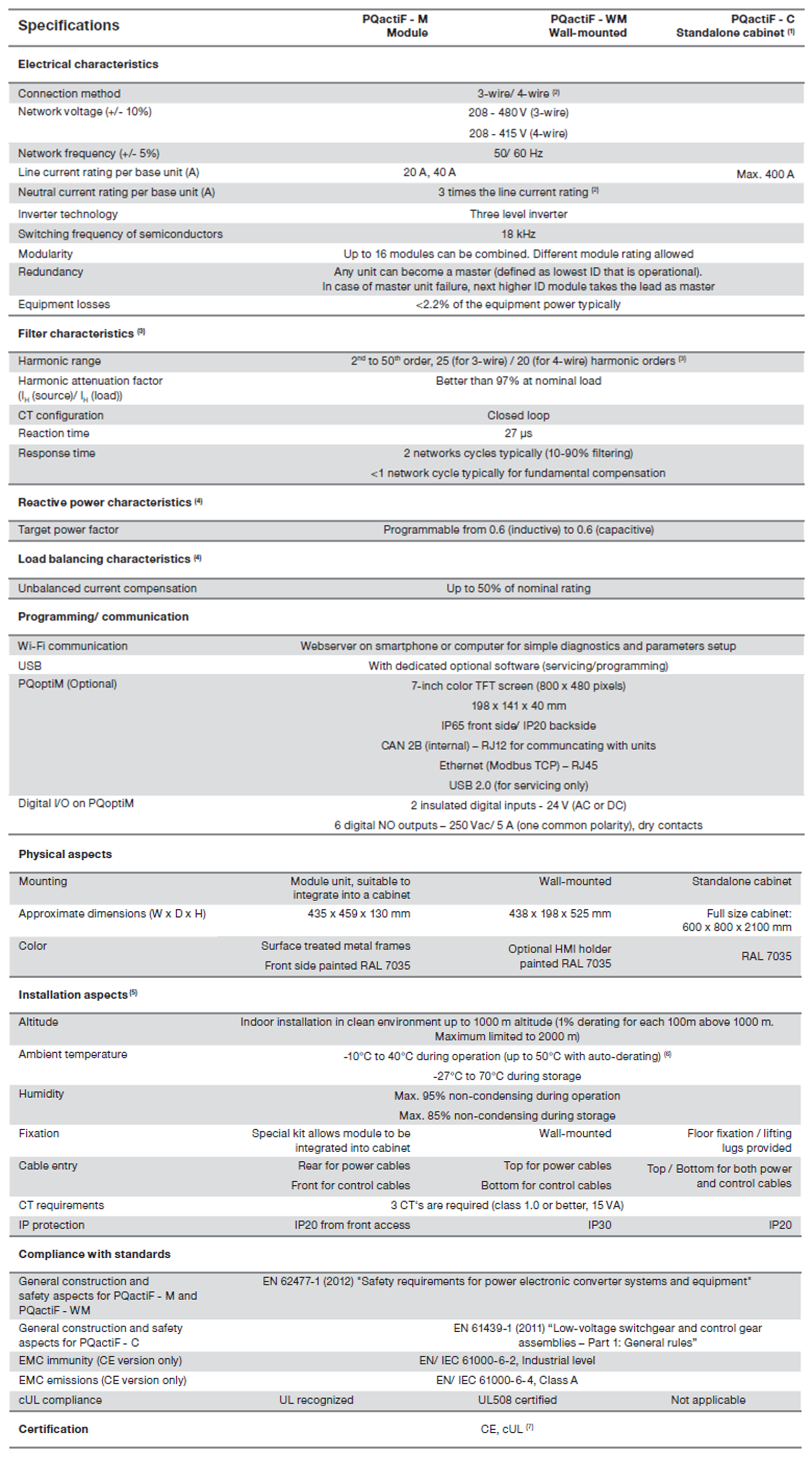

| Specification | PQactiF - M Module | PQactiF - WM Wall-mounted | PQactiF - C Standalone cabinet |
| Electrical characteristics | |||
| Connection method | 3-wire / 4-wire | ||
| Network voltage (+/- 10%) | 208 - 480 V (3-wire); 208 - 415 V (4-wire) | ||
| Network frequency (+/- 5%) | 50/60 Hz | ||
| Line current rating per base unit (A) | 20 A, 40 A | Max. 400 A | |
| Neutral current rating per base unit (A) | 3 times the line current rating | ||
| Inverter technology | Three level inverter | ||
| Switching frequency of semiconductors | 18 kHz | ||
| Modularity | Up to 16 modules can be combined. Different module rating allowed | ||
| Redundancy | Any unit can become a master (defined as lowest ID that is operational). In case of master unit failure, next higher ID module takes the lead as master | ||
| Equipment losses | <2.2% of the equipment power typically | ||
| Filter characteristics | |||
| Harmonic range | 2nd to 50th order, 25 (for 3-wire) / 20 (for 4-wire) harmonic orders | ||
| Harmonic attenuation factor（IH(source)）/IH(load) | Better than 97% at nominal load | ||
| CT configuration | Closed loop | ||
| Reaction time | 27 µs | ||
| Response time | 2 network cycles typically (10-90% filtering); <1 network cycle typically for fundamental compensation | ||
| Reactive power characteristics | |||
| Target power factor | Programmable from 0.6 (inductive) to 0.6 (capacitive) | ||
| Load balancing characteristics | |||
| Unbalanced current compensation | Up to 50% of nominal rating | ||
| Programming/communication | |||
| Wi-Fi communication | Webserver on smartphone or computer for simple diagnostics and parameters setup | ||
| USB | With dedicated optional software (servicing/programming) | ||
| PQoptiM (Optional) | 7-inch color TFT screen (800 x 480 pixels); 198 x 141 x 40 mm; IP65 front side / IP20 backside; CAN 2B (internal) - RJ12 for communicating with units; Ethernet (Modbus TCP) - RJ45; USB 2.0 (for servicing only) | ||
| Digital I/O on PQoptiM | 2 insulated digital inputs - 24 V (AC or DC); 6 digital NO outputs - 250 Vac / 5 A (one common polarity), dry contacts | ||
| Physical aspects | |||
| Parameter | PQactiF - M Module | PQactiF - WM Wall-mounted | PQactiF - C Standalone cabinet |
| Mounting | Module unit, suitable to integrate into a cabinet | Wall-mounted | Floor fixation / lifting lugs provided |
| Approximate dimensions (W x D x H) | 435 x 459 x 130 mm | 438 x 198 x 525 mm | 600 x 800 x 2100 mm |
| Color | Surface treated metal frames; Optional HMI holder painted RAL 7035 | Optional HMI holder painted RAL 7035 | RAL 7035 |
| Installation aspects | |||
| Parameter | PQactiF - M Module | PQactiF - WM Wall-mounted | PQactiF - C Standalone cabinet |
| Altitude | Indoor installation in clean environment up to 1000 m altitude (1% derating for each 100 m above 1000 m. Maximum limited to 2000 m) | ||
| Ambient temperature | -10℃ to 40℃ during operation (up to 50℃ with auto-derating); -27℃ to 70℃ during storage | ||
| Humidity | Max. 65% non-condensing during operation; Max. 85% non-condensing during storage | ||
| Fixation | Special kit allows module to be integrated into cabinet | Wall-mounted | Floor fixation / lifting lugs provided |
| Cable entry | Rear for power cables | Top for power cables | Top / Bottom for both power and control cables |
| CT requirements | 3 CT's are required (class 1.0 or better, 15 VA) | ||
| IP protection | IP20 from front access | IP30 | IP20 |
| Compliance with standards | |||
| Parameter | PQactiF - M Module | PQactiF - WM Wall-mounted | PQactiF - C Standalone cabinet |
| General construction and safety aspectsfor PQactiF - M and PQactiF - WM | EN 62477-1 (2012) "Safety requirements for power electronic converter systems and equipment" | ||
| General construction and safety aspects for PQactiF - C | EN 61439-1 (2011) “Low-voltage switchgear and contro l gear assemblies – Part 1: General rules” |
||
| EMC immunity (CE version only) | EN / IEC 61000-6-2, Industrial level | ||
| EMC emissions (CE version only) | EN / IEC 61000-6-4, Class A | ||
| cUL compliance | UL recognized | UL508 certified | Not applicable |
| Certification | CE, cUL | ||
