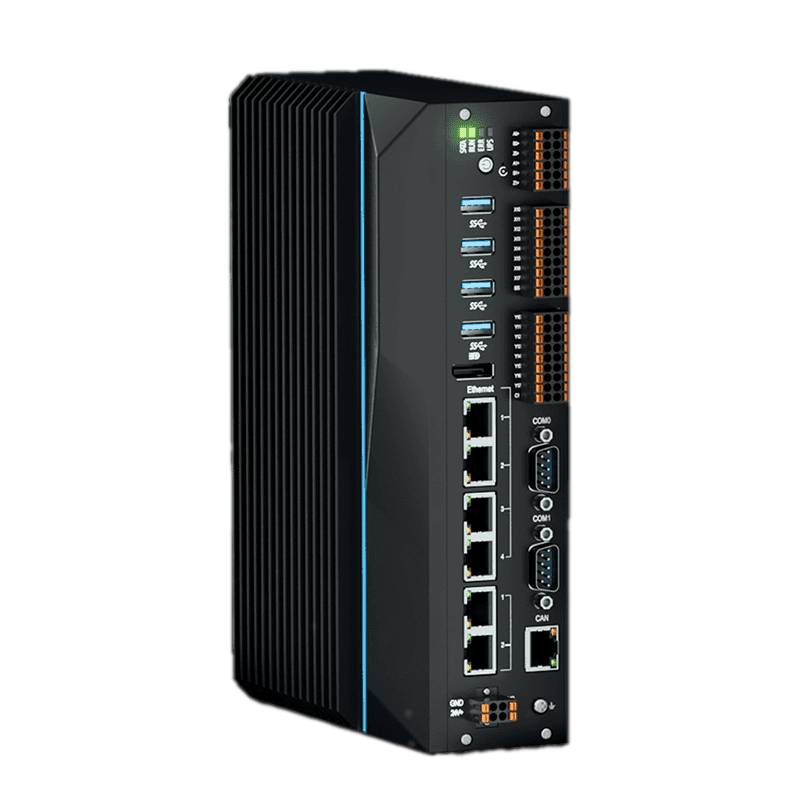

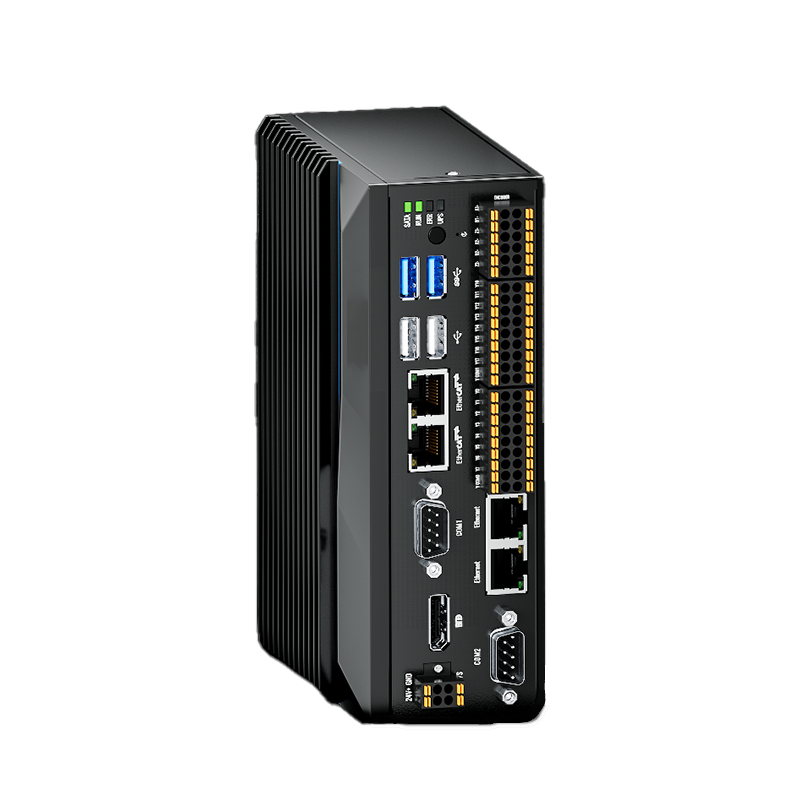

Inter X86 Industrial intelligent controller
Key attributes
| Brand | RW Energy |
| Model NO. | Inter X86 Industrial intelligent controller |
| Rated voltage | 24V |
| Series code | 500 |
| Product edition code | Plus edition |
| Series | XSA |
Product descriptions from the supplier
XSA series Based on the X86 platform, intel high-performance processor, and the response speed is faster.The self-developed Xs Studio programming, platform, which can referencemany standard function libraries, adopt the IEC61131-3 programmingstandard, support six programming langueges (ST, $FC, FBD, CFC, LD, IL),and develop proprietary function blocks, instruction libraries andsystem libraries, which can significantly improve user programming efficiency.
configuration
1284 program capacity
EthercAT motion control
EtherCAT remote lo
Ethernet communication
Slmulaton functon
Wth ScADA screen, built-in super capacitor and UPS
Restricted

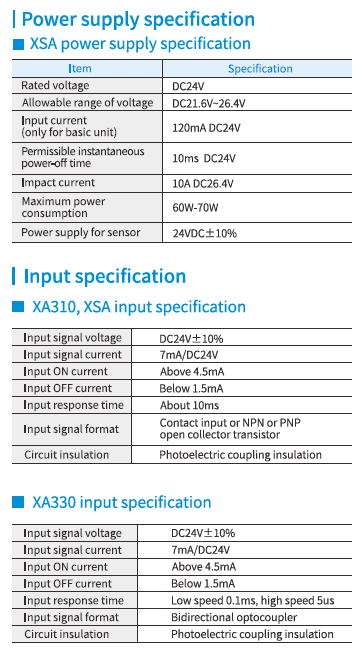

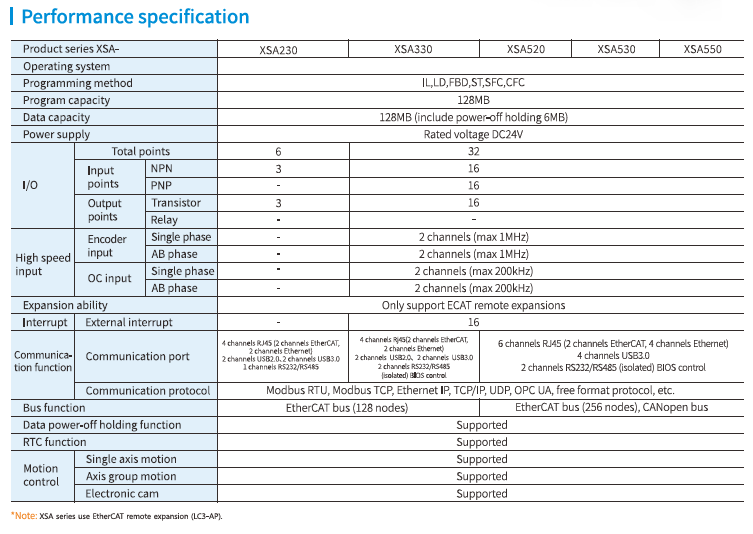

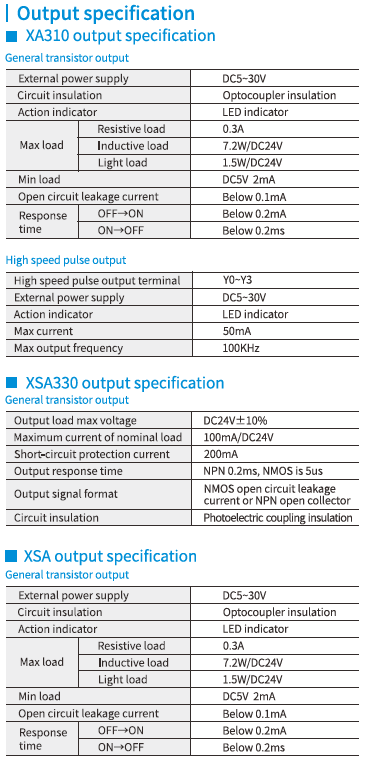

XA Series Industrial intelligent controller Data sheet
Operation manual
English
Consulting
Q: What communication protocols and network architectures does XSA support?
A:
Supports mainstream industrial protocols such as EtherCAT, Ethernet/IP, Modbus TCP, OPC UA, CANopen, etc., equipped with dual IP network ports, can achieve internal and external network isolation, and meet the digital upgrade needs of factories.
Q: Does XSA have built-in UPS and supercapacitor?
A:
Yes, it is. The XSA series has built-in supercapacitors and UPS functions, which can protect user programs and critical data during power outages, ensuring safe shutdown or continuous operation of the system.
Q: What processor platform is the XSA series based on? What are the advantages?
A:
The XSA series is based on Intel x86 high-performance processors, which run much faster than traditional PLCs and can integrate PLC control simultaneously HMI、 Machine vision SCADA、 Simulation and other functions to achieve integrated intelligent control.
