| Brand | Rw Energy |
| Model NO. | Large Scale PLC |
| Rated voltage | 24V |
| Series code | 200 |
| Product edition code | Plus edition |
| Series | LK |

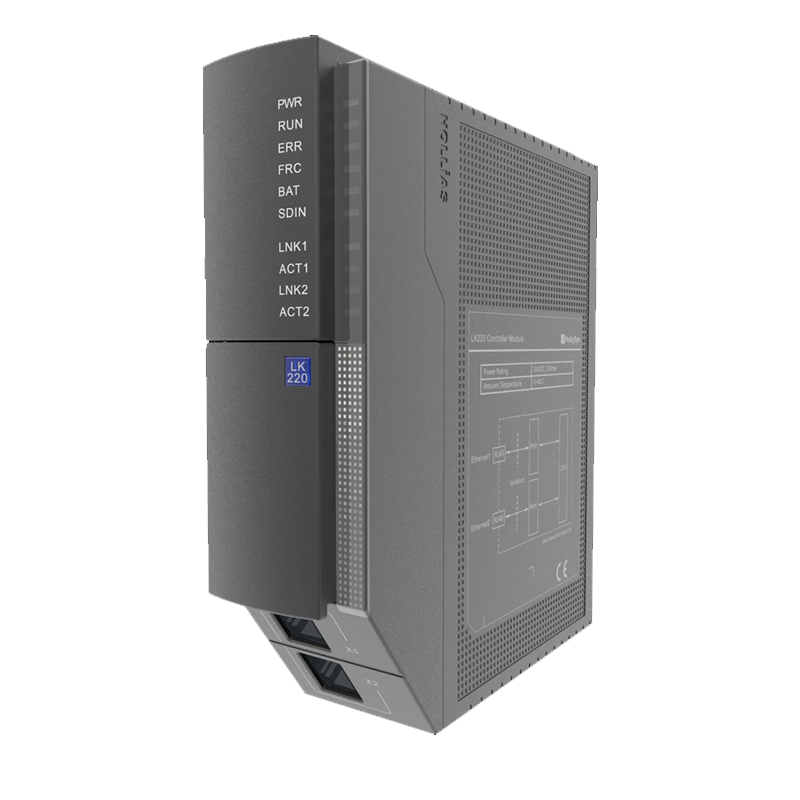

LK Large Scale PLC is designed for medium to large-scale control systems and highperformance control applications. It boasts single CPU and dual-rack redundant CPU design, ensuring fast operation and stable control. Drawing upon over 20 years of professional expertise, LK offers reliable, innovative factory automation, evolving for better reliability. With 10,000+ global installations, LK is rigorously validated for optimal performance.
Features：
1. High Reliability
Field-to-system and channel-to-channel isolation
Fault diagnosis, limit alarm, and fail-safe output
MRAM non-volatile memory for power-loss data retention
2. Harsh Environmental Adaptability
Operating temperature from -20℃ to +70℃
Storage temperature from -40℃ to +80℃
PCB with conformal coating
Compliant with EMC standards (IEC61000-4/IEC61131-2)
3. High Performance
Less than 100 ms of CPU switchover time
Less than 100 μs of minimum task scheduling time
Less than 200 ms of loop response time
4. Easy to Use
Hot swap for all modules
Foolproof design for module mounting
The dual rack redundant CPU architecture is the core! Real time synchronization of data between the primary and backup CPUs, with a fault switching time of less than 100ms (imperceptible to the human eye), coupled with MRAM non-volatile memory, ensuring that the program is not lost during power outages. We have been operating stably for over 5 years in multiple multi million ton steel mills, with annual downtime approaching zero, safeguarding the core productivity of the enterprise.
Born specifically for strictness! The circuit board is coated with three anti paint and industrial grade wide temperature element devices, which have undergone -40 ℃ cold start and 70 ℃ high temperature aging tests. Batch application in northwest mining areas, coastal salt spray environments, high dust workshops and other scenarios, with a failure rate lower than the industry average of 50%, truly "able to withstand and rely on".
Smooth migration, worry free! We offer a "three-step worry free upgrade":
