| Brand | Rw Energy |
| Model NO. | Medium PLC |
| Rated voltage | 24V |
| Product edition code | H （EtherCAT） |
| Series | XG2 |

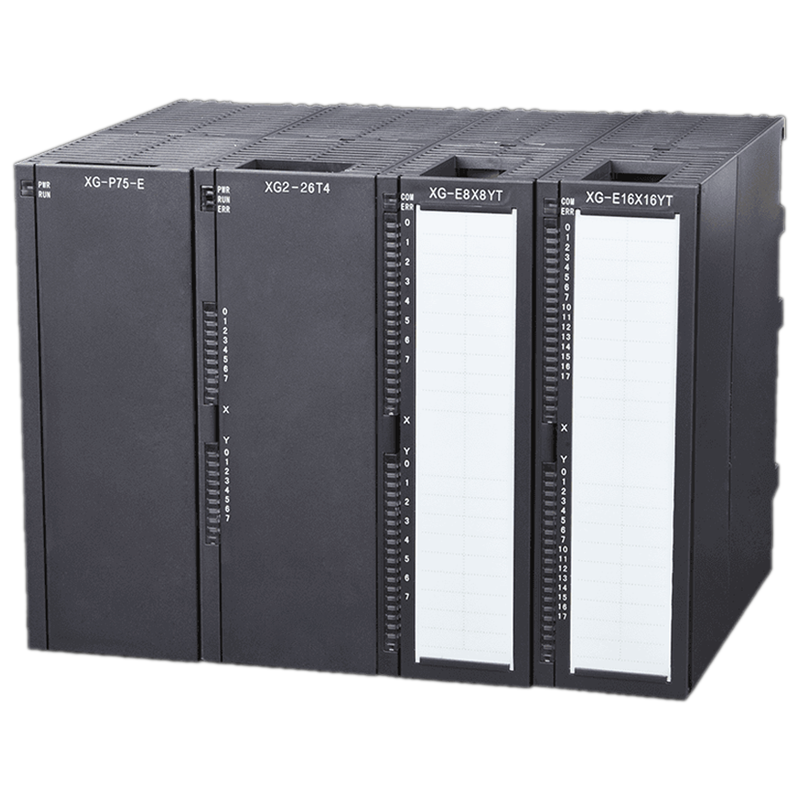

With faster processing speed, stronger motion control function, higher reliability and more compact structure, provides users with more perfect solutions and creates higher value.
The motion control type of medium-sized PLC provides customers with an ideal solution in bus motion control.
Function features
New appearance design, high space utilization
Ethernet port communication is convenient, fast, powerful and adaptable
CPU processing speed increased significantly
Higher reliability
Greater storage capacity

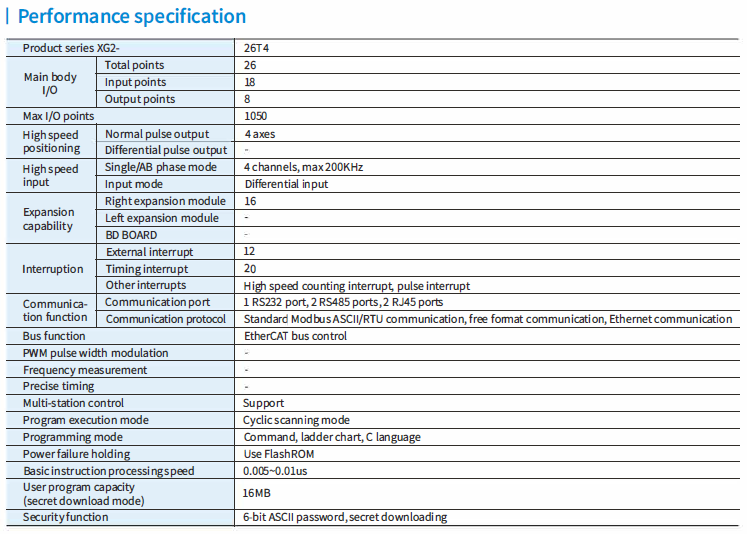

configuration
16MB program capacity

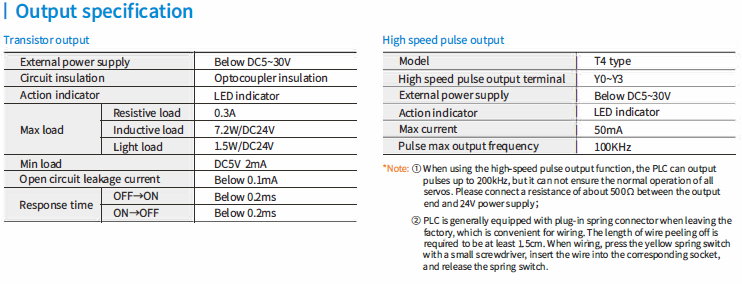

4 channels 100KHz pulse output
Max 1050 points
Basic instruction 0.005~O.Olus
RS232&RS485 port
Linear/arc interpolation
Ethernet communication
EtherCAT communication
Follow up function
Support differential input
axes linear, arc interpolation
16 channels electronic CAM
The XG2 series has a basic instruction processing speed of 0.005-0.01 μ s, with a program capacity of up to 16MB and 1050 I/O expansion capabilities. It is suitable for scenarios with high real-time and reliability requirements, such as medium to large automated production lines, multi axis motion control, packaging machinery, logistics sorting systems, etc.
Yes, it is. XG2 supports EtherCAT bus communication, 4-axis 100kHz pulse output, 3-axis linear/circular interpolation, and built-in 16 channel electronic CAM (cam) function, which is very suitable for high-precision synchronous control applications.
Compared to small PLCs, XG2 has stronger CPU performance, larger program and data storage space, higher I/O expansion capability, and native integration of advanced motion control functions, making it suitable for complex system integration.
