| Brand | HK Electrical |
| Model NO. | DIN Rail Single Phase ModBUS protocol Smart Energy Meter Manufacturer |
| Rated voltage | 230V |
| Rated normal current | 0.25-5(80)A |
| Series | D119001-02 |
Description
DIN RAILstandard installation size,only 36.5mm width;
It can be up to 80A;
Double row display,upper row is forcurrent energy,the below row is fortotal energy;
LCD display with blue backlight, which is better for data reading in dark or low light conditions;
Meter has reset function. Press "RESET"button formore than 10s, the upper row data (current energy) will be reset
Specifications
| Main |
|
|---|---|
| Range | D119001-02 |
| Product or Componet Type | Smart Energy Meter |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single Phase |
| Type of measurement | 1-total =forward 2-Total=reverse 3-Total =forward +reverse (default) 4-Total=Forward-Reverse |
| Metering type | Measurement |
| Device Application | Solar Power Energy Charge |
| Accuracy class | Active power 1.0 |
| Rated Current | 0,5-5(30)A,0,5-5(32)A,0,5-5(40)A,0,5-5(45)A, 0,5-5(50)A,0,5-5(60)A, 0,5-5(80)A |
| Rated Voltage | 230V |
| Network Frequency | 50-60Hz |
| Technology Type | Electronic |
| Display Type | LCD display(LCD5+1) |
| Impulse Constant | 1000imp/kWh(LED) |
| Maximum value measured | 99999.99kWh |
| Tariff input | ----------- |
| Communication port protocol | Modbus |
| Communication port support | RS485 |
| Local signalling | ------ |
| Number of inputs | ------- |
| Number of Outputs | -------------- |
| Output voltage | 230V |
| Mounting Mode | Clip-on |
| Mounting Support | DIN rail |
| Connections - terminals | ------- |
| Standards | IEC62052-11 IEC62053-21 IEC62053-31 |
| Environment |
|
|---|---|
| IP degree of protection | IP51 indoor |
| Relative humidity | 5…95 % 97 °F (36 °C) |
| Ambient air temperature for operation | -40…70 °C |
| Ambient Air Temperature for Storage | --40…70 °C |
| Operating altitude | 4000 m |
| Dimensions | 110mm*37mm*65mm |
| Packing Units |
|
|---|---|
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 65mm |
| Package 1 Width | 37mm |
| Package 1 Length | 110mm |
| Package 1 Weight | 1.000kg |

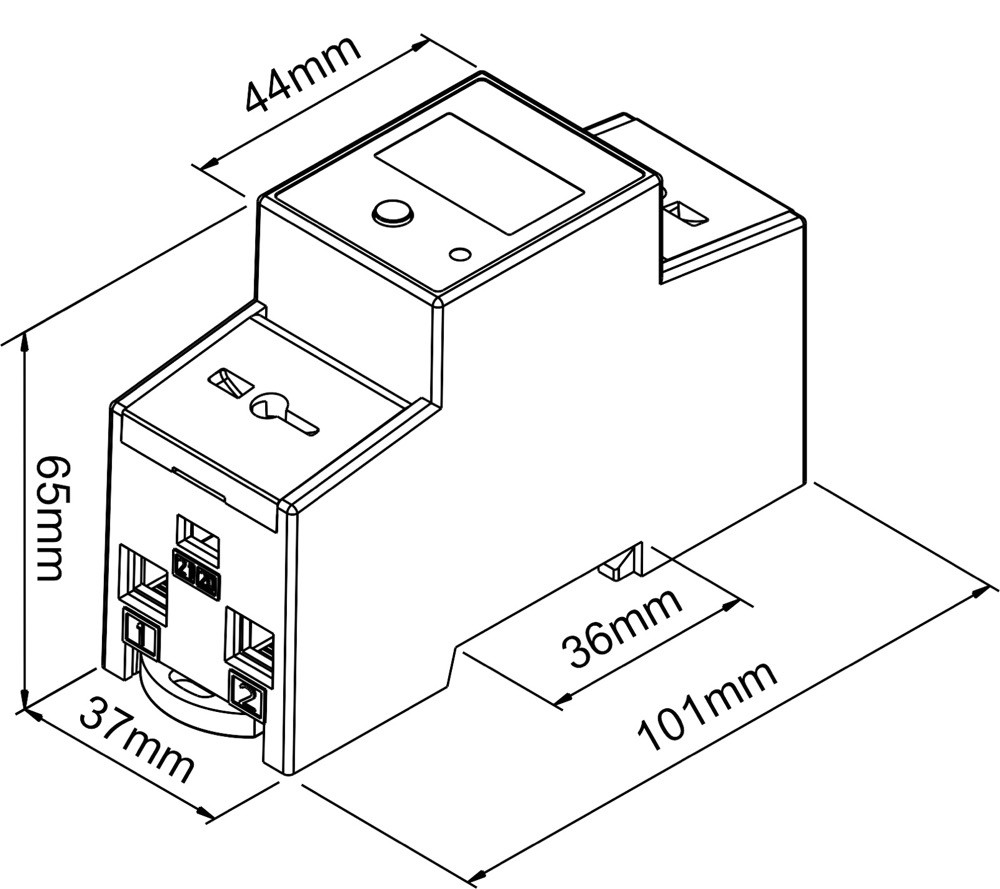

Dimensions
