| Brand | HK Electrical |
| Model NO. | Single Phase Smart Prepayment Meter |
| Rated voltage | 230V |
| Rated normal current | 5(30)A |
| Rated frequency | 50（Hz） |
| Methods of Communication | HPLC |
| Series | D114071-HPLC |
Description

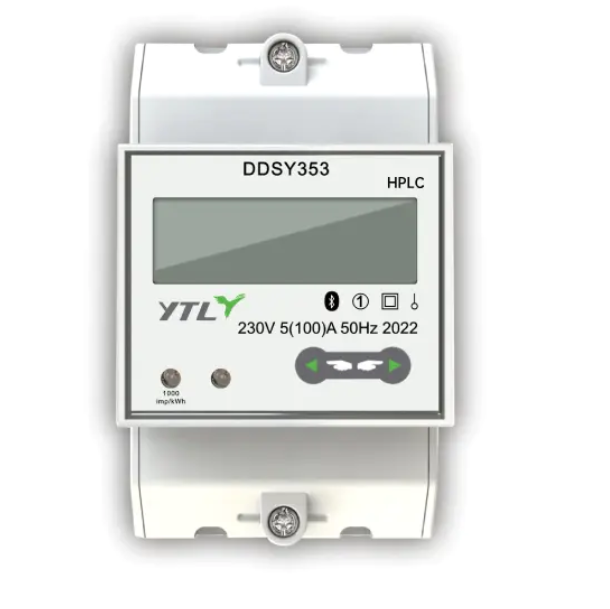

It is a single-phase two wire three modular DIN RAIL prepayment smart meter, with built-in motor relay and HPLC module, automatic networking, can realize remote reading, remote recharge, remote balance clearing, when there is overload or no credit will cut off the power automatically. At the same time, it has Bluetooth communication, which can connect with in-home-display and mobile phone for data reading and setting.
Feaures
Recharging Token for the latest 10 times ( 20-bit code generated when recharging Token).
The latest 10 events of over/under voltage, low frequency, overload, temperature, low credit
Support HPLC communication, automatic networking when power on, without manual setting.
The meter can store up to 31 days of 24-hour power and monthly and annual hourly cumulative data.
When the load exceeds the set power threshold for more than 3 seconds, the relay will be disconnected, and the overload threshold can be set by software.
Meter support terminal cover detection. When the terminal cover is opened, the indicator symbol of electricity tampering flashes.
Meter has the function of detecting the imbalance of two circuits. The indicator symbol of electricity tampering flashes when the current is unbalanced between live wire and neutral wire.
The meter supports Bluetooth, RS485 local upgrade and 4G remote upgrade, which can update the firmware in time.
Specifications
| Main |
|
|---|---|
| Range | D11 |
| Model NO. | D114071-HPLCD114071-HPLCD114071-HPLCvHPLCD114071-HPLC D114071-HPLCD114071-HPLC |
| Product or Componet Type | Energy meters |
| Country of origin | China |
| Complementary |
|
|---|---|
| Phase | Single Phase |
| Device Application | Prepayment Meter |
| Accuracy class | Class1.0 active energy IEC62053-21 |
| Rated voltage | 230V |
| Network Frequency | 50Hz |
| Current | 5(100)A |
| Pulse constant |
1000imp/kWh |
| Starting current | 0.4%Ib |
| Power consumption |
≤10VA ≤2W |
| Technology Type | Electronic |
| Display Type | LCD 6+2 |
| Communication port protocol | IDIS |
| Communication port support | HPLC/Bluetooth/RS485（baud rate 115200） |
| Standards | DLMS\HPLC |
| Environment |
|
|---|---|
| Ambient air temperature for operation | -20～75℃ |
| Ambient Air Temperature for Storage | -20-80℃ |
| Relative humidity | 75% |
