ACUS-E Series Metal Enclosed Capacitor Banks
Key attributes
| Brand | ROCKWILL |
| Model NO. | ACUS-E Series Metal Enclosed Capacitor Banks |
| Rated voltage | 12kV |
| Rated frequency | 50/60Hz |
| Capacity | 30 MVAr |
| Series | ACUS-E Series Metal Enclosed Capacitor Banks |
Product descriptions from the supplier
Overview
The ACUS E-Series MECB consists of a compact modular enclosure that combines primary components with secondary control and protection equipment. The system can be either configured as fixed or switched, with the switched bank consisting of single or multiple steps, automatically controlled to improve power factor.
ACUS E-Series MECB is available in a range of models and is suitable for voltages up to 38 kV. It is fully assembled and factory tested in an ISO 9001 and ISO 14001 environment.
The design of the ACUS E-Series MECB provides a solution suitable for electrical distribution utilities, integrators of renewable power e.g. wind or solar farm integrators and large industrial power users including mining, pulp and paper, chemical, petrochemical, plastics, cement and heavy industries.
Incomer module
● Incoming cable termination busbars
● Isolator/ earth switch
● Surge arresters
● Circuit breakers
● Protection voltage transformers
● Line current transformers
● Control voltage transformers
● Live line indication
Power module
● Capacitors
● Inrush, detuning or filter reactors
● HRC fuses
● Contactors
● Pressure switches
● Earthing stick
● Safety interlocks
● Lights
● Heaters
● Cooling fans
● Thermostats
Control cubicle
● Power factor controller with modbus communication
● Safety interlock keys
● Over current/ earth fault protection relay
● Unbalance protection relay
● Unbalance/ overload protection relay
● Under/ overvoltage protection relay
● Local/ remote and manual/ automatic switching

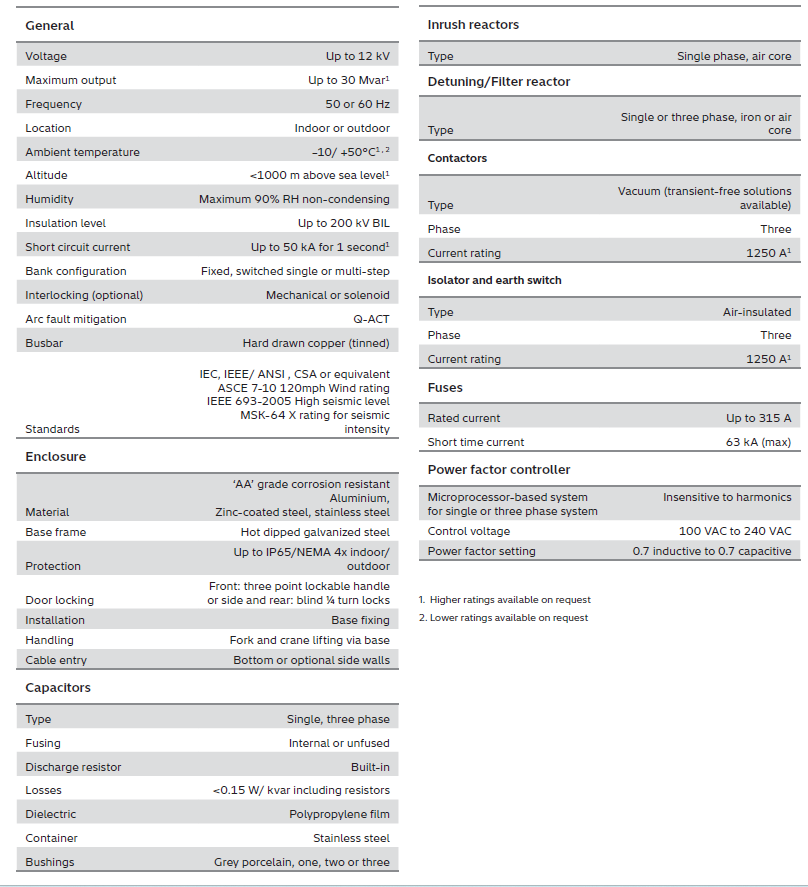

Technology parameters
