Analysis of Insulator Discharge Phenomena and Systematic Solutions
- In-depth Analysis of Discharge Causes
- Surface Contamination Ionization
o Mechanism: Contaminants (salt dust, chemical deposits) electrolyze in humid environments, forming conductive channels.
o Critical Threshold: Leakage current surges when relative humidity >75% and contamination density >0.1mg/cm². - Water Droplet-Induced Electric Field Distortion
o Mechanism: Raindrops accumulate on shed edges, causing localized electric field strength to exceed limits (>3kV/cm), triggering corona discharge. - Material and Structural Defects
o Mechanism: Internal voids/cracks induce partial discharge (PD >20pC), leading to insulation failure through cumulative damage.
II. Quantitative Assessment of Discharge Impacts
|
Impact Dimension |
Specific Manifestation |
Risk Level |
|
Equipment Damage |
Glaze carbonization, hardware erosion (>800℃) |
⭐⭐⭐⭐ |
|
Electromagnetic Interference |
30-300MHz noise exceeding 40dB |
⭐⭐⭐ |
|
System Stability |
Single flashover causing >15% grid voltage drop |
⭐⭐⭐⭐⭐ |
III. Full-Chain Solutions
- Preventive Maintenance System
• Smart Cleaning Cycle: Dynamically adjust cleaning thresholds based on ESDD monitoring (recommended NSDD ≤0.05mg/cm²).
• Hydrophobicity Restoration: Apply RTV Type II anti-pollution flashover coating (contact angle >105°). - Active Protection Design
• Aerodynamic Optimization: Adopt variable-diameter shed structure to boost water droplet shedding efficiency by 70%.
• Electric Field Grading: Install grading rings (field gradient ≤0.5kV/cm). - Condition Monitoring & Replacement Criteria
Implement a three-tier diagnostic protocol:
(1) Infrared Thermography: Trigger ultraviolet (UV) imaging if localized hotspots show ΔT >15°C above ambient (per IEEE 1313.2).
(2) Discharge Pattern Validation: Use UV imaging to confirm corona distribution.
(3) Discharge Quantification: If UV detects anomalies, conduct ultrasonic PD detection. Replacement is mandated when: - PD >100pC (DL/T 596 Standard)
- PRPD spectrum shows surface/internal defect patterns.
Non-critical cases return to routine monitoring.
IV. Technology Upgrade Path

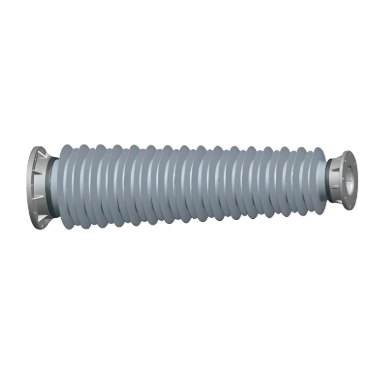

• Material Revolution: Replace ceramic with composite insulators (arc resistance >250s, autonomous hydrophobicity transfer).
• Digital Twin Integration: Embed RFID chips + 3D electric field simulation to achieve ≤5% lifespan prediction error.
Conclusion
Coordinated contamination classification, structural optimization, and smart diagnostics reduce insulator discharge failures to 0.03 incidents/100km·year (IEEE 1523 Standard), significantly enhancing grid intrinsic safety.
Core Advantages
- Cost Efficiency: Preventive maintenance costs 5.8× lower than post-failure repairs.
- Adaptability: Compatible with 35kV~1000kV voltage classes.
- Future-Proofing: Supports IoT integration for smart substations.
