Solid insulated ring main unit accessories 260 umbrella shaped sleeve seat
Key attributes
| Brand | Switchgear parts |
| Model NO. | Solid insulated ring main unit accessories 260 umbrella shaped sleeve seat |
| Rated voltage | 12kV |
| Rated normal current | 630A |
| Series | 260 |
Product descriptions from the supplier
The 260 umbrella shaped bushing seat is a specialized insulation support accessory for 12kV/24kV SF6 free solid insulated ring main unit. Its core is used for fixing and insulation protection of bushing components, and is compatible with the installation requirements of the 260 specification.
Core Features
Made of solid insulation material, free from SF6 gas pollution, in line with green distribution and environmental protection requirements, with stable insulation performance.
Umbrella shaped structure design enhances creepage distance and anti pollution flashover capability, suitable for complex environments such as outdoor and industrial plants.
The size accurately matches the 260 specification sleeve, with a compact structure and high mechanical strength, firmly fixed without looseness.
Resistant to aging and corrosion, with excellent sealing protection, easy installation, and long-term stability of casing operation.
Applicable scenarios
Suitable for 12kV/24kV SF6 free solid insulated ring main unit, used to support fixed incoming and outgoing line sleeves, PT sleeves and other components, widely used in medium voltage distribution systems such as urban distribution networks, industrial distribution, and new energy power stations.

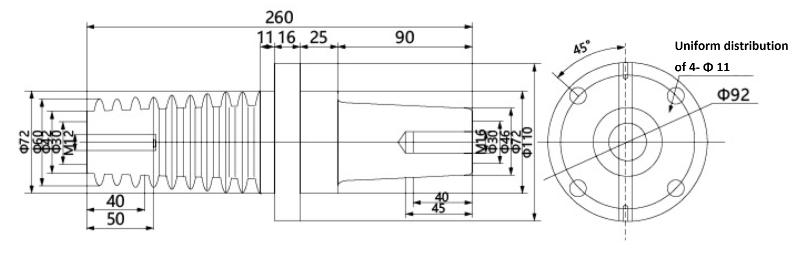

Product dimensions
