LZZ7-36 36kV Indoor Single-Phase Current Transformer

Name: LZZ7-36 36kV Indoor Single-Phase Current Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1514
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	LZZ7-36 36kV Indoor Single-Phase Current Transformer
Rated frequency	50/60Hz
Rated insulation voltage	36kV
Rated current ratio	500/5
Series	LZZ

Description

Product Overview

36kV Indoor Single-Phase Epoxy Resin Type Casting resin and full-enclosed support type product. It is used indoor for metering current and electric energy,protective relaying in the electrical system of rated frequency 50Hz or 60Hz and highest voltage for equipment 36kV(Up to 40.5kV). The transformers can be executed according to the IEC standards.

Technical Data

Rated insulation level: 36/70/170kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 60044-1 & (IEC61869-1&2)

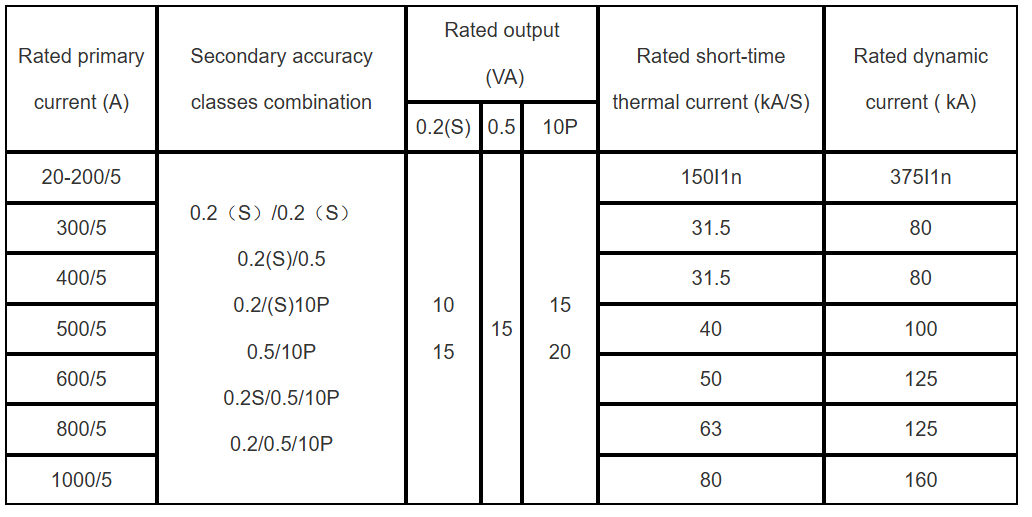

Specification

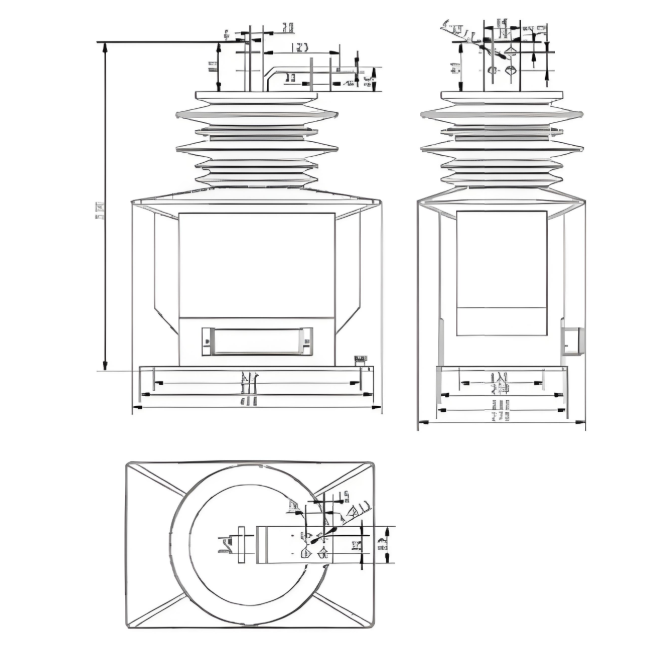

Outline
