  • LZZB-36 36kV Indoor Single-Phase Epoxy Resin Type Current Transformer
LZZB-36 36kV Indoor Single-Phase Epoxy Resin Type Current Transformer
discuss personally
Model
LZZB-36
Basic info Product Detail Supplier
Basic info
Brand Wone Store
Model NO. LZZB-36 36kV Indoor Single-Phase Epoxy Resin Type Current Transformer
Rated frequency 50/60Hz
Rated current ratio 500/5
Series LZZB
Product Detail

Product Overview

36kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting and belongs to support type full-closed structure. The product can have three secondary windings and each winding can have tap. The product has large external insulation creepage distance and withstands dirtiness and ultraviolet radiation. Be suitable for matching with outdoor 36kV(Up to 40.5 kV) sulphur hexafluoride breaker for measuring electric energy, current and protective relaying.

Technical Data

  • Rated insulation level: 36/70/170kV
  • Rated frequency: 50/60Hz
  • Installation site:  Indoor
  • Technical standard: IEC 60044-1 & (IEC61869-1&2)

Specification

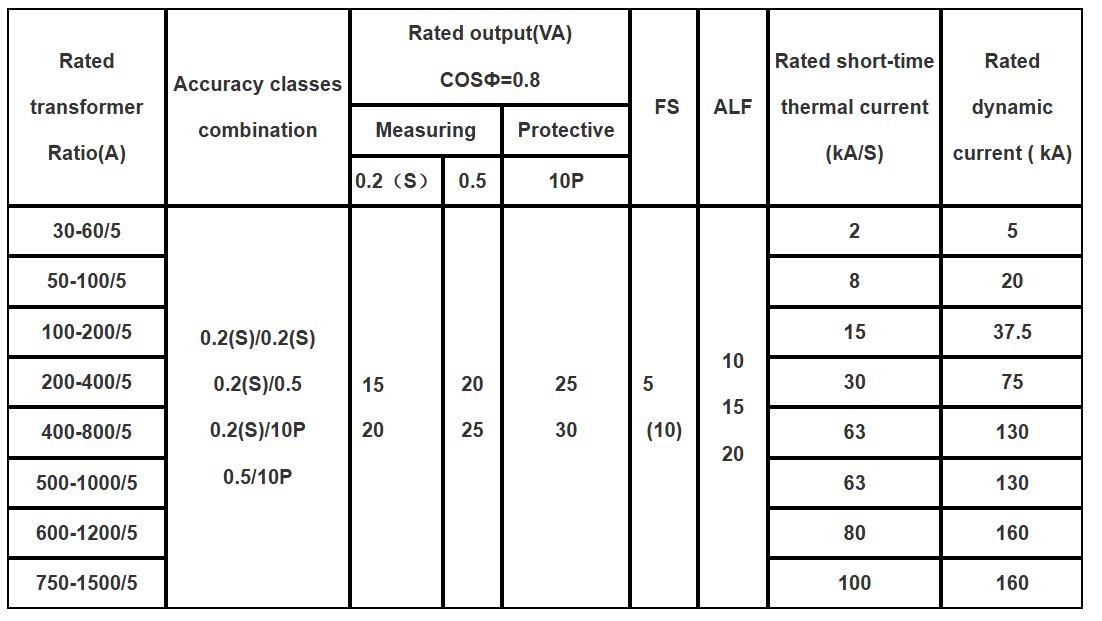

Single ratio

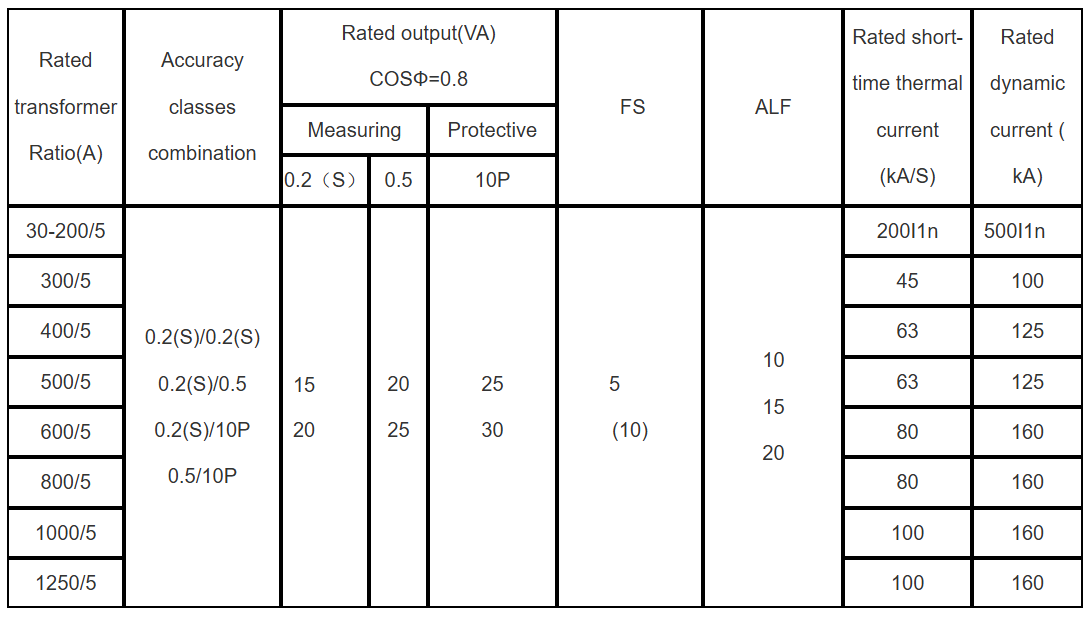

Double ratio

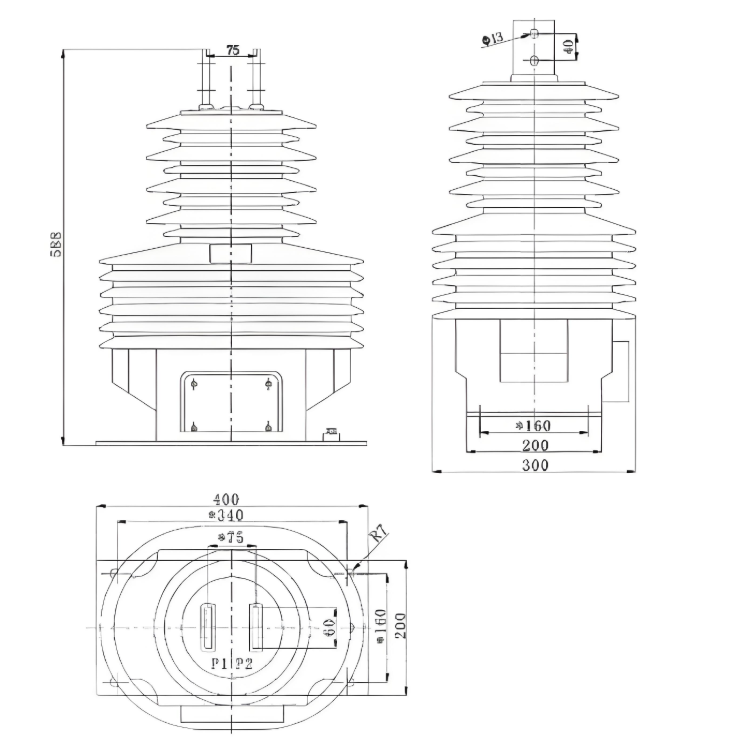

Outline
