LFS-12 12kV Indoor Single-Phase Epoxy Resin Current Transformer

Name: LFS-12 12kV Indoor Single-Phase Epoxy Resin Current Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 2007
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	LFS-12 12kV Indoor Single-Phase Epoxy Resin Current Transformer
Rated frequency	50/60Hz
Rated insulation voltage	12kV
Series	LFS

Description

Overview

Epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has two secondary windings (one measuring winding and one protective winding). It is widely used for measuring current,electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

Technical Data

Rated insulation level: 12/28/75kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 60044-1(IEC 61869-1&2)

Specification

Rated current ratio(A)	Secondary accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
5~200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15	5 (10)	10	80I1n	200I1n
300/5							20	50
400/5							30	75
500/5							30	75
600/5							40	80
800/5							40	80
1000/5							63	105

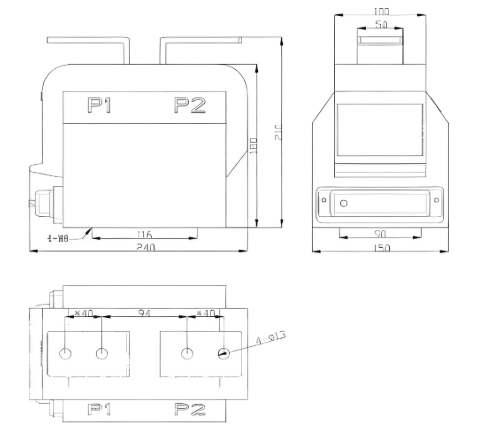

Outline
