JDZW2-12RF 12kV Outdoor Single-Phase Epoxy Resin Type Voltage Transformer

Name: JDZW2-12RF 12kV Outdoor Single-Phase Epoxy Resin Type Voltage Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1490
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	JDZW2-12RF 12kV Outdoor Single-Phase Epoxy Resin Type Voltage Transformer
Rated frequency	50/60Hz
Primary voltage	11kV
Secondary voltage	110V
Series	JDZW

Description

Product Overview

Outdoor epoxy resin casting and full-closed construction, is widely used for measuring current, electric energy and protective relaying in the single-phase or three phase power system with the frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

Technical Data

Installation site:Outdoor
Rated Frequency:50/60Hz
Burden power factor:CosΦ=0.8（lagging）
Technical standard accords with IEC 61869-1:2007, IEC 61869-3:2011

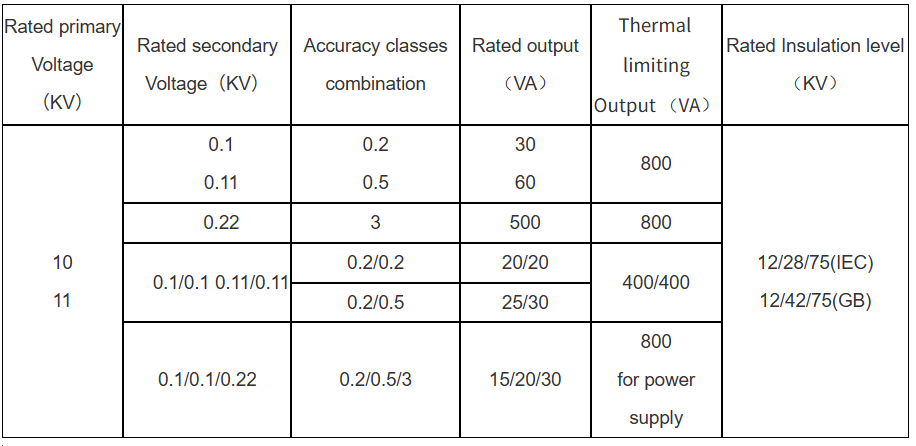

Specification

Note：Upon request we are glad to offer transformers according to other technical specs.

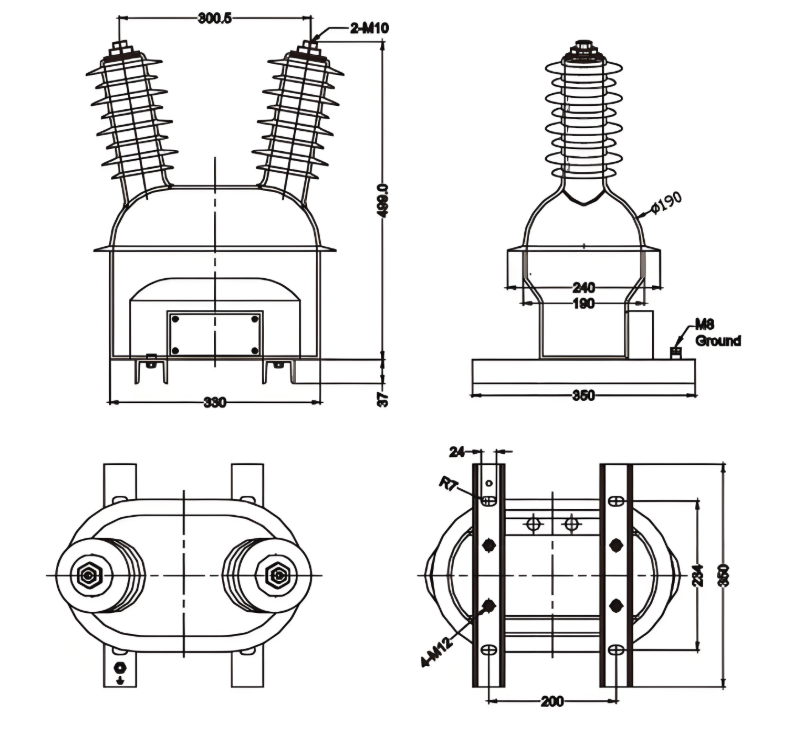

Outline Drawing
