LZZBJ9-24-180b/2 Current Transformer

Name: LZZBJ9-24-180b/2 Current Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1519
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	LZZBJ9-24-180b/2 Current Transformer
Rated frequency	50/60Hz
Rated insulation voltage	24kV
Rated current ratio	500/5
Series	LZZBJ

Description

Product Overview

LZZBJ9-24-180b/2 、LZZBJ9-24-180b/4 Current Transformer 24kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting insulation and fully enclosed support construction, encloses primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight, omnidirectional installation, withstanding nastiness and dampness. It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 17.5(24) kV

Technical Data

Rated insulation level: 24/50/125kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 60044-1 & (IEC61869-1&2)

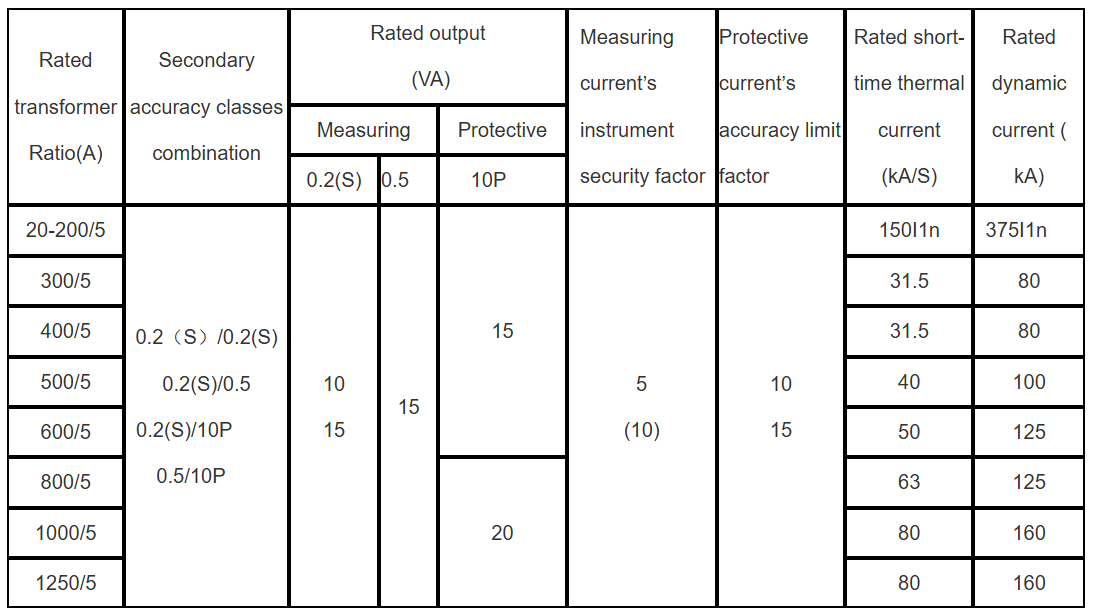

Specification

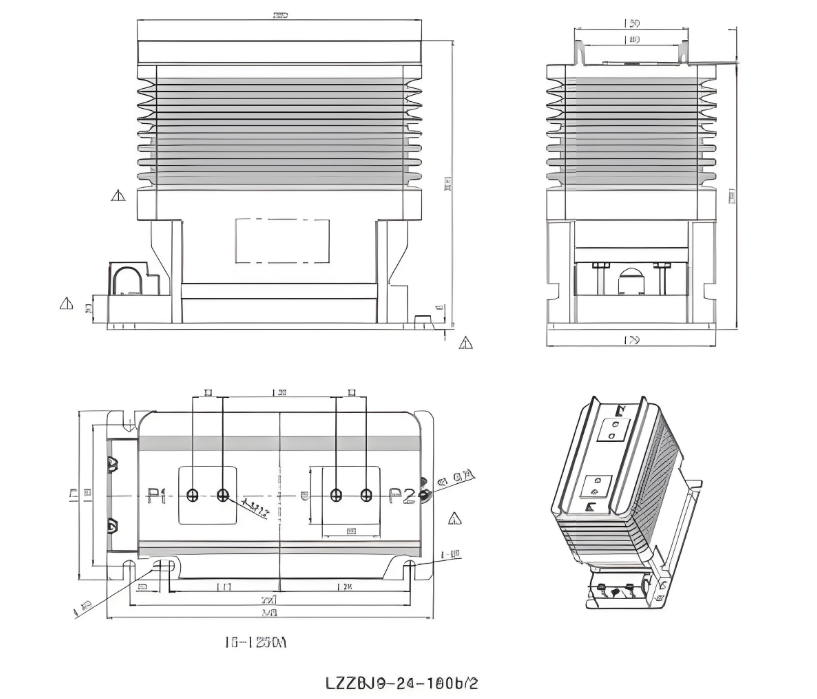

LZZBJ9-24/180b/2

LZZBJ9-24-180b/2 Current Transformer

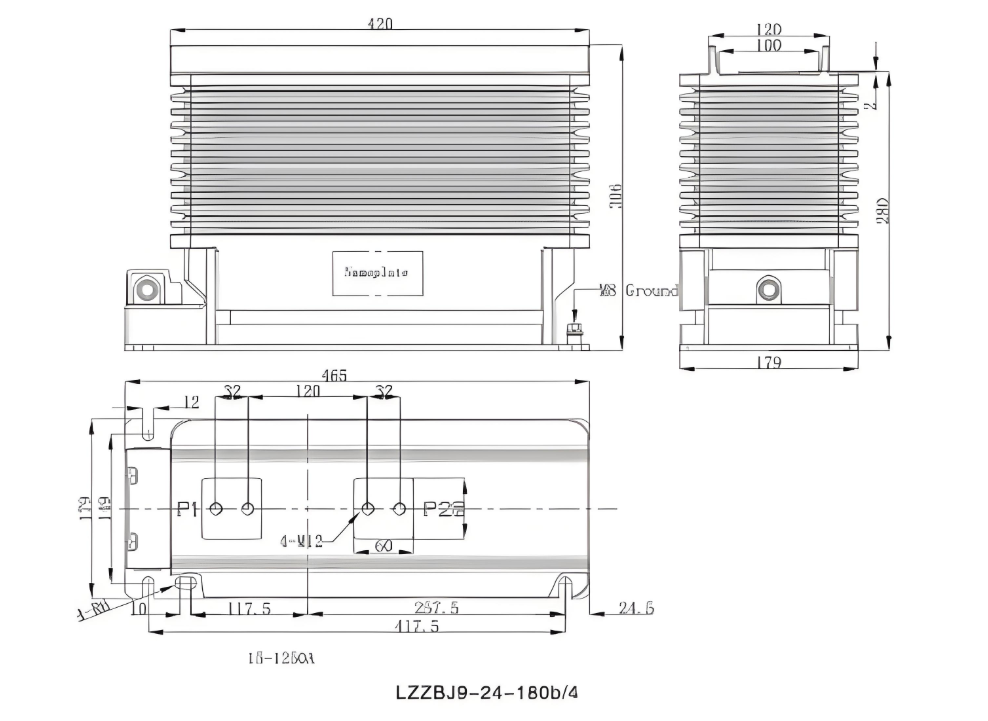

LZZBJ9-24-180b/4

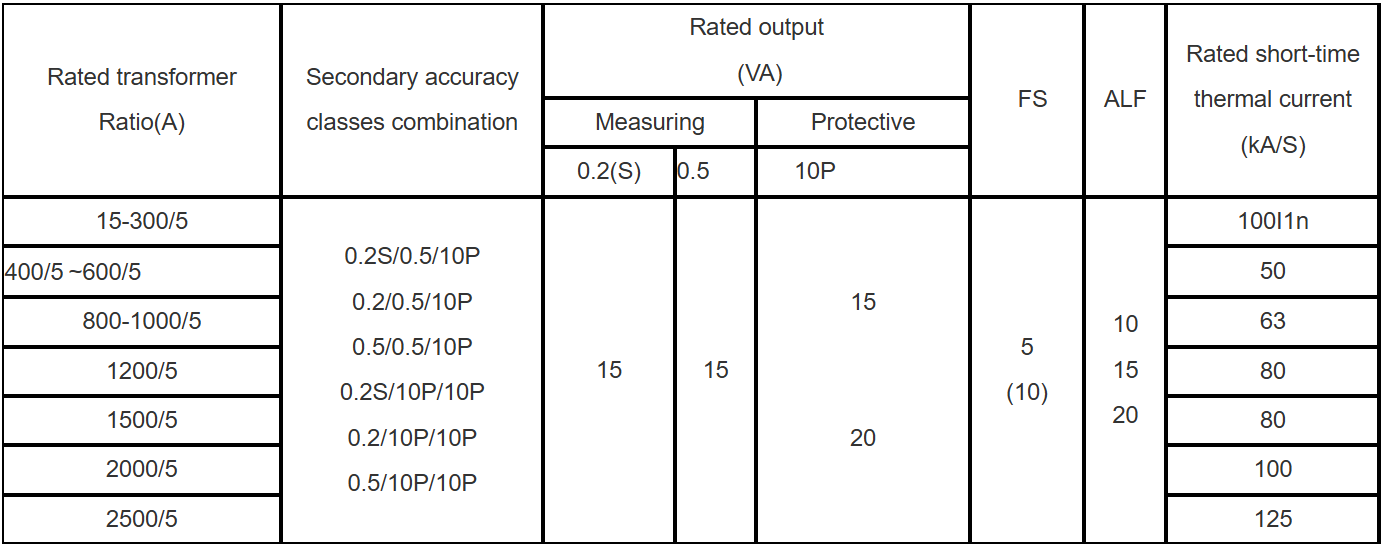

Three secondary single ratio

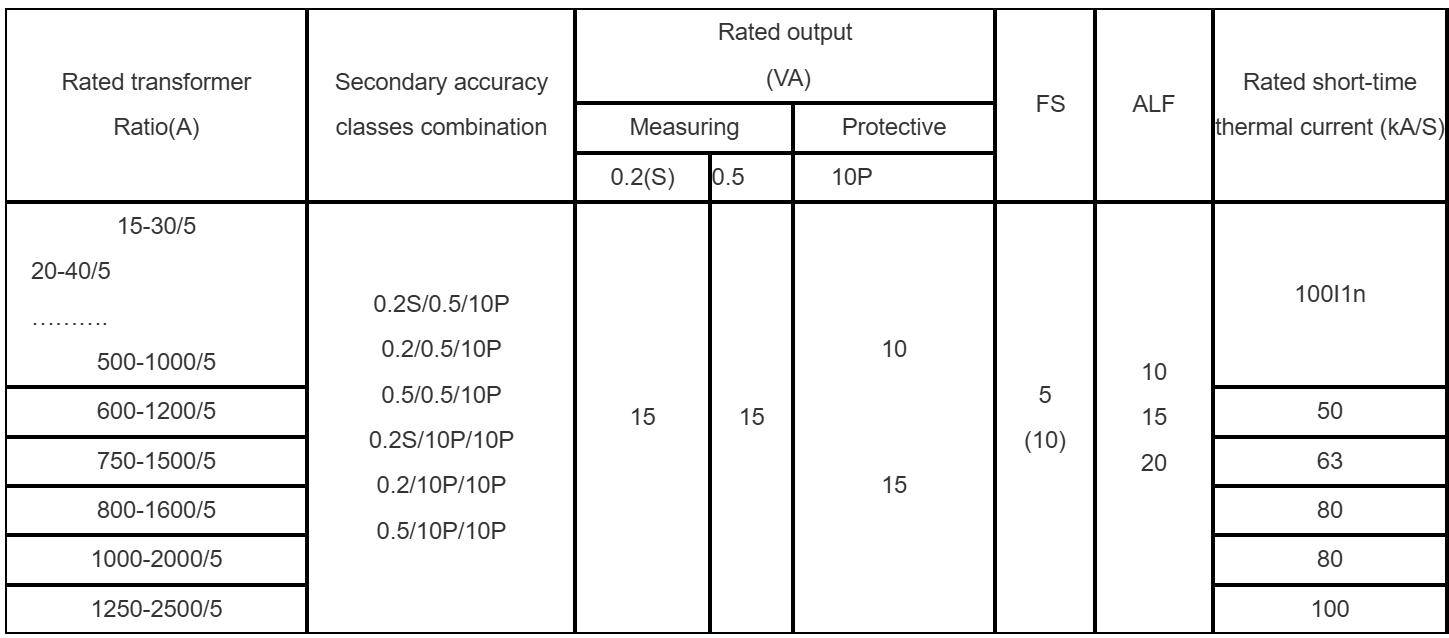

Three secondary double ratio

Outline
