LZZBJ9-36 36kV Indoor Single-Phase Current Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LZZBJ9-36 36kV Indoor Single-Phase Current Transformer
Rated frequency	50/60Hz
Rated insulation voltage	36kV
Rated current ratio	600/5
Series	LZZBJ

Product Detail

Product Overview

36kV Indoor Single-Phase Epoxy Resin Type Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body. The product has large periphery insulation creepage distance, withstanding dirtiness and dampness. Be suitable for measuring electric capacity, current and protective relaying in the power system of 36kV.

Technical Data

Rated insulation level: 36/70/170kV
Rated frequency: 50/60Hz
Installation site: Indoor
Technical standard: IEC 60044-1 & (IEC61869-1&2)

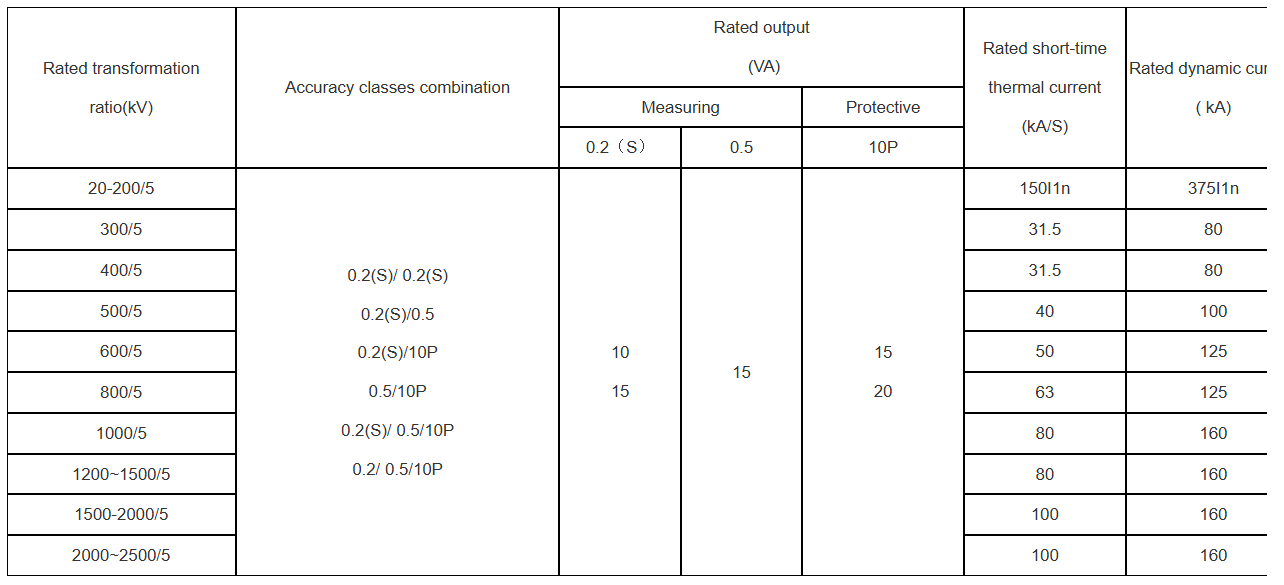

Specification

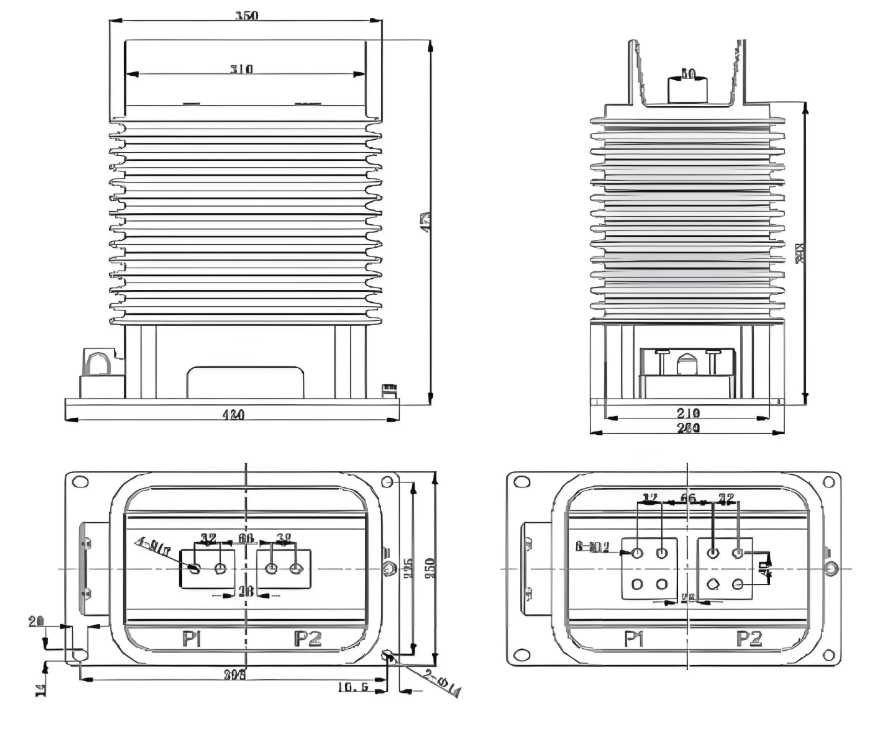

Outline
