LZZW-17.5(24)TH Outdoor Current Transforme

discuss personally

Model

LZZW-17.5 (24) TH

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LZZW-17.5(24)TH Outdoor Current Transforme
Rated voltage	20kV
Rated frequency	50/60Hz
Rated current ratio	400/5
Series	LZZW

Product Detail

Product Overview

LZZW-17.5(24)TH outdoor support type current transformer with epoxy cast resin insulation. The product can have four secondary windings and each winding can have tap. The product has large external insulation creepage distance, withstands dirtiness and ultraviolet radiation. Be suitable for measuring current, electric energy and protective relaying in the electrical system of highest voltage for equipment 17.5(24)kV.

Main technical parameter

Rated voltage: 13.8 kV or 15 kV or 20kV or 22kV etc
Rated secondary current:5Aor1A
Rated insulation level:17.5/38/95 kV or 24/50/125kV
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers

Other technical parameter pls see as follow:

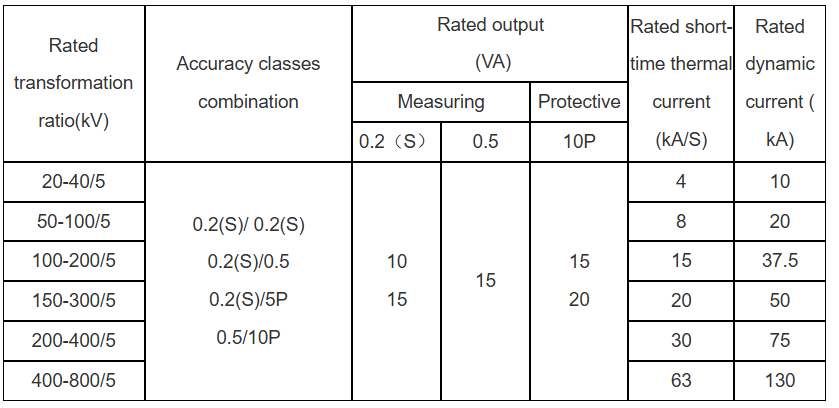

Single ratio

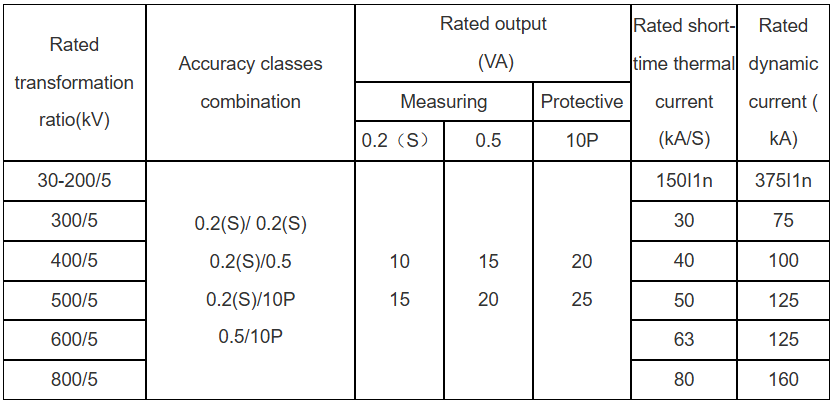

Double ratio

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

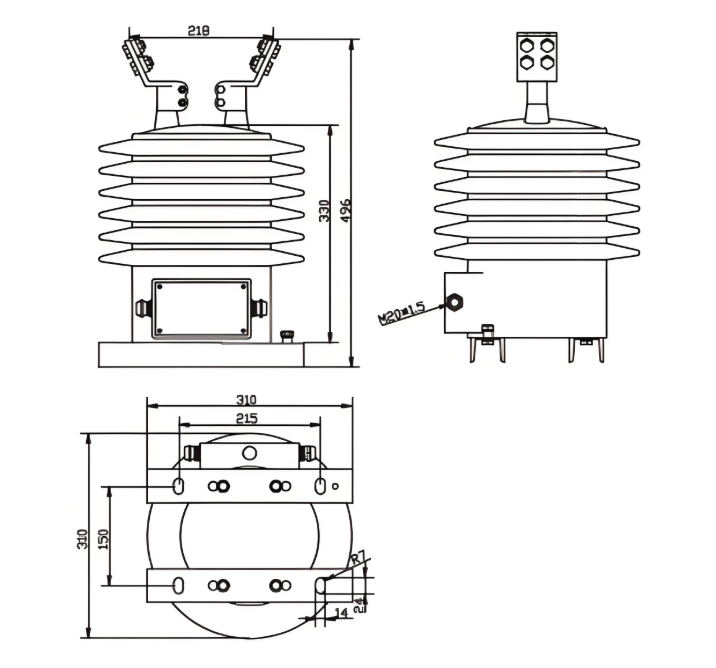

Outline Drawing
