LZZBW-12(17.5) Outdoor Current Transformer

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	LZZBW-12(17.5) Outdoor Current Transformer
Rated voltage	11kV
Rated frequency	50/60Hz
Rated current ratio	500/5
Series	LZZBW

Product Detail

Product Overview

LZZBW-12(17.5) Outdoor Current Transformer supports 12kV and 17.5kV dual voltage, meeting the needs of multi-scene applications such as outdoor substations and overhead lines. It has IP68 protection level, with excellent resistance to ultraviolet rays, salt spray and extreme temperatures, ensuring stable operation in harsh environments. Equipped with 0.2S class metering winding and 5P20 class protection winding, it provides high-precision measurement and rapid fault response, and is easy to install and maintain, making it a reliable choice for outdoor power systems.

Main technical parameter

Rated voltage: 11kV or 13.8kV or 15kV
Rated secondary current:5Aor1A
Standards: IEC60044-1.2003 Part 1: Instrument transformers-Part1: Current transformers

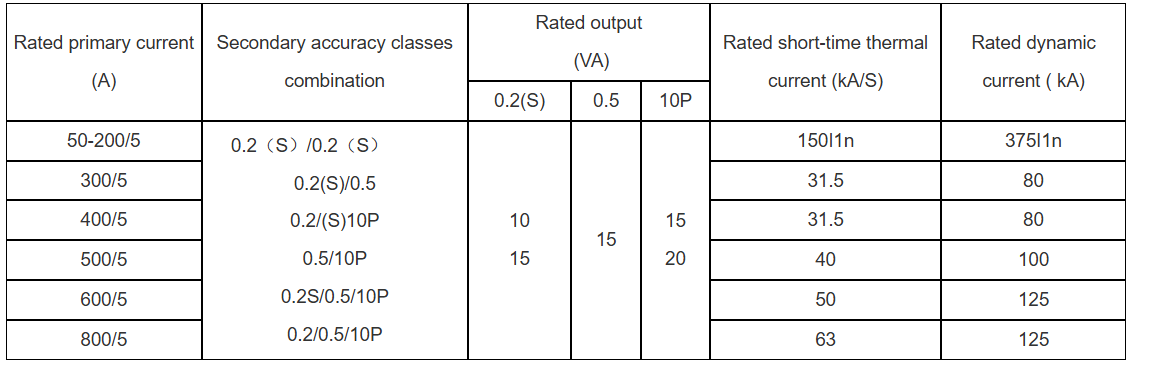

Other technical parameter pls see as follow:

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

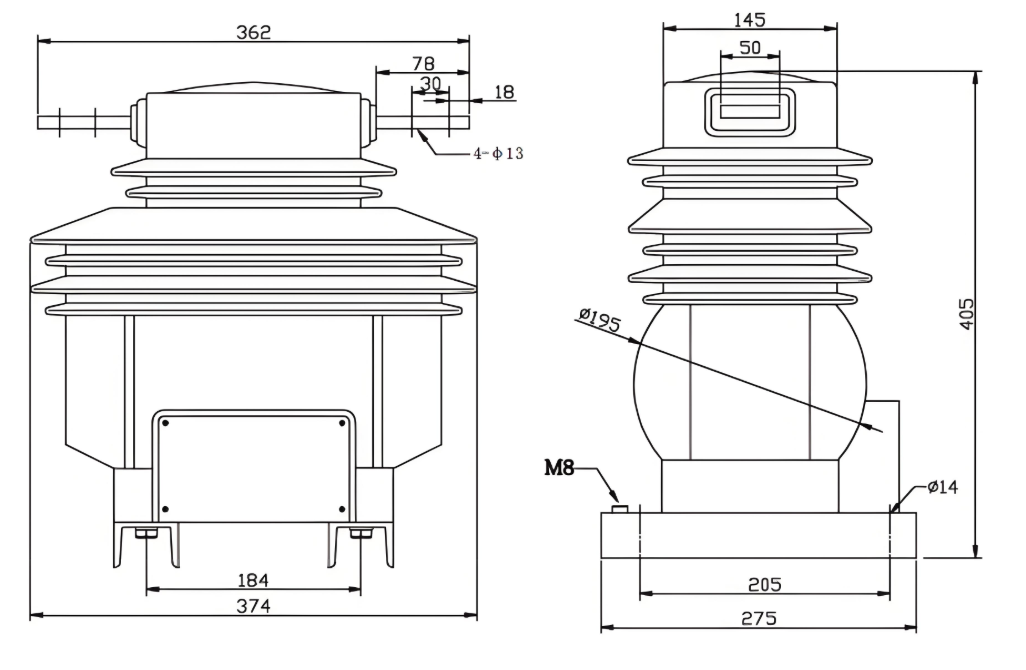

Outline drawing
