  • LZZW2-17.5 Current Transformer
LZZW2-17.5 Current Transformer
discuss personally
Model
LZZW2-17.5
Basic info Product Detail Supplier
Basic info
Brand Wone Store
Model NO. LZZW2-17.5 Current Transformer
Rated voltage 17.5kV
Rated frequency 50/60Hz
Rated current ratio 400/5
Series LZZW
Product Detail

Product Overview

LZZW2-17.5 outdoor support type current transformer with epoxy cast resin insulation. The product can have four secondary windings and each winding can have tap. The product has large external insulation creepage distance, withstands dirtiness and ultraviolet radiation. Be suitable for measuring current, electric energy and protective relaying in the electrical system of highest voltage for equipment 17.5kV.

Technical Data

  • Rated insulation level:17.5/38/95 kV (IEC), 12/42/75 kV (GB)
  • Rated frequency:50/60Hz
  • Installation site: Outdoor
  • Technical standard:IEC 61869-1:2007, IEC 61869-2:2012

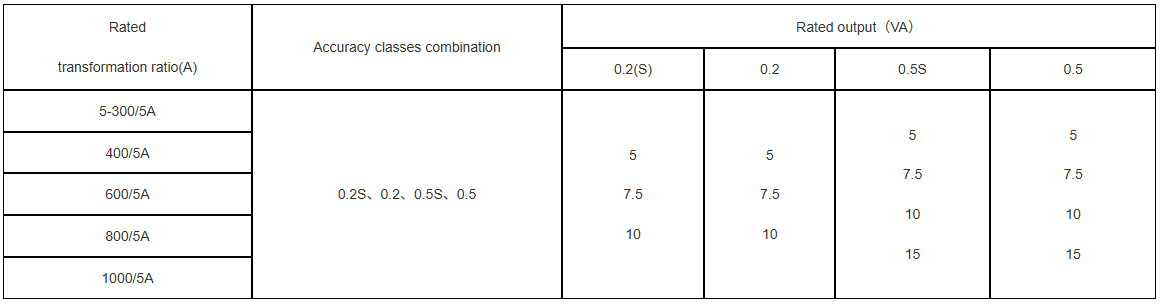

Specification

Note：Upon request we are glad to offer transformers according to other technical specs.

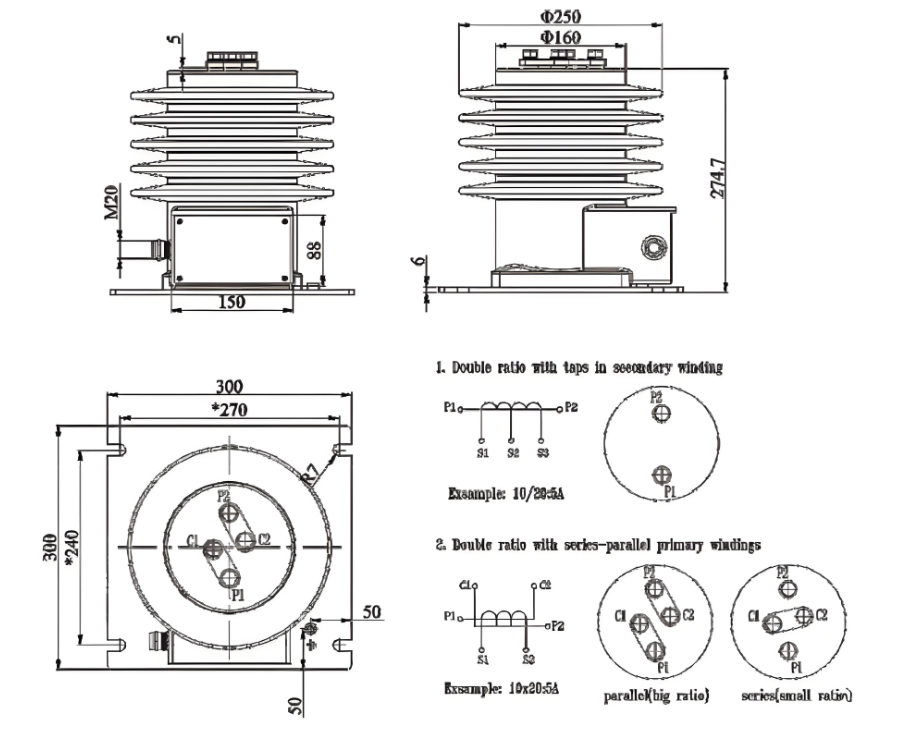

Outline Drawing
