LZZW3-12 12kV Outdoor Single-Phase Epoxy Resin Type Current Transformer

Name: LZZW3-12 12kV Outdoor Single-Phase Epoxy Resin Type Current Transformer
Brand: Yueqing HK Electrical Trading Co., Ltd.
SKU: 1473
Availability: InStock

Yueqing HK Electrical Trading Co., Ltd.

9yrs 100+ staff 1000+m² US$300000000+ China

Attributes Description Documentation Resource Library Supplier

Key attributes

Brand	HK Electrical
Model NO.	LZZW3-12 12kV Outdoor Single-Phase Epoxy Resin Type Current Transformer
Rated voltage	12kV
Rated frequency	50/60Hz
Rated current ratio	200/5
Series	LZZW

Description

Product Overview

LZZW3-12 outdoor support type current transformer with epoxy cast resin insulation. The product can have four secondary windings and each winding can have tap. The product has large external insulation creepage distance, withstands dirtiness and ultraviolet radiation. Be suitable for measuring current, electric energy and protective relaying in the electrical system of highest voltage for equipment 12kV.

Technical Data

Rated insulation level: 12/42/75 kV（GB）or 17.5/38/95 (IEC)
Rated frequency: 50/60Hz
Installation site: Outdoor
Technical standard:IEC 61869-1:2007, IEC 61869-3:2011

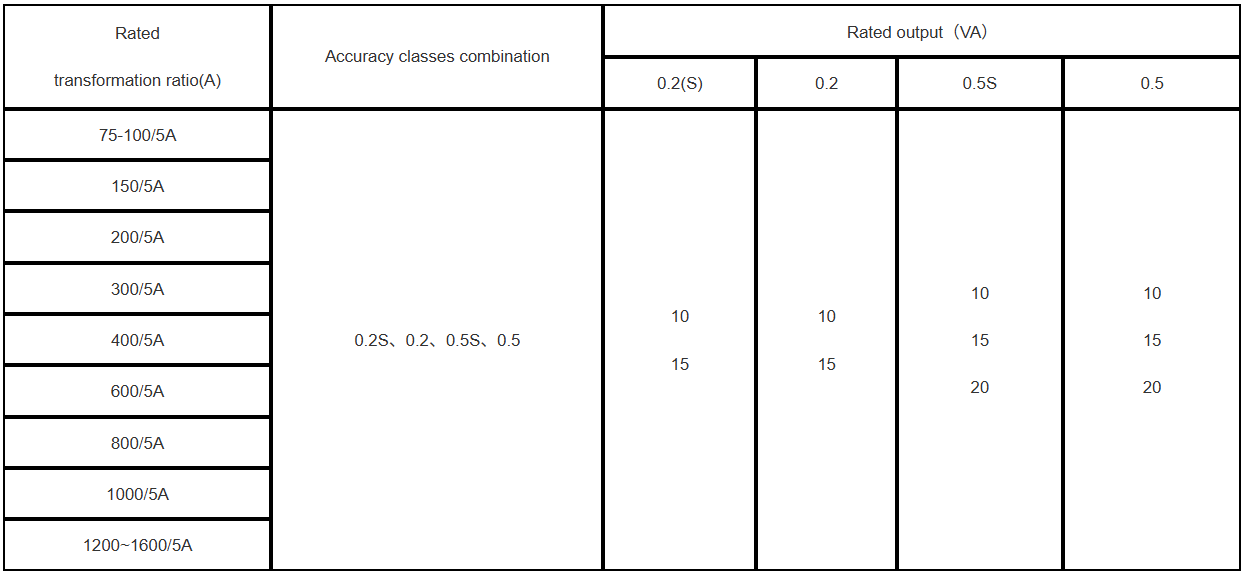

Specification

Note：Upon request we are glad to offer transformers according to other technical specs.

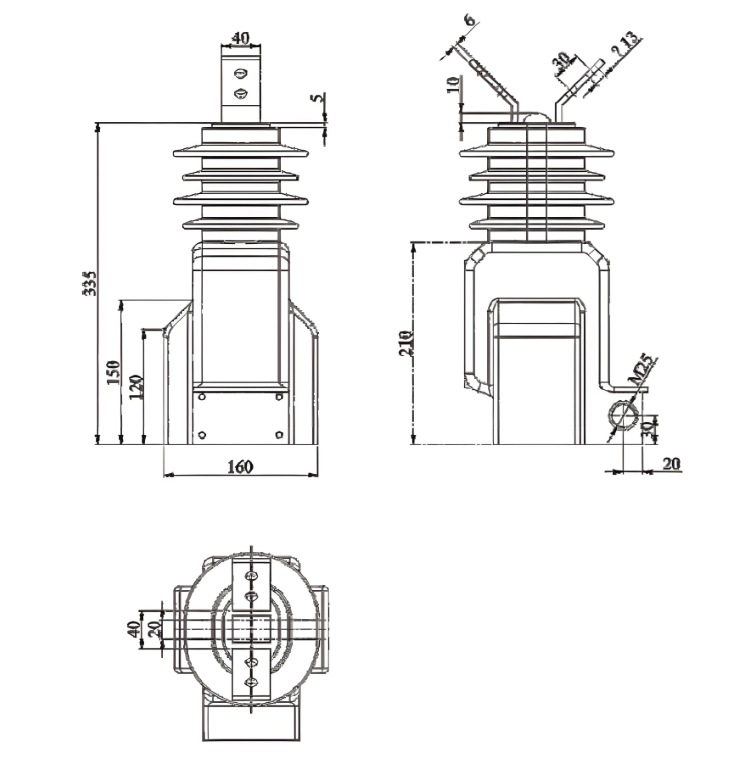

Outline Drawing
