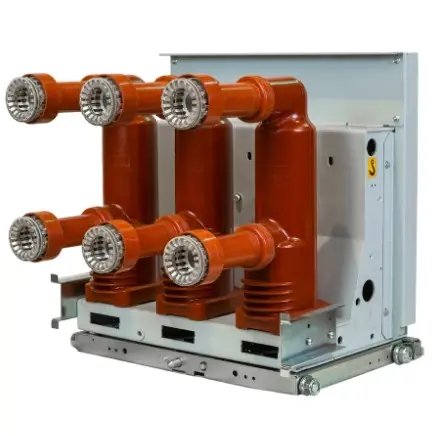

High-performance 10kV Vacuum Circuit Breaker with indoor installation
Key attributes
| Brand | ROCKWILL |
| Model NO. | High-performance 10kV Vacuum Circuit Breaker with indoor installation |
| Rated voltage | 10kV |
| Rated frequency | 50Hz |
| Series | VS1 |
Product descriptions from the supplier
VS1-10 Vacuum Circuit Breaker with indoor installation is intended to protect electrical equipment on factories, plants, power stations and transformer sub-stations in AC networks with insulated or earthed neutral through an arc suppression coil or resistor, with 10kV of voltage and 50Hz of frequency. Comply with GOST 52565-2006 Alternating-current circuit-breakers for voltages from 3 to 750 kV.
Description
Vacuum Circuit Breakers 10kV are used in electric installations for electric circuits switching. They operate basing on the principle of vacuum contact breakaway in the space between stops. Vacuum Circuit Breaker 10 kV protects electrical equipment against overload and short-circuit.
Vacuum Circuit Breakers VS1-10 are used in switchgears with voltage up to 10kV. In switchgears where electrical circuits are assembled and controlled, vacuum circuit breakers are used to control the electric current and ensure the safe operation of the electrical network.
Vacuum circuit breaker for switchgears create switching of electrical circuits in the switchgear and also detect malfunctions in the equipment.
Vacuum circuit breakers are used in industrial electrical installations. They protect electrical equipment on plants, power stations in AC networks through arc-supression coil with frequency of 50Hz. The choice of type or brand of vacuum circuit breaker depends on the electrical system. Several factors are taken into account when purchasing: power, voltage, additional features and functions.
ВВ-СВЭЛ-10 features a linear design that significantly reduces the space required for its installation. Vacuum circuit breaker also has a high vacuum level for safe operation of electrical devices. In addition, the vacuum circuit breaker has a rated current of up to 630 A, which allows it to be used in various switching distribution devices. In general, vacuum circuit breaker is a convenient and reliable tool in electrical engineering, which is used in a wide range of applications. It ensures safe operation of the electrical network in areas where switching of electric current at voltages up to 10 kV is required.
Specification
| Parameter | Value |
| Rated voltage, kV | 10 |
| Maximum operating voltage, kV | 12 |
| Rated current, A | 630, 1000, 1250, 1600, 2000, 2500, 3150, 4000 |
| Rated breaking current, kA | |
| – peak withstand current, kA | 51, 63, 81, 102 |
| – thermal stability current, kA | 20, 25, 31,5, 40 |
| – short-circuit current flow time, s | 3 |
| Rated power voltage for control circuits and auxiliary circuit elements, V | ~110, ~220, =110, =220 |
| Rated voltage of the control circuits of the motorized hardware cart, V | =220 |
| Rated voltage of the minimum voltage trip unit, V | ~110, ~220 |
| Rated current of control circuits, A, not more than: | |
| – closing / opening release | 1 |
| – overcurrent trip units | 3; 5 |
| Operating voltage range of control circuits (AC / DC), % of Ur: | |
| – closing release | 70–115 / 85–105 |
| – opening release | 65–120 / 70–110 |
| – power spring windup electric motor | 85–110 |
| Main circuit insulation test voltages, kV: | |
| – one minute, 50Hz frequency | 42 |
| – lightning impulse 1.2/50 µs | 75 |
| Opening time, ms, not more than | 20-50 |
| Closing time, ms, not more than | 30-70 |
| Diversity of contacts when closing / opening, ms, not more than | 2 |
| Mechanical durability (quantity of closing-tpause-opening cycles), not more than: | |
| – for 630; 800; 1000; 1250; 1600 А breakers | 10000 |
| – for 2000; 2500; 3150; 4000 А breakers | 10000 |
| Switching durability (quantity of closing-tpause-opening cycles), not more than: | |
| – for 630; 800; 1000; 1250; 1600 А breakers | 10000 |
| – for 2000; 2500; 3150; 4000 А breakers | 10000 |
| Switching durability (quantity of closing-tpause-opening cycles) | 50 |
| Service life, at least | 30 |
Benefits
- Vacuum arc blowout technology.
- High switching and mechanical durability.
- Advantageous supplier warranty.
- The variability of the equipment is determined by the customer's needs.
- Safe, reliable and modern design.
- Manufactured in Russia.
- Switchgear development for any rating on one type of circuit breaker.
- Supply of circuit breakers as part of SVEL switchgears cells guarantees maximum efficiency and life cycle of operation.
- Easy interchangeability with European analogs without loss in functionality and technical characteristics.
- Balance of simplicity, reliability and functionality.
Physical Image
Online store
On-time delivery rate
Response time
100.0%
≤4h
Company overview
Workplace: 108000m²m²
Total staff: 700+
Highest Annual Export(usD): 150000000
Services
Business Type: Design/Manufacture/Sales
Main Categories: High Voltage Electrical Apparatus/Electric transformer
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
