Feeder Terminal Unit for Distribution Automation

Zhejiang Rockwell Energy Technology Co., Ltd.
13yrs + staff 30000+m² US$100000000+ China
  • Feeder Terminal Unit for Distribution Automation

Key attributes

Brand Rw Energy
Series RMR
Input voltage range AC220V±20% (50 or 60 Hz)
Output voltage range 27.0V~27.5V

Product descriptions from the supplier

Description

Products Overview

FTU is a remote terminal unit for distribution automation which controls and monitors switches on the distribution lines such as Load Break Switch, Recloser, or RMU (Ring Main Units) and measures various electrical quantities of the lineandtransmits data to control center through remote communication. The BF2 series is a new type of high-voltage switch control device that combines high-speed DSP and high- performance ARM chips. It integrates functions such as protection, measurement, control, monitoring, communication, and remote control, with high integration, flexible configuration, and user-friendly interface.

Key Features

  • Integrated multi-functions on new microprocessor based platform - Fault detection & Protection, Metering, Control, Status monitoring, Power quality monitoring.
  • Directional protection, Negative sequence protection, SEF and lots of built-in over-current protection curves including IEC,ANSI, Recloser curves.
  • 4 setting groups and automatic setting group change function.
  • 4 quadrants energy metering & load profiling.
  • Multi-port, multi-protocol communication support (DNP3.0, DNP3.0 over TCP/IP, IEC60870-5-101/104),modem control for SCADA

Parameters

Input voltage range AC220V±20% (50 or 60 Hz)
Output voltage range 27.0V~27.5V
Battery Charging Voltage 27.0V~27.5V
Battery charging current 0.6-0.8A
Battery discharge cut-off 20.5-21.5V
Battery activation completion 22.5-23V
Battery undervoltage alarm 22-22.5V

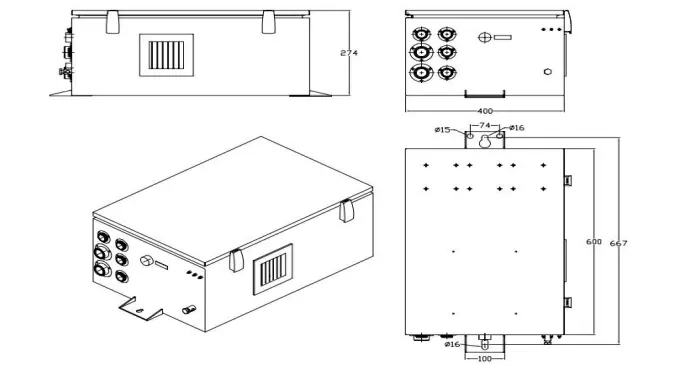

Outline & Dimension

null

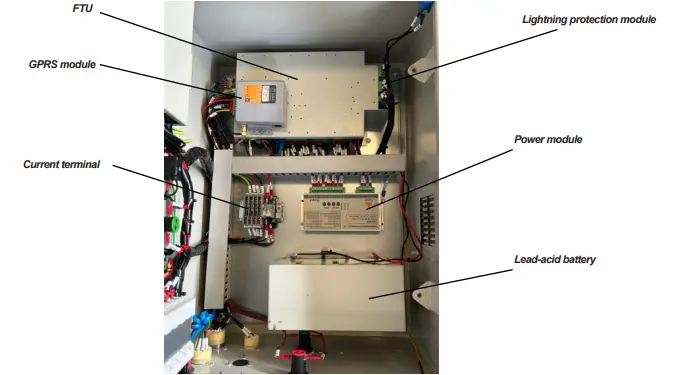

Construction

null
