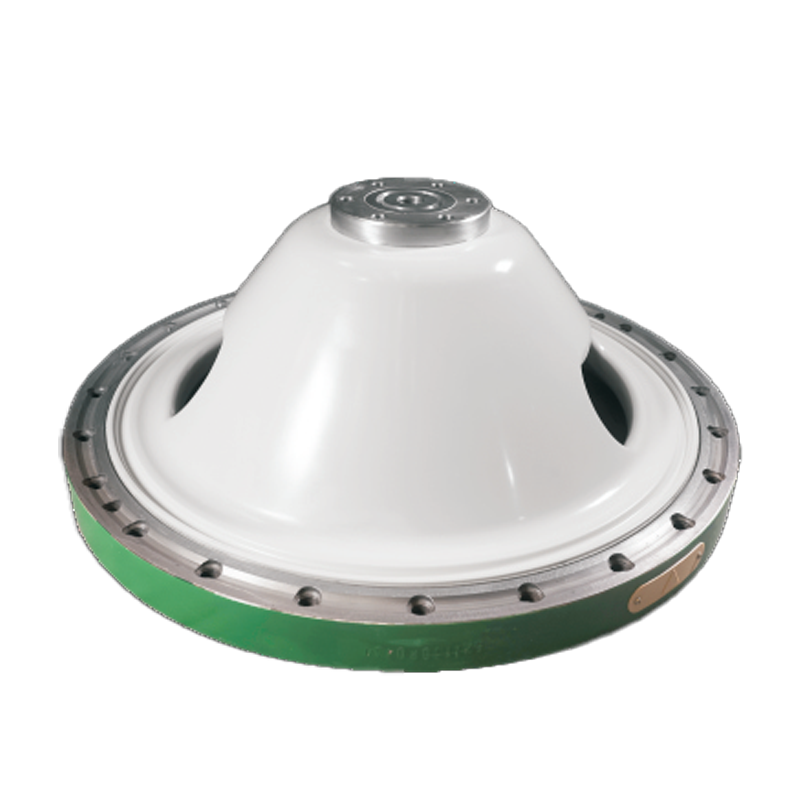

550kV single-phase bowl insulator

The 550kV single-phase bowl insulator is the core insulation component in gas insulated metal enclosed switchgear (GIS), and its design needs to meet the requirements of electric field uniformity, mechanical strength, and environmental protection under high voltage levels. The following is a comprehensive technical analysis based on the latest research:
1、 Design optimization and performance improvement
Geometry optimization
Adopting a contour design of "thick on both sides and thin in the middle", the maximum electric field strength along the concave surface is reduced by 25.4%, and the deformation is reduced by 29.9%
Optimize thickness variables (H ₁, H ₂, etc.) and contour variables (C ₁ ₂, C ₁ ∝, etc.) through genetic algorithm to balance electrical and mechanical performance
Application of dielectric gradient materials
Introducing a high dielectric constant region near the grounding flange (such as titanium dioxide filled epoxy resin) significantly improves electric field distortion and reduces SF6 gas usage by 15%
3D printing combined with casting technology achieves dielectric non-uniform structure, increasing flashover voltage by 13.8%
2、 Key parameters and experimental verification
Electrical performance
Power frequency withstand voltage 230kV, lightning impulse withstand voltage 550kV, local discharge capacity ≤ 5pC
After optimization, the flashover voltage of the insulator is increased by 13.6% compared to the conventional structure, and can still be increased by 6.7% in the presence of metal foreign objects
Mechanical performance
The maximum deformation is reduced to 0.45mm, and the interface stress is lower than the material limit (70MPa)
Verify the reliability of the structure through a water pressure failure test (1.5 times the rated pressure)
3、 Manufacturing process and environmental friendliness
Advanced technology
Using aluminum oxide/photosensitive resin 3D printing low dielectric constant body (ε=3.98-4.20), high dielectric constant area (ε=11.32-14.58) vacuum casting, no aluminum ring design simplifies the structure, reducing the risk of SF6 gas leakage
Environmental benefits
The usage of epoxy composite materials decreased by 6.1%, and the usage of SF6 gas decreased by 15%
4、 Typical application scenarios
Ultra high voltage transmission: such as 550kV GIS equipment, suitable for compact substations or high-altitude environments
GIL system: Optimized bowl insulators can reduce the maximum electric field in gas areas by 13.6%, improving the reliability of GIL operation

Note: Customization with drawings is available
