What Tests Does a Qualified Outdoor Current Transformer Need to Pass?

Oliver Watts
07/09/2025

Hey everyone, I’m Oliver, and I’ve been working in current transformer (CT) testing for 8 years.

From running around with test equipment on site to now leading full inspection teams, I’ve seen how thousands of outdoor CTs go through a whole series of tests — like going through a military training camp — before they can finally be put into service.

A few days ago, a friend asked me:

“Oliver, our factory just produced a new batch of outdoor CTs. We’re getting ready for inspection, but we’re not sure what kind of tests are required. Can you explain?”

That’s such a practical question! So today, I want to share with you:

What kinds of tests must a qualified outdoor current transformer pass before it can be approved for use?

No fancy technical terms — just plain talk based on my 8 years of hands-on experience in the lab and field. Let’s break it down!

1. First Things First: Why So Many Tests?

Don’t let the size fool you — even though a CT might look small, it plays a critical role in power system protection and metering.

Its accuracy directly affects:

  • Whether protective relays trip correctly or not;
  • Whether energy billing is fair and accurate;
  • Whether operators have a clear picture of the grid’s real-time status.

So all these tests aren’t there to make things hard — they’re there to ensure every CT can survive harsh environments — rain, sun, high voltage, extreme temperatures — and still work reliably for years.

2. Test 1: Visual & Structural Inspection — The "First Impression" Check

Sounds simple, but this step is super important!

We check:

  • Is the housing deformed, rusted, or cracked?
  • Are the terminals intact and clearly labeled?
  • Is the sealing gasket aged or improperly installed?
  • Is the nameplate complete and accurate?

These may seem minor, but overlooking them could lead to serious issues later — like water ingress, short circuits, or even explosions.

3. Test 2: Insulation Resistance Test — Can It Keep Things Separated?

This is one of the most basic electrical tests.

We measure:

  • Primary winding vs. secondary winding;
  • Primary winding vs. ground;
  • Secondary windings among each other;
  • Secondary winding vs. ground.

Using a 2500V megohmmeter, the insulation resistance should generally be no less than 1000 MΩ.

If it fails here, no need to continue — back to the factory it goes.

4. Test 3: Power Frequency Withstand Voltage Test — How Much Pressure Can It Take?

This is like the ultimate stress test!

In short, we apply a much higher AC voltage than normal operation levels (for example, 95 kV for 1 minute on a 35 kV CT) to see if the CT can withstand without breakdown.

This test checks:

  • Whether the main insulation design is reliable;
  • If there are manufacturing defects;
  • If internal discharges are likely to occur.

If it fails the withstand voltage test, that means there's a serious safety risk — repair is a must.

5. Test 4: Ratio and Polarity Test — Is the Data Accurate?

This is a core functional test.

Ratio Test

We verify whether the actual transformation ratio matches the nameplate. For example, if it says 400/5 but measures 420/5, your metering will be off — which affects billing.

Polarity Test

We confirm the relative direction between primary and secondary windings. A reversed polarity can cause differential protection to malfunction, which is a big deal.

Even if everything else passes, if this part fails — the CT is still not usable.

6. Test 5: Error Test — Just How Accurate Is It?

This is the final exam for metering-grade CTs.

We measure:

  • Ratio error;
  • Phase angle error;

Then compare the results with national standards or contract specifications to see if they fall within acceptable limits.

For example, a 0.2S class CT must have a ratio error within ±0.2% and a phase angle error within ±10 minutes of arc — otherwise, it can't be used for trade settlement.

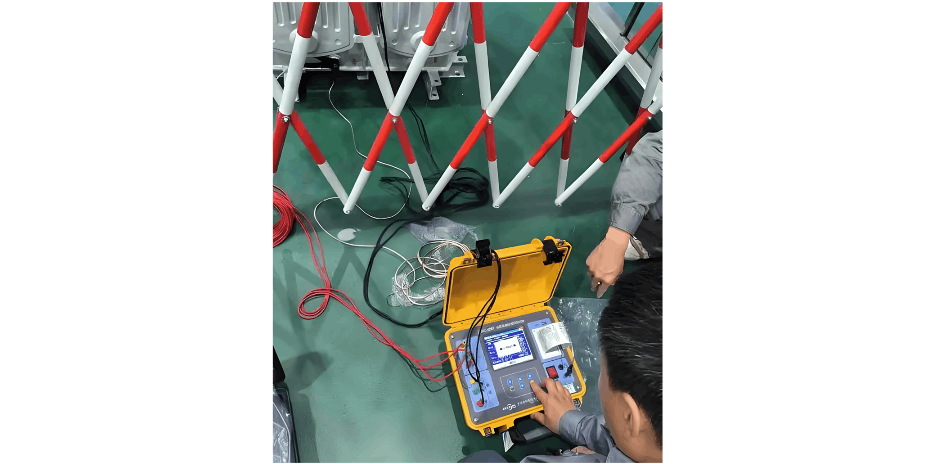

This test usually requires a standard CT and an error tester, so it’s high-precision work — no room for mistakes.

7. Test 6: Excitation Characteristic Test — How Well Does It Handle Fault Conditions?

This is especially important for protection-grade CTs.

By applying voltage to the secondary side and recording the current curve, we assess whether the core saturation characteristics meet design requirements.

In short:

  • If the excitation characteristic is too soft, the CT may saturate early during faults, causing protection failure;
  • If it’s too stiff, the excitation current might be too high, affecting stability.

So this is a key test for protection-class CTs.

8. Test 7: Sealing & Moisture Resistance Test — Can It Survive Outdoors?

Since it’s an outdoor CT, it has to face rain, humidity, and temperature changes.

We perform:

  • Water spray test: simulate heavy rain and check waterproof performance;
  • Sealing check: inspect flanges and cable entries for potential water ingress;
  • Temperature-humidity cycling: simulate extreme weather conditions to test long-term sealing.

If the seal isn’t tight, over time moisture builds up inside, oxidation happens, insulation drops — and trouble begins.

9. Test 8: Mechanical Strength Test — Is It Tough Enough?

Don’t think of a CT as just electronics — it also needs to survive transport, installation, wind, snow, and vibration.

We do:

  • Vibration test: simulate transport and operational vibrations;
  • Impact test: simulate accidental bumps or wind pressure;
  • Thermal shock test: see if materials crack under rapid temperature changes.

Especially for composite-insulated CTs, this test is crucial.

10. Final Thoughts

As someone who’s spent 8 years in CT testing, here’s what I’ve learned:

“A qualified outdoor CT doesn’t just roll off the production line — it must go through layers of inspections and rigorous testing.”

From visual checks to withstand voltage, from ratio and polarity to error analysis, from sealing to mechanical strength — every step matters.

If you're a manufacturer, don’t skip any test just to save time. If you're a buyer, never buy CTs without complete test reports.

After all, power system safety is no joke — a small CT carries a big responsibility.

If you ever run into problems during testing or want to know more about real-world CT testing practices, feel free to reach out. I’d love to share more hands-on experience and tips.

Here’s hoping every outdoor current transformer runs safely and accurately, guarding the grid day and night!

— Oliver

Oliver Watts

Hey! I'm Oliver Watts, an electrical engineer in Inspection and Testing. With years of hands - on experience, I ensure electrical systems meet top safety and performance standards. Using advanced gear, I conduct diverse tests, easily spotting issues in both large - scale industrial and small - scale commercial setups. I love teaming up, sharing knowledge, and keeping up with industry regs. Also, I'm skilled at data analysis with software. If you're into electrical inspection or just want to chat engineering, reach out. Let's connect and explore!
