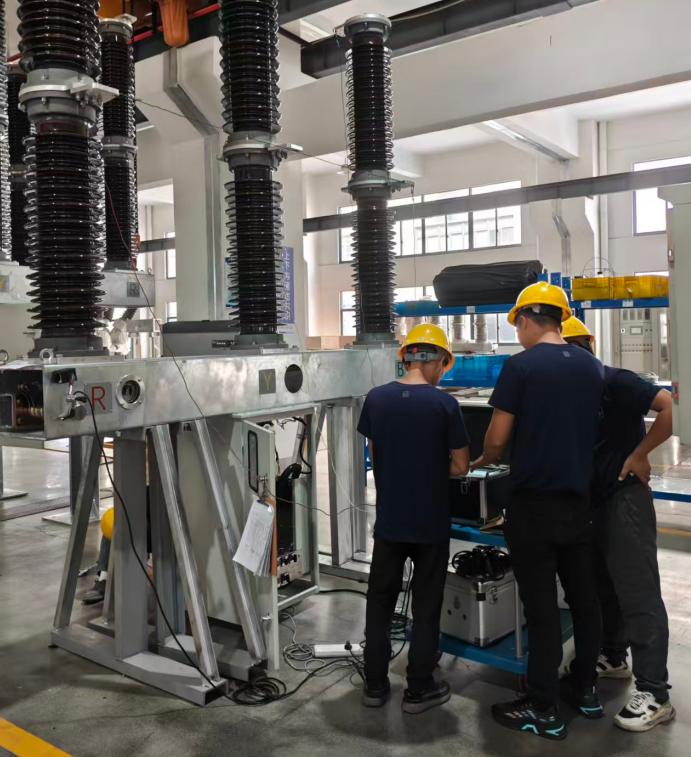

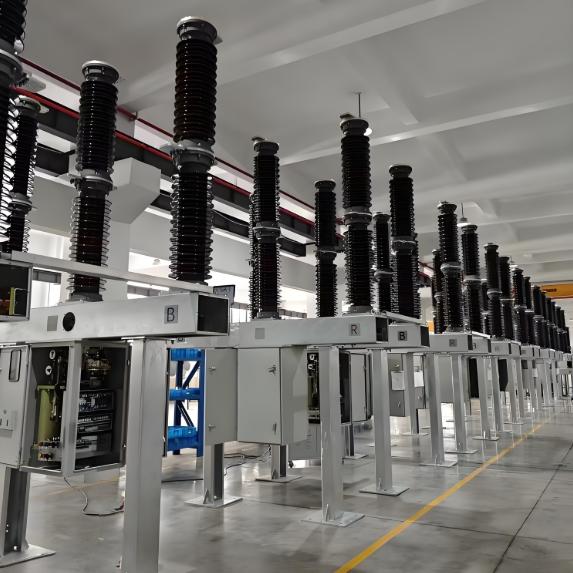

RHB type Live tank SF6 gas circuit breaker
Key attributes
| Brand | ROCKWILL |
| Model NO. | RHB type Live tank SF6 gas circuit breaker |
| Rated voltage | 363kV |
| Rated frequency | 50/60Hz |
| Series | RHB |
Product descriptions from the supplier
Description ：
The RHB type Live tank SF6 gas circuit breaker is specifically designed for outdoor high - voltage environments. Utilizing self - blast arc - extinguishing technology and taking advantage of the excellent insulating and arc - extinguishing properties of SF₆ gas, it can quickly quench arcs, ensuring the efficient interruption of fault currents. With a compact and robust structure, it can adapt to various harsh weather conditions. It boasts high reliability and a long service life, which can significantly reduce maintenance frequency, making it a key device for enhancing the safety and stability of power systems.
Main function introduction:
-
SF6 gas is used for arc extinguishing
-
Monitor with a pointer-type density relay
-
Adopt the self-blast arc extinguishing principle
-
Adopt pointer-type density relays for pressure and density monitoring
Technology parameters:
RHB-52
RHB-72.5
RHB-123/145
RHB-170
RHB-252
RHB-363
Device structure:
RHB-52
RHB-72.5
RHB-123/145
RHB-170
RHB-252
RHB-363
