Pro T insulated pipe busway

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	Pro T insulated pipe busway
Rated voltage	40.5kV
Rated normal current	6300A
Rated frequency	50/60Hz
alloy code	LMY
Series	Pro T Series

Product Detail

Overview

12 related patents designed. Prevent the introduction of external impurities between the main insulation layer and the inner shield, as well as the outer shield.

To prevent accidental damage to internal shielding and primary insulation during manufacturing.

The internal and external shielding is closely combined with the main insulation layer, which improves the performance of partial discharge resistance and in the fight against wear.

The insulation material is made of high quality ethylene propylene diene rubber (EPDM), which not only has excellent electrical insulation performance and corona resistance, but also has aging resistance and corrosion resistance.

EPDM (ethylene propylene diene ternary rubber) adding with a variety of compounding agents, after being thoroughly mixed, extruded on a tubular conductor, and then heated and vulcanized.

technology parameters

Conductor Type	TMY/LMY
Rated Current	630A--6300A
Frequency	50/60Hz
Rated Voltage	3.6-40.5KV
IP	IP65
Product Series	Pro T
Design Criteria	DL 1658 AND GB/T 8349

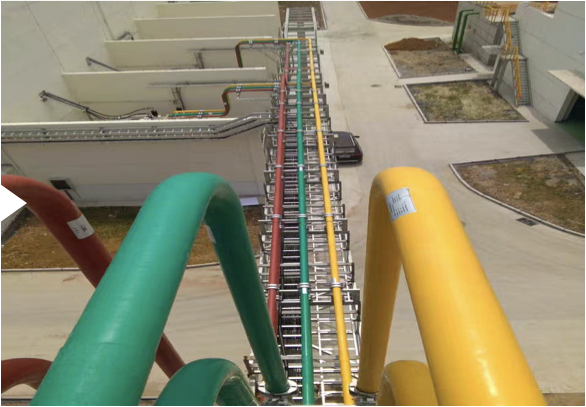

Application
