Low Loss AC Input Reactor

Product Introduction

Input reactors orrer overload to line power supply and reduce harmonic distortion arising from frequency inverters,also improve the input supply,reduce ultraharmonic and suppress the surge caused by frequency inverters to the power supply units.

Product Application

Particularly apply to the following cases:

• Multiple frequency inverters in close parallel connection

• Other devices produce interference to line power supply.(disturbance,, over voltage

• Nonbalance among phases of line power supply.( 1.8% over than of the rated voltage

• Massive frequency inverters installed on the same line

• Reduce cos∮and correct the overload of capacitor,in case the power factor correction devices are installed in system

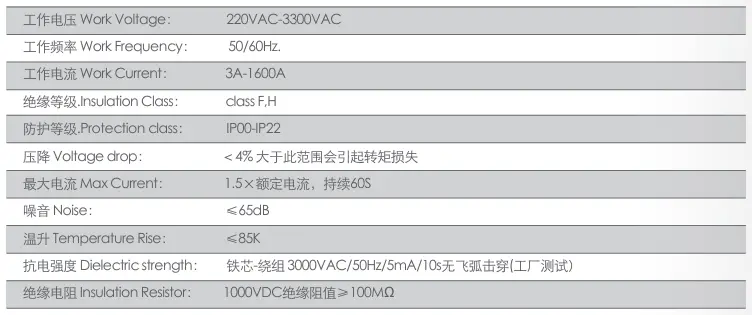

 Technical Speci cations

Operation Environment:-10~+45 ℃,rated value wont′t lower,when higer than 55℃,and every 1℃ ,thecurrent will step down 2%, Under seal level 2000m
Running ambient temperature -25 ℃ ~ +45 ℃, comparative moisture not over 90%. No hazardous gas,no in ammables and explosives.With well-ventilated condition,ventilation devices shall be mounted if installatioh in panels.

Applicable Standards

• IEC289: 1987 Reactor

• GB10229-88 Reactor (eqvIEC289: 1987)

• JB9644-1999 Reactors used for semiconductor electrical driving

 Product Size

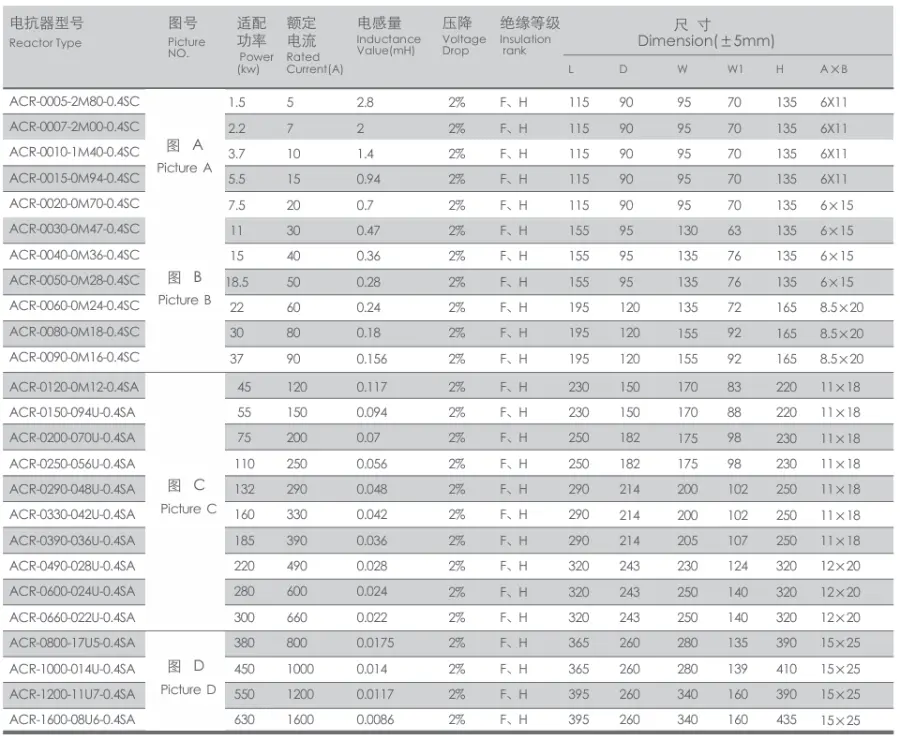

380V AC  Input Reactor

Remark：Dimension can be customization

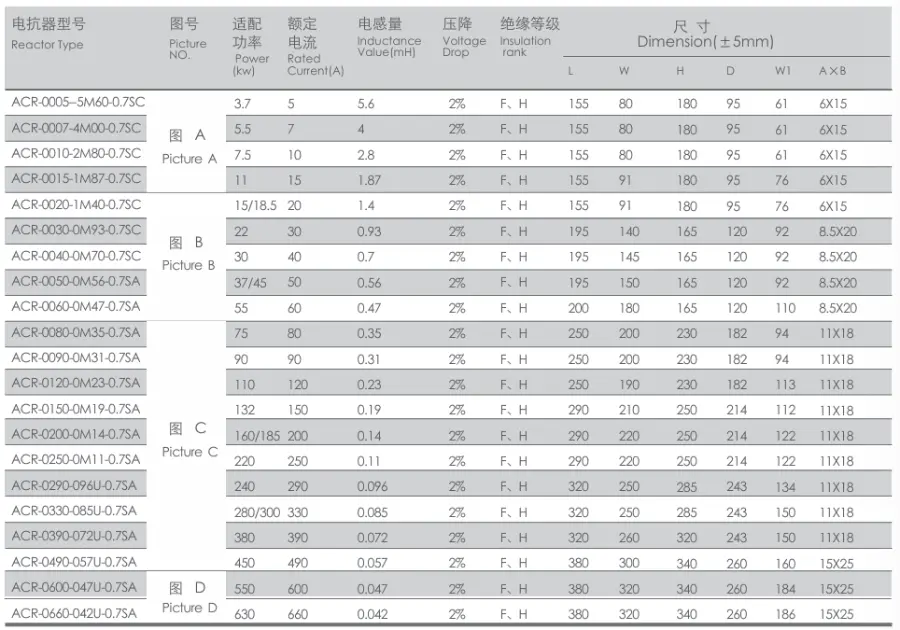

690V AC Input Reactor

Remark：Dimension can be customization
